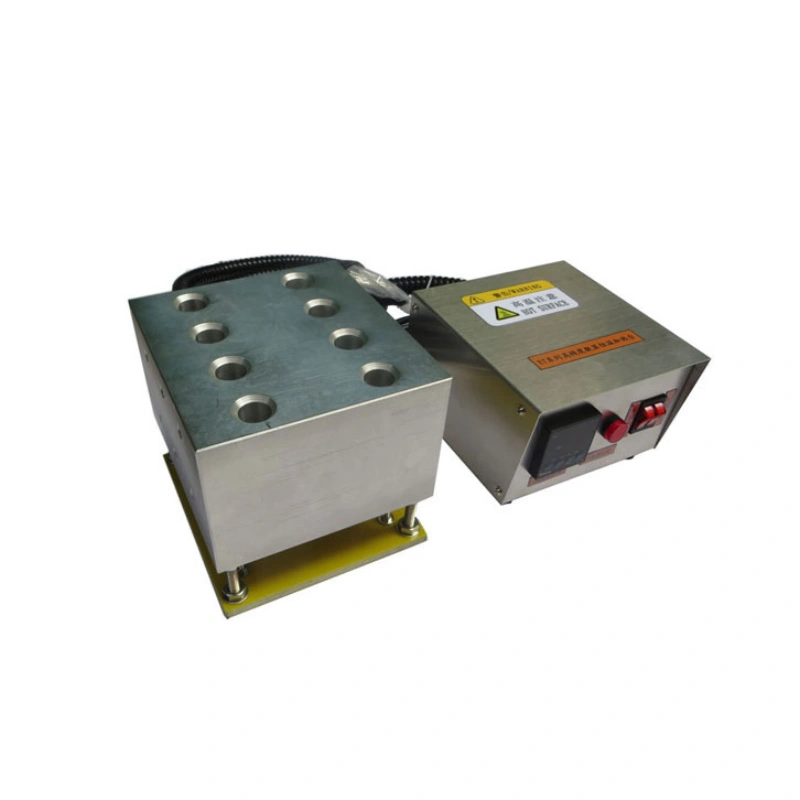

Multi-hole heating plates are divided into integrated constant temperature heating platforms and split constant temperature heating platforms. We are a professional heating platform manufacturer with fully independent R&D and production, not a trading reseller. Direct factory supply guarantees stable quality and reliable after-sales service. As a long-established professional manufacturer with top-tier product quality, heating plates rely fundamentally on workmanship and components — you get what you pay for. Our self-designed multi-hole heating plates deliver outstanding temperature uniformity, fitted with premium grade accessories: Yudian temperature controllers (the best domestic brand), control cabinets made of genuine SUS304 stainless steel (never 201 stainless steel). Stable quality that does not interrupt production is our core advantage.

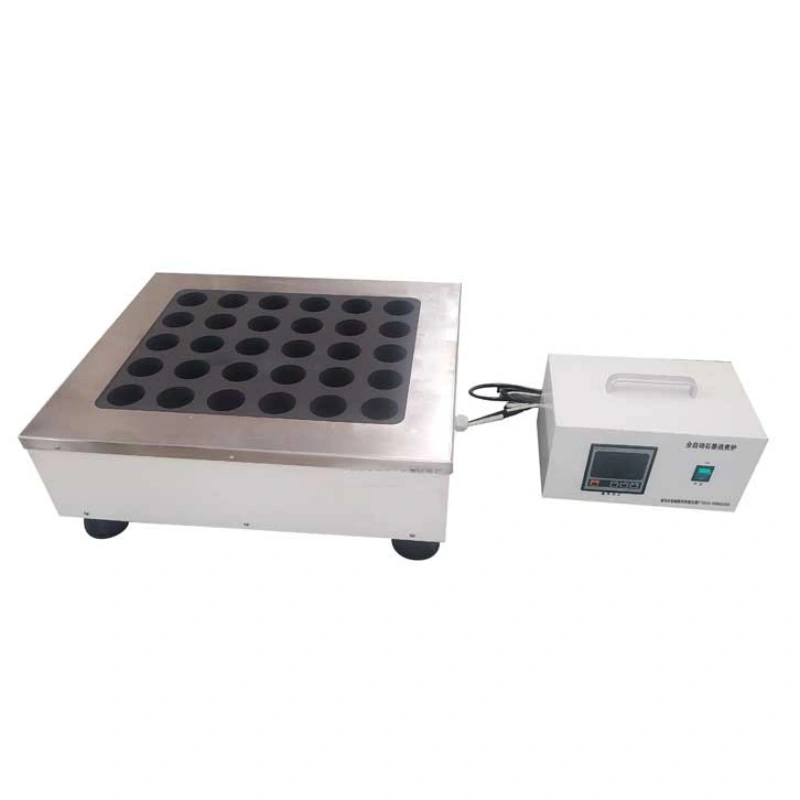

The dry constant temperature metal bath is a microcomputer-controlled heating device using high-purity aluminum as heat conductor to replace traditional water baths. It features high temperature control precision and excellent parallelism of sample preparation, widely used for sample storage & reaction, DNA amplification, pre-denaturation for electrophoresis, serum coagulation and other experiments.

1. Original intelligent digital PID temperature controller, high precision, safe, simple and intuitive operation.
2. High-quality solid state SSR relay with service life 100 times longer than ordinary contact relays.
3. Multiple premium pure metal heating tubes, convenient rapid maintenance and low failure rate.
4. Solid aluminum alloy working surface with high thermal conductivity for fast, even heating.
5. Full cabinet housing made of imported SUS304 stainless steel; no paint peeling or rust under normal laboratory conditions.
6. Interchangeable modular blocks for easy cleaning and disinfection.
7. Built-in over-temperature protection for the dry thermostat.
8. Temperature deviation calibration function.
9. Automatic fault detection with buzzer alarm.
10. LED display showing real-time temperature and countdown timer simultaneously.
11. Wide range of interchangeable heating modules compatible with various test tubes, easy to remove, clean and sterilize.

1. Available Models: ET100-1 (12-well), ET100-2 (24-well)
2. Temperature control range: Ambient +5℃ ~ 150℃
3. Heat-up time: ≤30 min (20℃ to 150℃)
4. Temperature stability (100~150℃): ≤±1℃
5. Temperature stability (40~100℃): ≤±0.5℃
6. Module well-to-well difference @40℃: 0.3℃
7. Module overall temperature uniformity: ≤±0.5℃
8. Display resolution: 0.1℃
9. Max timing duration: 99 hours 59 minutes

Modular design for easy maintenance. SUS304 stainless steel housing, 20mm thick solid CNC machined aluminum heating block, original Yudian temperature controller, Taiwan imported heating tubes,阳明 SSR relays, all screws stainless steel. As direct manufacturer, we adopt top-grade industry components. 12 years of production experience delivers stable quality supporting 24-hour continuous operation.

1. LED industry: Aluminum substrate soldering, LED chip welding & rework repair
2. Display repair: LCD & mobile screen maintenance, flexible cable removal, touch screen adhesive stripping
3. Laboratory heating equipment & thermal testing, essential instrument for biology, genetics, medical, environmental, biochemistry, analytical and academic labs
4. Industrial baking & drying of constant-temperature test samples
5. Electronics manufacturing: Component preheating, SMD desoldering and rework
6. Constant temperature curing for adhesive dispensing & encapsulation across all electronics sectors
7. Mold factory core preheating

Though both belong to electric heating plates, flat heating plates and air duct heating plates adopt different working principles, characteristics and applicable scenarios.

Flat Heating Plate

Consists of heating elements, digital temperature controllers and power control cabinets for long-term stable temperature-controlled heating of various equipment. Featuring advanced heating structure, premium heating materials and precise temperature regulation, it saves energy with even surface load, large heating area, high reliability and long service life.

• Cast aluminum integrated flat heating plate: High mechanical strength, easy installation, excellent insulation, uniform heat output, high thermal efficiency and long service life.

• DYB simple laminated heating plate: Precision fabricated with nichrome wire, mica board and stainless steel sheet, simple structure, good insulation and easy mounting.

Widely used for heat preservation of dust hoppers, dewatering silos, air conveying chutes and scraper conveyors in power plant dust removal systems. Also applicable to petroleum, chemical, cement, metallurgy, machinery and other industries.

Air Duct Heating Plate

Designed to heat air flow up to maximum 850℃. Compatible with all gas media, producing dry, non-conductive, non-flammable, non-explosive, non-corrosive clean hot air with rapid controllable temperature rise. Widely used in aerospace, ordnance, chemical industry and university research labs, especially suitable for automatic temperature control and large-flow high-temperature combined test systems & auxiliary equipment.

Summary: Flat heating plates deliver longer service life; air duct heating plates support much higher working temperatures. Customers can select the suitable model according to actual production & experimental requirements.
