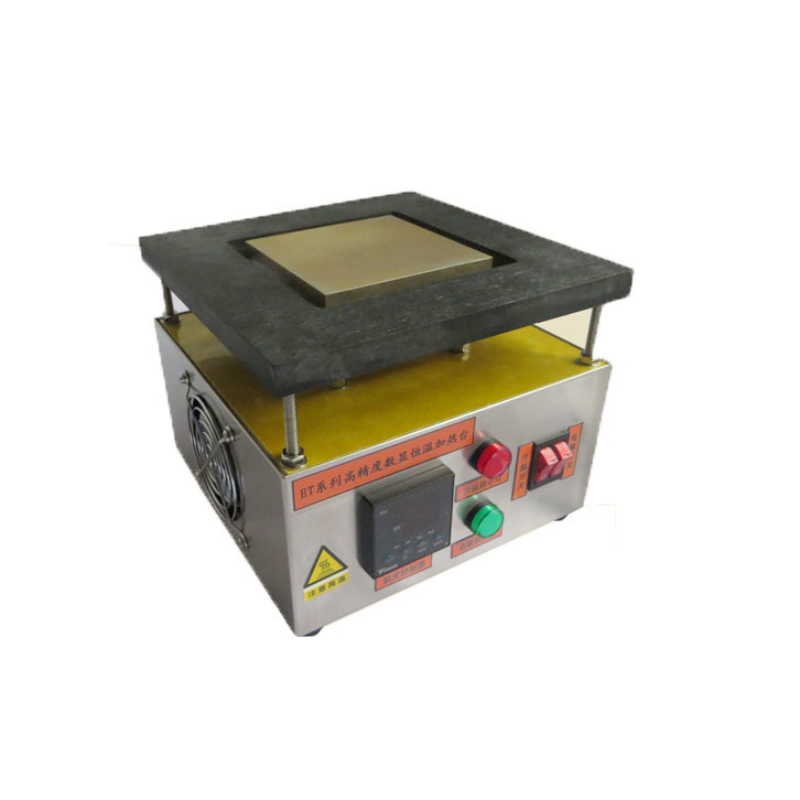

Laboratory High Temperature Hot Plate (0-500℃ / 0-800℃)
Professional manufacturer of laboratory high-temperature hot plates. 500℃ digital display heating plate, customizable as per customer requirements. Stainless steel hot plates are widely used for sample baking, drying, and temperature tests – essential equipment for biological, genetic, medical, environmental, and biochemical laboratories. Materials include aluminum alloy, copper, stainless steel, and ceramic. Direct factory supply, no trading company, reliable quality and service.
Company Introduction
We are a professional industrial heating equipment manufacturer integrating R&D, production and sales, focusing on constant temperature heating platforms, high-temperature hot plates, BGA rework heating tables and customized heating modules for more than 10 years. Our factory has complete production equipment, mature PID temperature control technology and strict quality inspection system. We support non-standard size, temperature range, heating material, power and control mode customization to meet laboratory testing, electronic maintenance, new energy, semiconductor, LED packaging, PCB processing and other industrial scenario demands. Products have passed safety testing, exported to Southeast Asia, Europe, North America and other regions, with stable delivery cycle and perfect after-sales guarantee system.
Product Parameters (500℃ Digital Hot Plate)
- Platform Size: 100mm × 100mm × 20mm
- Rated Voltage: AC220-230V 50/60Hz
- Max Power: 500W
- Outer Dimensions: 200mm × 200mm × 165mm
- Temperature Range: 0-500℃ adjustable
Customizable Heating Plate Type Specification Table
| Heating Plate Material | Max Temperature | Feature Advantage | Applicable Scenarios |
|---|---|---|---|
| Aluminum Alloy | 0-500℃ | Fast heat conduction, uniform temperature, cost-effective, anti-deformation | PCB preheating, LED maintenance, laboratory conventional drying |
| Stainless Steel | 0-450℃ | Corrosion resistance, easy to clean, acid and alkali resistant | Chemical laboratory sample heating, corrosive reagent experiment |
| Copper Plate | 0-550℃ | Ultra-fast heat transfer, extremely uniform temperature difference | High precision constant temperature test, chip packaging preheating |
| Ceramic Heating Plate | 0-800℃ | High temperature resistant, insulated, anti-corrosion, safe and stable | High temperature laboratory experiment, high temperature material aging test |
Product Features
- High-performance MCU with advanced PID intelligent temperature control and high-precision sensing for accurate temperature control.
- Unique room temperature calibration function to improve measurement accuracy.
- Automatic parameter memory function for easy operation.
- Intelligent fault detection for stable and reliable performance.
- Two working modes: timer mode and continuous mode.
- Imported high-quality silicon controlled rectifier (SCR): no contact, fast response, precise control, low noise.
- High-quality aluminum alloy hot plate: high thermal conductivity, fast heating, uniform temperature, no deformation at high temperature.
- Bottom heating design, ideal for LED aluminum substrate soldering & repair, protecting LED beads.
- Wide applications: PCB preheating, soldering, glue curing, mold preheating, industrial heating, laboratory drying & testing.
- User-friendly interface, easy to operate.
Operating Instructions & Maintenance
- High temperature operation – be careful to avoid burns.
- Keep the plate clean; regularly clean with anhydrous alcohol.
- Remove molten solder residue when melted; do not scrape with blades.
- Clean flux residue with special cleaner when the machine is cool.
- Disconnect power when not in use for a long time.
Warranty & Service
- 1-year whole machine warranty, lifetime maintenance service.
- Factory-priced spare parts supplied for a long time.
- Online technical support & consulting service.
Declaration: If any differences exist between this manual and the actual product, the actual product shall prevail.
