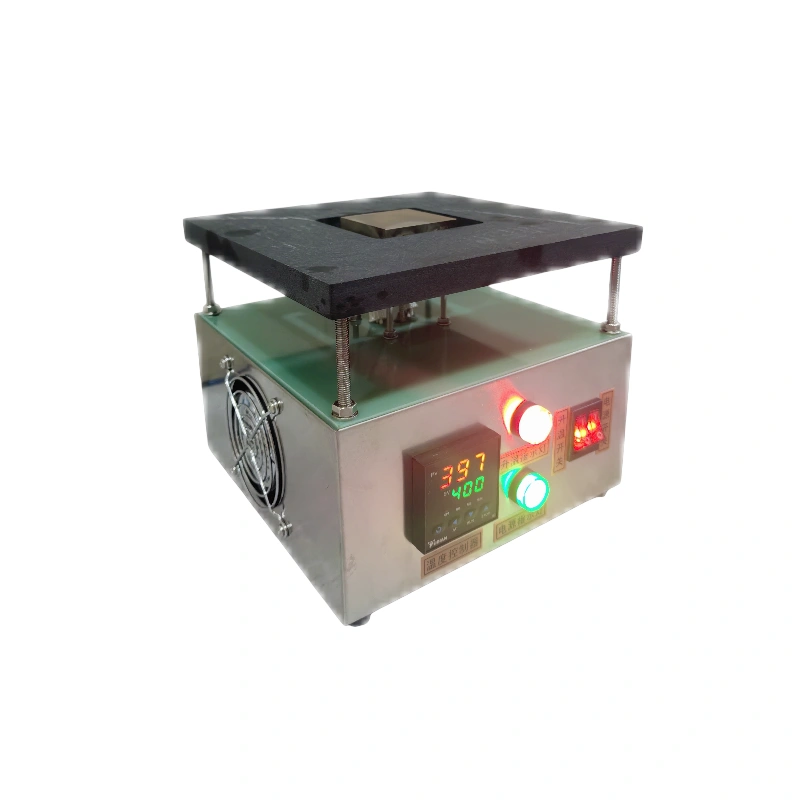

500℃ High Temperature Digital Display Heating Plate

Made of high-precision custom copper plate with high thermal conductivity, fast heating, and uniform temperature distribution. Built-in multiple high-quality stainless steel heating tubes with PID automatic Temperature Digital Display Heating Plate constant temperature system for intelligent control, longer service life, uniform heat transfer, high efficiency, and low failure rate.

I. Product Features

High-precision intelligent digital temperature controller with advanced AI PID algorithm, auto-tuning (AT) function, no overshoot, high accuracy, safe and simple operation.
High-quality solid state relay (SSR), service life is 100 times longer than ordinary contact relays.
Built-in high-grade stainless steel heating tubes + PID constant temperature system, stable performance, low failure rate.
High-precision copper heating plate: fast heating, uniform temperature, high thermal efficiency.
Body shell: SUS304 stainless steel (rust-free); optional cold-rolled steel with high-temperature paint.
Built-in high-precision K-type thermocouple, precise temperature control, energy saving, easy maintenance.

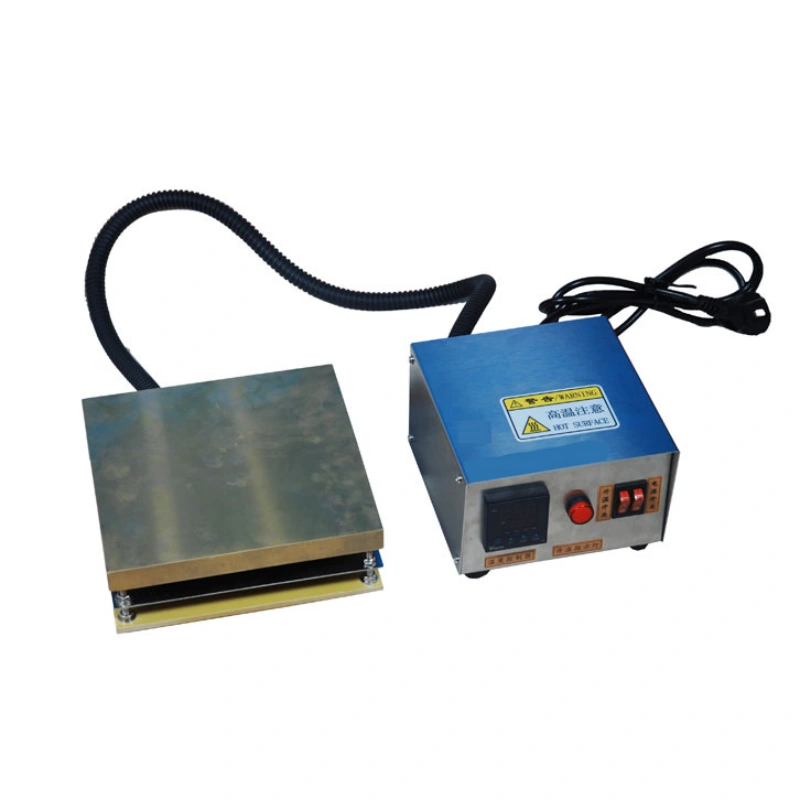

High-Temperature Copper Plate Programmable Heating Plate

II. Applications

Laboratory sample drying, baking, temperature testing
LED aluminum substrate soldering, PCB preheating, SMD repair
Constant temperature heating for various industrial products
SMT components rework, BGA rework, mobile phone screen disassembly

Stainless Steel Hot Plate — ET-SS Series

Model No.	ET-2020-SS	ET-3020-SS	ET-4030-SS	ET-6040-SS
Display Mode	LED Dual Digital Display	LED Dual Digital Display	LED Dual Digital Display	LED Dual Digital Display
Timer Range	0-9999min	0-9999min	0-9999min	0-9999min
Temperature Range	RT+50-400℃	RT+50-400℃	RT+50-400℃	RT+50-400℃
Temperature Accuracy	±1℃	±1℃	±1℃	±1℃
Heating Size	200×200mm	300×200mm	400×300mm	600×400mm
Plate Material	201 Stainless Steel	201 Stainless Steel	201 Stainless Steel	201 Stainless Steel
Plate Thickness	8mm	8mm	8mm	8mm
Max Load	50kg	50kg	50kg	50kg
Power Supply	AC220V/50Hz	AC220V/50Hz	AC220V/50Hz	AC220V/50Hz
Total Power	1.0KW	1.5KW	2.1KW	4.2KW
Net Weight	9kg	17kg	23kg	35kg
Overall Size(L×W×H)	200×200×175 mm	300×200×175 mm	400×300×175 mm	600×400×175 mm

Copper heating plate

III. QICEQUIPL Advantages

Precise temperature control, small fluctuation, excellent constant temperature effect
Intelligent power reduction after reaching set temperature → energy saving + longer tube life
High-end version: continuous operation for 10+ hours per day
Custom size & shape available

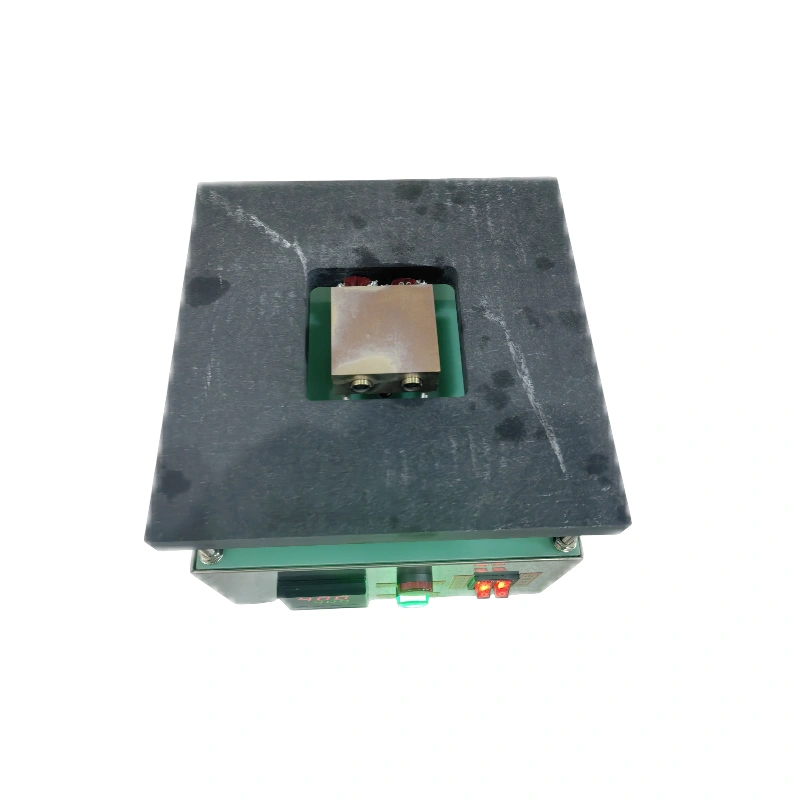

copper heat plate

IV. Custom Special Types

Programmable segment temperature control (heating/cooling rate control)
Vacuum adsorption heating platform
RS485 communication for PC remote control
Real-time power display function

V. Company Introduction – QICEQUIP

QICEQUIP is a high-tech enterprise integrating mechanical and electrical engineering. We specialize in R&D, production, sales, and service of SMT welding and electronic equipment. Our products include lead-free reflow ovens, wave soldering machines, solder dip machines, LED soldering ovens, heating plates, dispensers, and automated equipment.

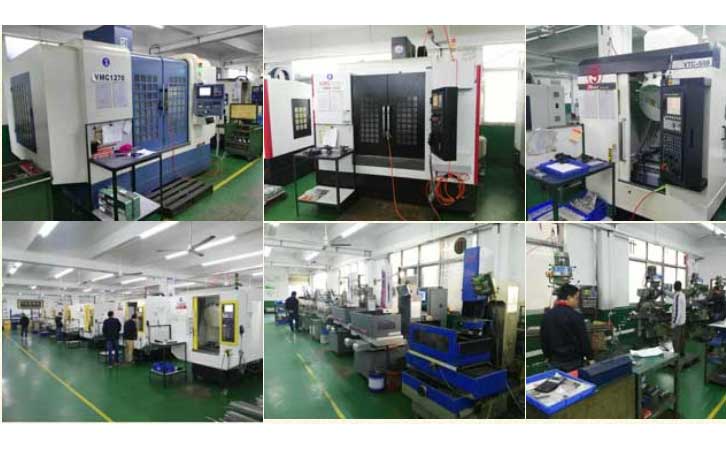

We provide custom non-standard equipment with stable quality and reliable performance. Our mission is innovation, customer satisfaction, and first-class service. Our Manufacturing Advantages

Workshop equipment: 5 CNC machines, 8 lathes, 11 milling machines, 20+ precision processing tools. All products are inspected by third-party measurement institutions. Professional design and assembly teams ensure high precision, low cost, short lead time, and top quality.
