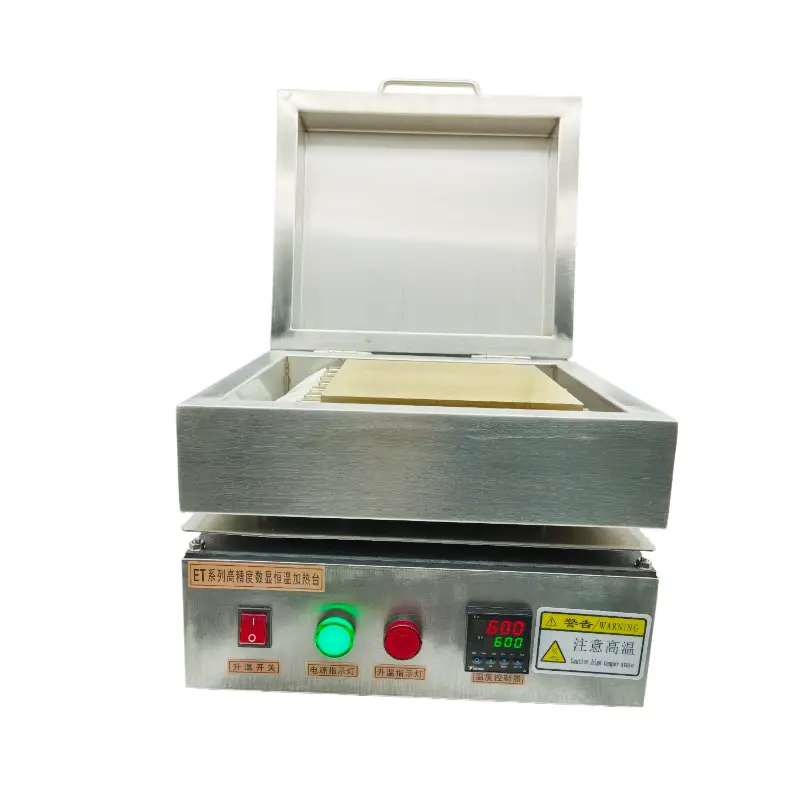

We independently manufacture constant-temperature stainless steel heating plates and adjustable temperature hot plates, supporting fully non-standard customization. Direct factory supply without intermediate traders, guaranteeing stable product quality and reliable after-sales service. Equipped with original Yudian AI PID digital intelligent temperature controller for high precision, safe, simple and intuitive operation; high-performance solid state relay (SSR) and multiple premium stainless steel heating tubes enable easy quick maintenance and ultra-low failure rate. The entire heating platen is made of solid pure aluminum with high thermal conductivity, fast heat-up and uniform heat distribution. The whole cabinet housing is fabricated from imported SUS304 stainless steel sheet, free of paint peeling and rust under normal working environments. Cooling fans and heat dissipation windows are integrated into the control system to avoid component overheating during long-time operation.

• Model No.: ET-360
• Power Supply: AC220V 50Hz
• Max Rated Power: 1500W
• Heating Surface Size: 360×250×20mm ±1mm
• Platen Material: 6061 Aluminum Alloy Plate
• Temperature Sensor: K-type Thermocouple
• Temperature Control Range: Ambient ~ 350℃
• Allowable Ambient Temperature: 0 ~ 40℃
• Temperature Stability Deviation: ±1~2%℃
• Overall Outer Dimension: 360(L) × 250(W) × 190(H) mm
• Net Weight: Approx. 9kg

Main Application Fields

Widely installed on plastic machinery, injection molds, cable extruders, alloy die casting machines, pipeline heating equipment, chemical, rubber, petroleum and other industrial facilities.

Cast aluminum heaters take tubular heating elements as heat sources, which are bent into target shapes and centrifugally cast with premium metal alloy housing into various shapes: circular, flat plate, right-angle, air-cooled, water-cooled and other special irregular forms. After precision machining, they can closely fit heated workpieces. The surface load of cast aluminum heaters can reach 1–3 W/cm², with maximum continuous working temperature ranging from 300℃ to 450℃.

A cast aluminum heater is an efficient uniformly distributed heating component made of high thermal conductivity alloy, eliminating hot spots and cold zones on contact surfaces for consistent temperature output. It features long service life, excellent thermal insulation, high mechanical strength, corrosion resistance and anti-electromagnetic interference performance. Adding thermal insulation layers on outer radiation surfaces and sintered far-infrared coating on inner heating surfaces can cut power consumption by up to 35%.

1. 1. Operating voltage shall not exceed 110% of rated value; relative humidity ≤95%, working environment free of explosive or corrosive gas.
2. 2. Wiring terminals must be arranged outside heating & insulation layers, with reliable equipment grounding. Avoid contact with corrosive media, explosive substances and water. Lead wires shall withstand long-term terminal temperature and heating load; do not over-tighten terminal screws to prevent thread damage.
3. 3. Store metal cast heaters in dry environment. If insulation resistance drops below 1 MΩ after long storage, bake inside a 200℃ oven for 5–6 hours to restore insulation performance, or energize with reduced voltage until resistance recovers.
4. 4. Securely fix the heater with full tight contact between effective heating area and target workpiece; dry firing without load is strictly prohibited. Clear surface dust and contaminants before use to avoid poor heat dissipation and shortened service life.
5. 5. Prevent moisture and pollutants from penetrating magnesium oxide insulation powder at heating tube terminals to eliminate electric leakage hazards.

1. ET-100: Heating plate 100×100×20mm ±1mm, Max power 400W, Net weight 3.5Kg
2. ET-200: Heating plate 200×200×20mm ±1mm, Max power 800W, Net weight 4.5Kg
3. ET-300: Heating plate 300×200×20mm ±1mm, Max power 1200W, Net weight 6Kg
4. ET-360: Heating plate 360×250×20mm ±1mm, Max power 1500W, Net weight 7.5Kg
5. ET-400: Heating plate 400×300×20mm ±1mm, Max power 2000W, Net weight 10Kg
6. ET-6030: Heating plate 600×300×20mm ±1mm, Max power 2800W, Net weight 18Kg
7. ET-6040: Heating plate 600×400×20mm ±1mm, Max power 3200W, Net weight 22Kg
8. ET-6050: Heating plate 600×500×20mm ±1mm, Max power 3500W, Net weight 25Kg
9. ET-8060: Heating plate 800×600×25mm ±1mm, Max power 8000W, Net weight 50Kg
10. ET-13030: Heating plate 1300×300×20mm ±1mm, Max power 4600W, Net weight 35Kg

We also accept all kinds of non-standard custom sizes with delivery cycle within 5–7 working days.
