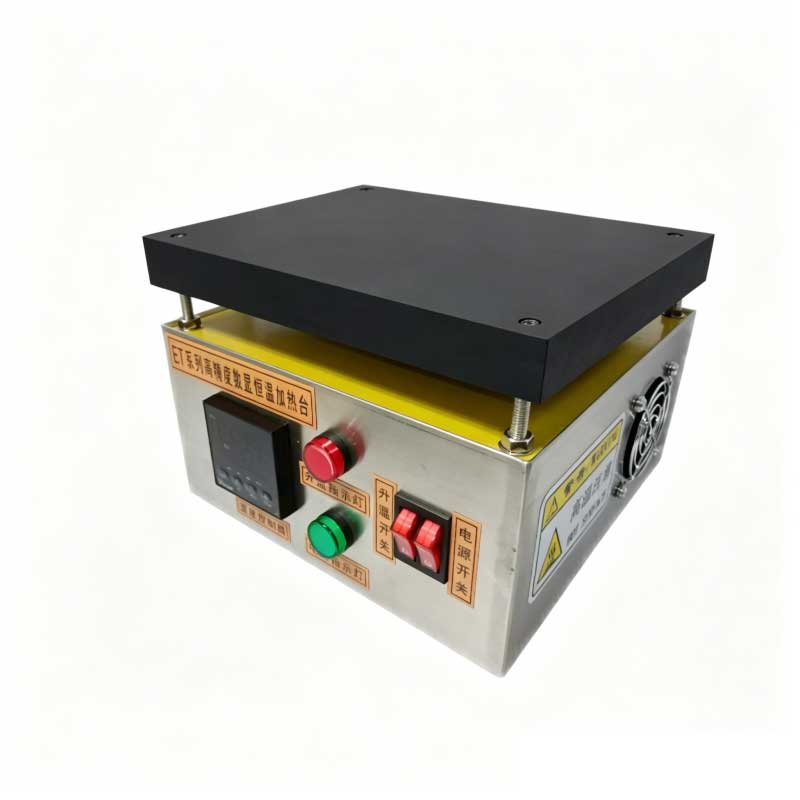

ET-200G 450℃ High Temperature Heating Plate
Microcomputer PID intelligent control, fast heating, high precision. Equipped with anti-scald edge and anti-stick coating on the surface for safer and more durable use. The heating plate is made of pure aluminum with high hardness, no deformation, high temperature resistance, and excellent thermal conductivity. The housing adopts 1mm imported SUS304 stainless steel, sturdy and rust-free.
I. Product Features (ETOOL)
- Imported high-quality energy adjustment switch
- Advanced ceramic fiber insulation material, good heat retention & lightweight
- Pure aluminum heating plate: high hardness, no deformation, high thermal conductivity, fast and uniform heating
- 1mm imported SUS304 stainless steel casing, sturdy, no paint peeling or rust
- Max working temperature up to 450℃
- PID intelligent digital temperature controller, high accuracy, easy and safe operation
- High-quality SSR solid state relay, service life 100 times longer than ordinary relays
- Multiple high-grade stainless steel heating tubes, easy maintenance, low failure rate
II. ET-200G Specifications
- Platform Size: 200mm × 200mm × 20mm
- Temperature Range: Ambient ~ 450℃
- Temperature Accuracy: ±1~2%℃
- Power: 1000W
- Voltage: AC220V 50Hz
- Outer Dimensions: 200mm × 200mm × 160mm
- Net Weight: 4.8Kg
III. Full Model Series Parameters
| Model | ET-3030 | ET-30F | ET-300F | ET-3030S | ET-3050S |
|---|---|---|---|---|---|
| Type | Economic (Iron) | Standard Anti-Corrosion | Digital Anti-Corrosion | Standard | Standard |
| Voltage | AC220V 50Hz | ||||
| Temp Range | RT+20~450℃ | RT+20~400℃ | ||||
| Power | 1200W | 1200W | 2400W | 1200W | 2400W |
| Platform Size | 300×300 | 300×300 | 300×500 | 300×300 | 300×500 |
indesit hot plate
Test conditions: no load, no strong magnetic field, no vibration, ambient 20℃, humidity 50%RH
IV. Applications
Widely used in laboratories, universities, petrochemical, medical, and environmental industries.
- Constant temperature heating for glue sealing & dispensing
- LED aluminum substrate soldering & repair
- Mold core preheating
- Sample baking, drying, temperature testing (biology, medical, biochemical, research labs)
About QICEQUIP
Professional manufacturer of constant temperature heating plates with 10+ years design & production experience. Precise temperature control, non-standard customization, modular design, reliable quality.
