Product Overview
Metal heating plate uses tubular heating elements as heat source. The elements are bent, molded, and cast with aluminum to form various shapes. It fits tightly with heated objects, heats uniformly, has excellent thermal conductivity and long service life. It is an ideal heater at home and abroad.
Insulation layer can be added to save about 20% energy. Mainly used for plastic machinery, ovens, water boilers, pipes, and non-corrosive liquid heating.
Technical Parameters
- Ambient Temp: -20℃ ~ +60℃, Relative Humidity < 80%
- Electric Strength: 1500V/50Hz AC, 1min no breakdown
- Leakage Current: < 0.5mA
- Insulation Resistance: > 2MΩ
- Grounding Resistance: < 0.1Ω
- Power Tolerance: +5% ~ -10%
- Surface Temp: up to 400℃
Product Features
- Surface Load: 2.5~4.5W/cm², Working Temp: 300~450℃
- High efficiency & uniform heating, excellent thermal conductivity
- Eliminates hot & cold spots on equipment surface
- Long life, good heat preservation, strong mechanical properties
- Corrosion resistance & anti-magnetic field
- Add insulation + far-infrared sintering saves 35% power
- Explosion-proof models: ExdⅡBT4, ExdⅡBT6, ExdeⅡCT6
Applications
- Plastic machinery, molds, cable machinery, die-casting machines
- Pipes, chemical industry, rubber, petroleum equipment
- Ovens, water boilers, industrial heating systems

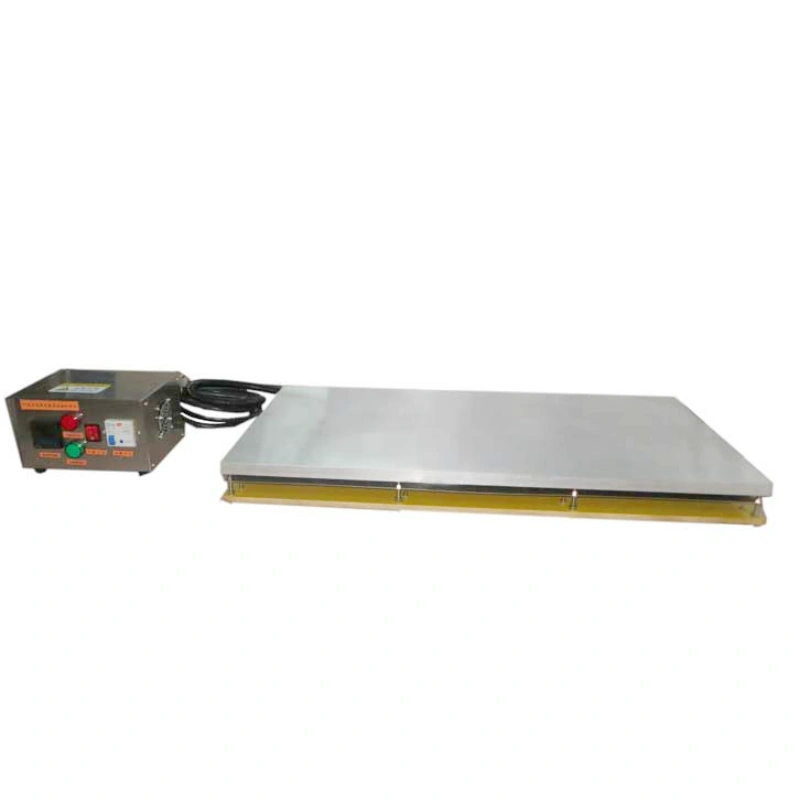

- Laboratory sample digestion & heating
Operation Instructions
- Store in dry place; if insulation < 1MΩ, bake at 200℃ for 5~6h to recover
- Working voltage ≤ 10% above rated voltage
- Wiring must be outside heating & insulation layers; shell must be grounded
Safety Notes & Maintenance
- Fix heater firmly; effective heating zone MUST contact heated body — NO dry burning
- Keep surface clean; remove dust/dirt to avoid overheating
- Avoid moisture & contamination at magnesium oxide pipe outlets
- Prevent contact with corrosive, explosive media or water
- Relative humidity ≤ 95%, no flammable/explosive environment
- Clean with common detergent; use fine sandpaper for stubborn dirt
Company & Service
Shenzhen Qichuang Intelligent Equipment Co., Ltd — 15+ years focused on electric heating equipment.

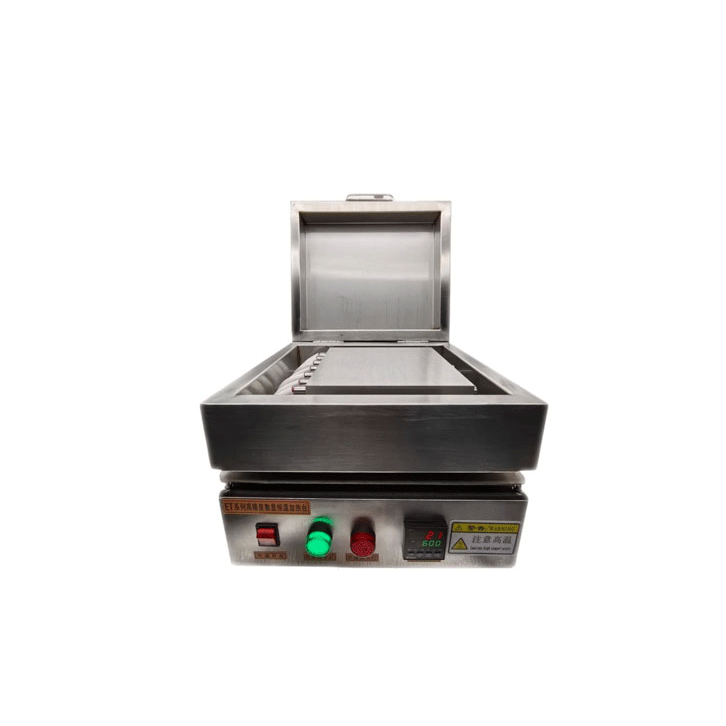

- Metal heating plate for digestion, stainless steel hot plate, industrial heater
- High quality, smooth surface, no sand holes
- Non-standard customization & drawing confirmation
- High-quality alloy wire for long service life
