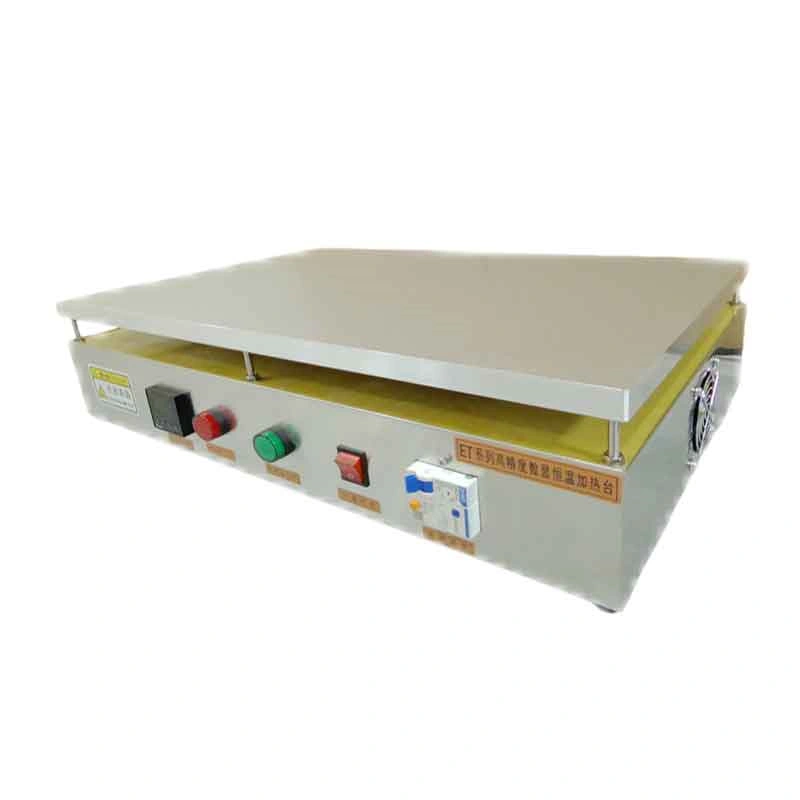

ETOOL brand constant temperature heating plate. This series includes Integrated Type (ordinary aluminum surface) and Split Type (aluminum surface), available in two models: A and F. Model F adopts a separate controller design, allowing the heating unit to work stably in strong corrosive environments.
1. Applications
Intelligent temperature control heating plate is widely used for sample heating, digestion, drying and chemical analysis in agriculture, forestry, environmental protection, geology, petroleum, chemical, food industries, universities and research institutes.
2. Product Features
1. Cast aluminum alloy structure, excellent thermal conductivity, high temperature uniformity, large effective heating area, fast heating rate. Sandblasted surface, elegant and durable.
2. High-quality stainless steel heating tubes integrated with the plate by one-time casting. Energy-saving, high efficiency, uniform heating, corrosion resistance, long service life and safe.

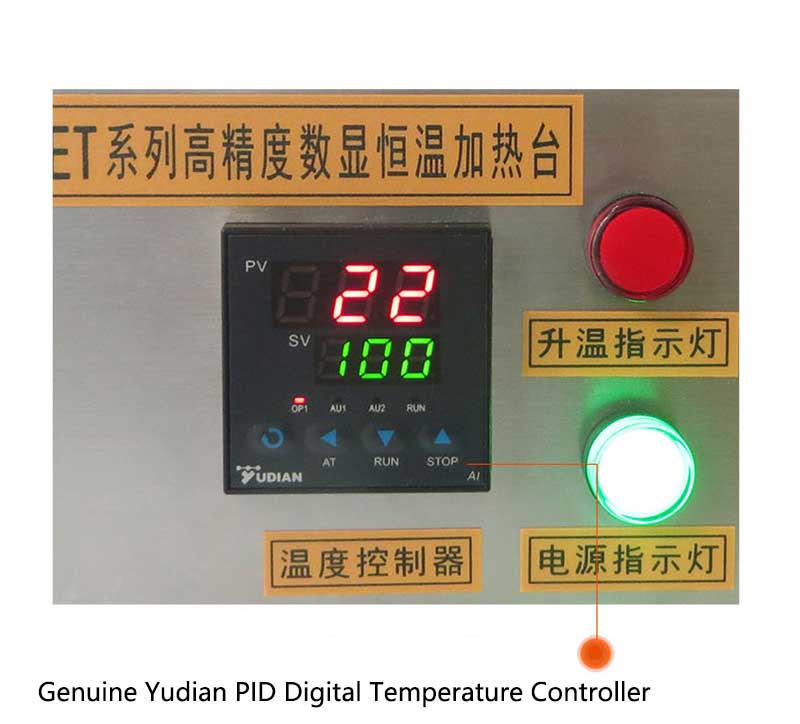

3. Original Yudian PID intelligent digital temperature control system, high precision, safe and simple operation.
4. High-quality SSR solid-state relay, 100x longer life than ordinary relays, fast response, low noise, anti-shock, anti-moisture, anti-corrosion.
5. Multiple stainless steel heating tubes with Ni-Cr heating wire, high thermal conductivity, easy maintenance, low failure rate.
6. Aluminum alloy panel: high thermal conductivity, fast heating, high efficiency (5-6 times than ordinary heaters), no deformation at high temperature.
7. SUS304 stainless steel housing, no paint peeling, no rust.
3. Technical Parameters (Split Type)
● Working Size: 400×600mm

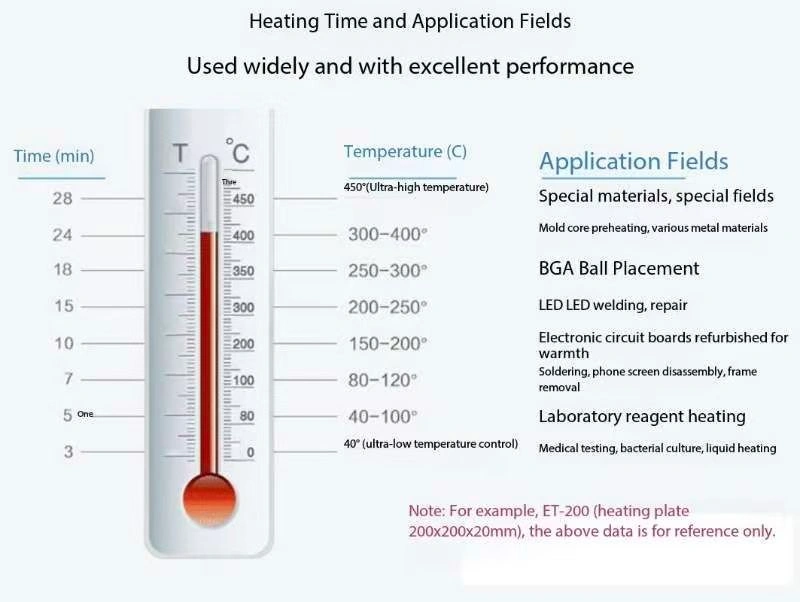

● Temperature Range: RT ~ 320℃ (High Temp: 450℃, Ultra High Temp: 500℃)
● Temperature Accuracy: ±2-3%℃
● Timer: 0-99H (optional, not included in standard version)
● Power: 3600W (Max)
● Voltage: AC220V
● Current: 18A
● Heating Element: Cast aluminum plate (Ni-Cr wire)
4. Standard Model List
| Model |
Heating Plate Size |
Max Power |
Net Weight |
| ET-50 |
50×50×150mm |
80W |
3.1kg |
| ET-70 |
70×70×150mm |
260W |
3.3kg |
| ET-100 |
100×100×150mm |
400W |
3.5kg |
| ET-1510 |
150×100×150mm |
500W |
3.8kg |
| ET-150 |
150×150×150mm |
500W |
4.2kg |
| ET-200 |
200×200×150mm |
800W |
4.5kg |
| ET-3020 |
300×200×150mm |
1200W |
6kg |
| ET-360 |
360×250×150mm |
1500W |
7.5kg |
| ET-400 |
400×300×150mm |
2000W |
10kg |
| ET-600 |
600×400×150mm |
3200W |
20kg |
To ensure long service life and performance, please contact us with your actual working environment before purchase!
