Product Introduction
Independently developed and manufactured, NOT a trading company. Factory direct sales ensure better quality and service.
Equipped with high-precision digital temperature controller from Yudian (Xiamen), with up to 36 months warranty. The heating system uses imported stainless steel heating tubes, service life is more than 2 times that of ordinary tubes. 450℃ high-temperature models use fully imported heating tubes.
The shell is made of SUS304 stainless steel, with much higher anti-rust performance than painted steel or SUS201.

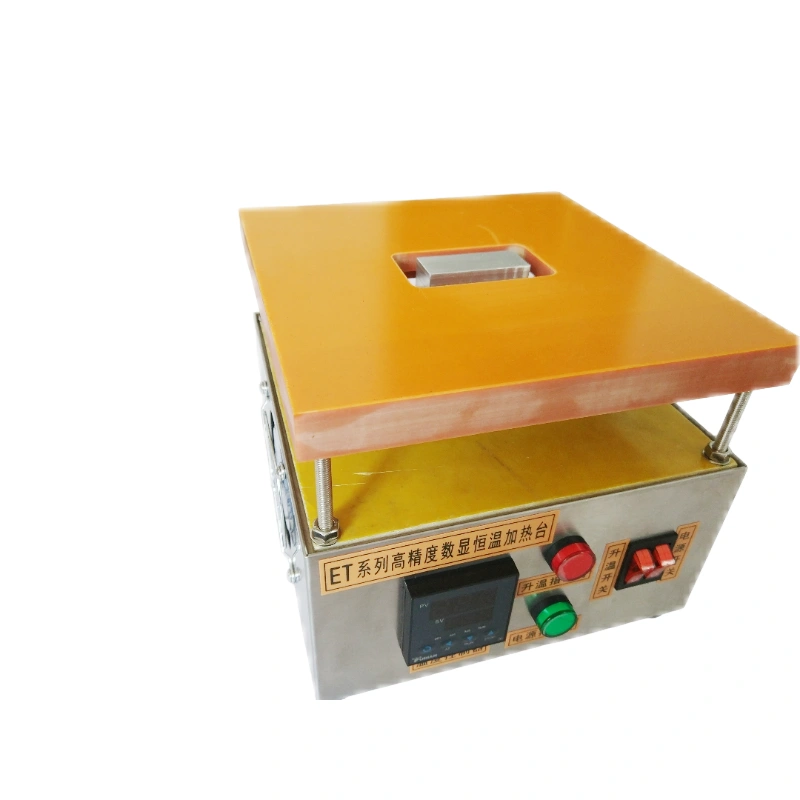

Technical Parameters (ET-2020)
Model: ET-2020
Heating Plate: 200×200×20mm ±1
Temperature Range: Room Temp ~ 350℃ (long-term use)
Control Accuracy: ±1~2%
Machine Size: 200×200×160mm
Power Supply: AC220V 50Hz
Max Power: 800W
Net Weight: 5Kg
Heating Plate: 200×200×20mm ±1
Temperature Range: Room Temp ~ 350℃ (long-term use)
Control Accuracy: ±1~2%
Machine Size: 200×200×160mm
Power Supply: AC220V 50Hz
Max Power: 800W
Net Weight: 5Kg
Product Types
- Integrated Type (H:150mm)
- Split Type (H:65mm)
- High Temp Type (RT~450℃)
- Ultra High Temp Type (RT~500℃)
- 850℃ Non-metallic Ceramic Heating Plate
Available Models (In Stock)
| Model | Plate Size (mm) | Power (W) | Weight (Kg) |
|---|---|---|---|
| ET-1010 | 100×100×20 | 400 | 3.5 |
| ET-2020 | 200×200×20 | 800 | 4.5 |
| ET-3020 | 300×200×20 | 1200 | 6 |
| ET-3625 | 360×250×20 | 1500 | 7.5 |
| ET-4030 | 400×300×20 | 1800 | 11 |
| ET-6020 | 600×200×20 | 2000 | 11 |
| ET-6030 | 600×300×20 | 3000 | 18 |
| ET-6040 | 600×400×20 | 3600 | 22 |
| ET-6050 | 600×500×20 | 4200 | 26 |
Non-standard customization is accepted, lead time: 3-7 working days.
Product Features
1. Original Yudian PID temperature controller, high precision, safe and easy operation.
2. High-quality SSR relay, 100x longer service life, fast response, no noise, anti-shock, anti-moisture, anti-corrosion.
3. Imported stainless steel heating tubes, nickel-chromium wire, high thermal conductivity, low failure rate.
4. Solid aluminum heating plate: fast heating, uniform temperature, 5-6x efficiency, no deformation at high temperature.
5. SUS304 stainless steel body, anti-rust and durable.
Applications
- 1. LED industry: Aluminum substrate & LED soldering & repair

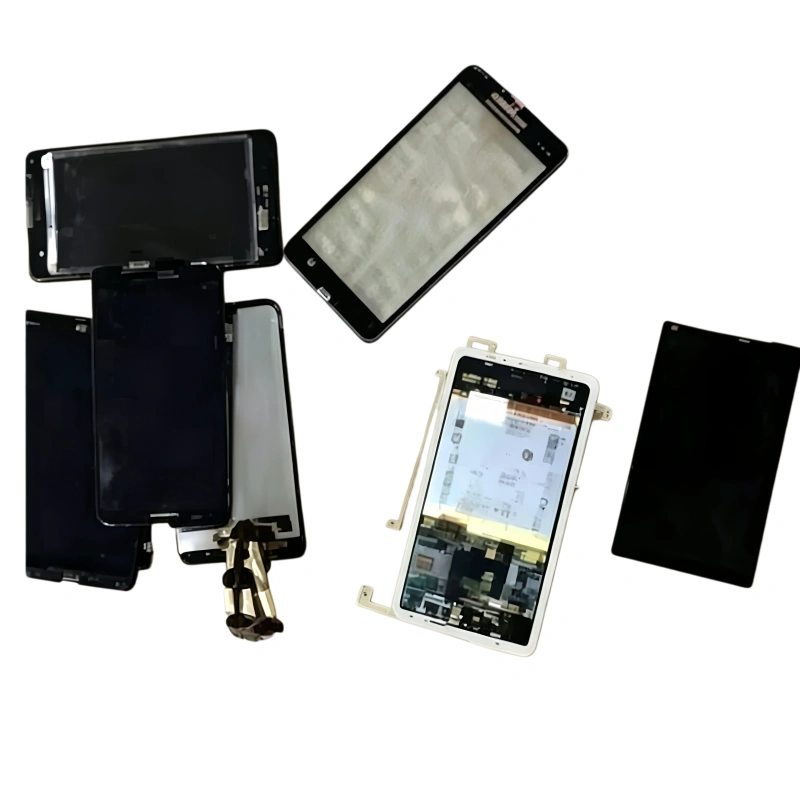

- 2. LCD & mobile screen repair, cable & glue removal
- 3. Laboratory heating equipment, temperature testing, biological & medical research
- 4. Industrial heating, baking & drying
- 5. Electronic components preheating & SMD rework
- 6. Glue sealing & dispensing heating
- 7. Mold core preheating
Warranty Policy
- Heating tube: 6 months warranty
- Whole machine: 1 year free repair (non-human damage)
- Free online technical support & free shipping during warranty
- Buyer pays shipping after 1-year warranty
LED Aluminum Substrate Soldering Process
Incoming Inspection → Solder Paste Printing → Mounting → Curing → Constant Temperature Soldering → Cleaning → Inspection → Rework

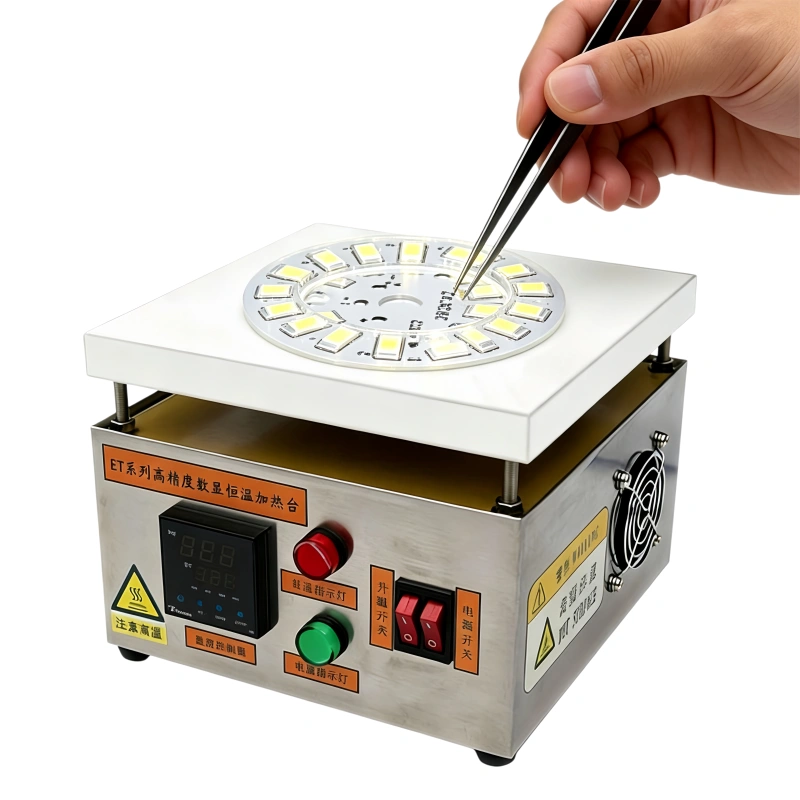

LED Chip Soldering Operation Steps
- Connect power and set the required temperature (e.g. Sn64Bi35Ag1: melting point 172℃, set to 220℃).
- When the display reaches the set value, wait a few minutes for temperature stability.
- Print solder paste on the aluminum substrate and place LED chips on it.
- Put the aluminum substrate on the heating plate.
- When the solder paste melts completely (30-50 seconds), remove the substrate. Cooling completes soldering.
Please refer to our operation video for detailed guidance.
