Product Introduction

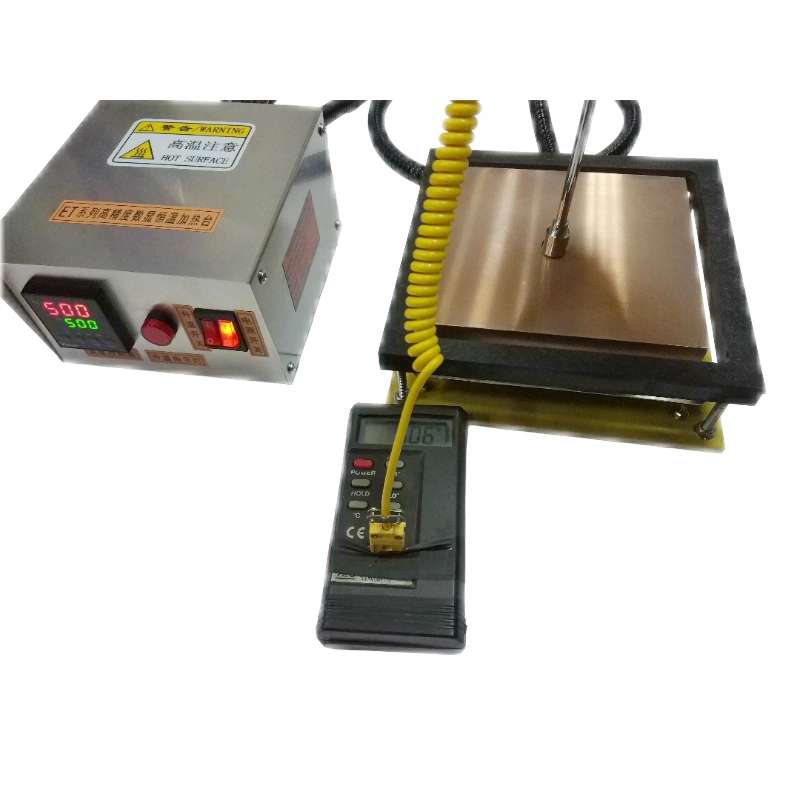

The heating rework station adopts high-precision digital temperature controller from Yudian (Xiamen), with up to 36 months warranty. The key heating element uses imported stainless steel heating tubes, service life is more than 2 times than ordinary tubes. 450℃ high-temperature models use fully imported heating tubes.
The shell is made of SUS304 stainless steel, which has much higher anti-rust performance than painted steel or SUS201 material.
Product Parameters (ET-100F)
Heating Plate: 100×100×20mm ±1
Temperature Range: Room Temperature ~ 350℃ (long-term working)
Control Accuracy: ±1~2%
Heating Unit Size: 200×200×65mm
Power Supply: AC220V 50Hz
Max Power: 400W
Net Weight: 5Kg
Product Features
Technical Specifications
- Power: AC220V 50Hz
- Temperature Range: RT ~ 350℃
- Accuracy: ±1~2%
- Types: Integrated (H=150mm), Split Type (H=65mm), High Temp (RT~450℃), Ultra High Temp (RT~500℃)
Standard Models (In Stock)
| Model | Plate Size (mm) | Power (W) | Weight (Kg) |
|---|---|---|---|
| ET-1010 | 100×100×20 | 400 | 3.5 |
| ET-2020 | 200×200×20 | 800 | 4.5 |
| ET-3020 | 300×200×20 | 1200 | 6 |
| ET-3625 | 360×250×20 | 1500 | 7.5 |
| ET-4030 | 400×300×20 | 1800 | 11 |
| ET-6020 | 600×200×20 | 2000 | 11 |
| ET-6030 | 600×300×20 | 3000 | 18 |
| ET-6040 | 600×400×20 | 3600 | 22 |
| ET-6050 | 600×500×20 | 4200 | 26 |
Non-standard customization is available, lead time: 3~7 working days.
Applications
- 1. LED industry: Aluminum substrate & LED soldering
- 2. LCD & mobile phone screen repair, cable & glue removal
- 3. Laboratory heating, temperature testing, biological & medical research
- 4. Industrial baking & drying
- 5. Electronic components preheating & SMD rework
- 6. Glue sealing & dispensing heating
- 7. Mold core preheating
Operation Method
- Connect power, turn on the power switch (green indicator ON).
- Turn on heating switch: red indicator ON = heating; flashing = constant temperature.
- After use: turn off heating switch first. Cool for 1 hour, then turn off power.
Important Notes
- Power supply: 220VAC, must use grounded socket and leakage protection.
- Do not open the case or modify wiring without professional guidance.
- Do not touch the heating plate directly to avoid burns.
- Cut off power when not in use for a long time.
- Do not block the air inlet (air cooling system).
Usage Instructions
- Ensure the power cord is firmly connected to avoid burning the socket.
- Temperature may overshoot 3~5℃ at startup, then stabilize automatically.
- White smoke/odor at first use is normal (residual oil on screws).
- Cracking sound is normal (thermal expansion of heating tubes).
- Do not modify internal parameters; we are not responsible for damage caused by improper setting.
Warranty Policy
- 1 year free repair for the whole machine (non-human damage); heating tube: 6 months warranty.
- Lifetime paid service after warranty period.
- Free shipping during warranty period; buyer pays for shipping after 1 year.
Company Promise
We are a professional heating platform manufacturer, 100% independent production, NOT a trading company. We promise: complete specifications, reliable quality, competitive price, national delivery.
