All integrated models: Height 150mmCompany Introduction
We are a professional manufacturer of heating platforms with 10 years of experience in LED heating stations, constant temperature heating stations and preheating stations. 100% independent design and production, NOT a trading company. Factory direct supply ensures reliable quality and service. Choose ETOOL: high precision, no temperature overshoot.
Applications
- 1. LED industry: Aluminum substrate & LED chip soldering and repair
- 2. LCD & mobile phone screen repair, cable disassembly, glue removal
- 3. Laboratory heating equipment, temperature testing for biology, medical, environmental and biochemical labs
- 4. Industrial baking, drying and constant temperature heating
- 5. Electronic components preheating, SMD rework and repair
Product Advantages
1. Original Yudian PID temperature controller, high precision, safe and easy operation.
2. High-quality SSR relay, 100x longer service life, fast response, no noise, anti-shock, anti-moisture, anti-corrosion.
3. Imported stainless steel heating tubes, nickel-chromium wire, high thermal conductivity, low failure rate.
4. Solid aluminum heating plate: fast heating, uniform temperature, 5-6x efficiency, no deformation at high temperature.
5. SUS304 stainless steel body, no paint peeling or rusting.
6. Built-in cooling fan and vents protect internal components from overheating.

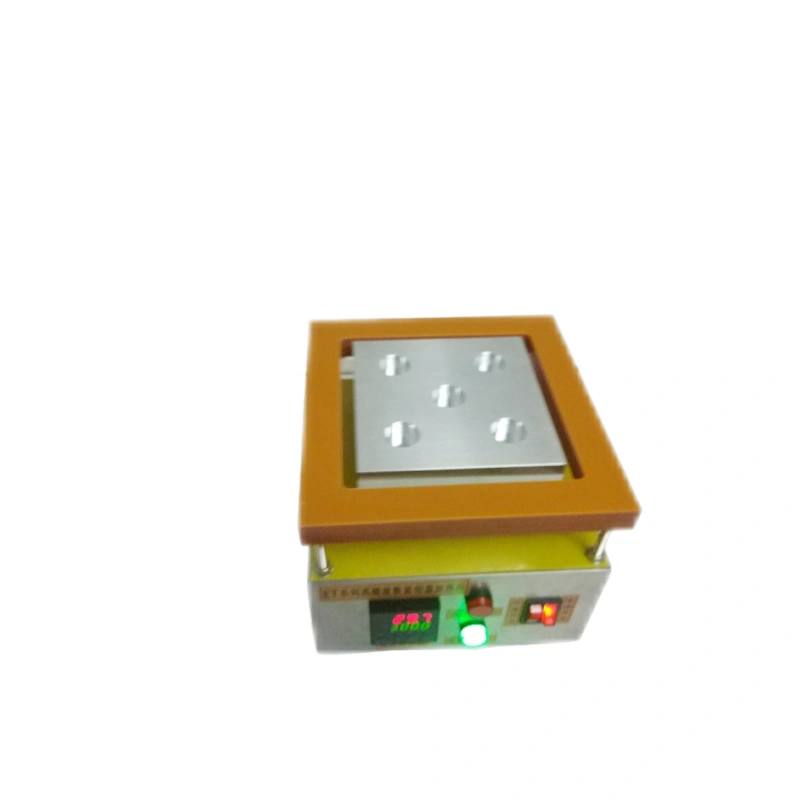

Technical Parameters (ET-150)
Model: ET-150
Heating Plate: 150×150×20mm ±1
Temperature Range: Room Temp ~ 350℃
Control Accuracy: ±1~2%
Machine Size: 200×200×150mm
Power Supply: AC220V 50Hz
Max Power: 600W
Net Weight: 5Kg
Heating Plate: 150×150×20mm ±1
Temperature Range: Room Temp ~ 350℃
Control Accuracy: ±1~2%
Machine Size: 200×200×150mm
Power Supply: AC220V 50Hz
Max Power: 600W
Net Weight: 5Kg
Standard Models (Integrated Type)
| Model | Plate Size (mm) | Power (W) | Weight (Kg) |
|---|---|---|---|
| ET-100 | 100×100×20 | 450 | 3.5 |
| ET-200 | 200×200×20 | 900 | 5 |
| ET-3020 | 300×200×20 | 1200 | 6.5 |
| ET-360 | 360×250×20 | 1600 | 7.5 |
| ET-400 | 400×300×20 | 2100 | 10 |
| ET-6040 | 600×400×20 | 4200 | 20 |
Model Naming Conventions
- F: Split type (Heating unit H:65mm, Control box:170×160×100mm)
- B: With anti-burn protection
- G: High temp type (up to 450℃)
- TG: Ultra high temp type (up to 500℃)
- 850: Ceramic heating plate (up to 850℃)
Standard models in stock. Custom models available, lead time 2-5 working days.
Operation Method
- Connect power, turn on the power switch (green indicator ON).
- Set temperature: Use < > ∨ ∧ buttons to adjust set value.
- Turn on heating switch (red indicator ON = heating; flashing = constant temperature).
- After use: Turn off heating switch first. Cool for 1 hour, then turn off power.
Safety Notes
- Use 220VAC grounded socket with leakage protection. Ensure power cord is firmly connected.
- Do not open case or modify wiring without professional guidance.
- Do not use near flammable or explosive materials.
- Do not touch heating plate directly — risk of burns!
- Cut off power when not in use or moving the machine.
- Do not block cooling vents.
- Unplug before replacing fuse.
Warranty
- 1 year free warranty for whole machine
- 6 months warranty for heating tubes
- Lifetime paid maintenance service
Troubleshooting
- No power: Check fuse and power socket.
- No heating: Heating element broken.
- Display “”orT””: Temperature sensor open circuit.
Packing List
- 1 x Heating Platform
- 1 x Power Cord
- 1 x User Manual
- 1 x Certificate
- 1 x Fuse (built-in)
Remarks
- Temperature may overshoot 3-5℃ at startup, then stabilize automatically.
- White smoke/odor at first use is normal (residual oil), will disappear after use.
- Cracking sound is normal (thermal expansion of heating tubes).
- 24h aging test before delivery. DO NOT modify internal parameters!
