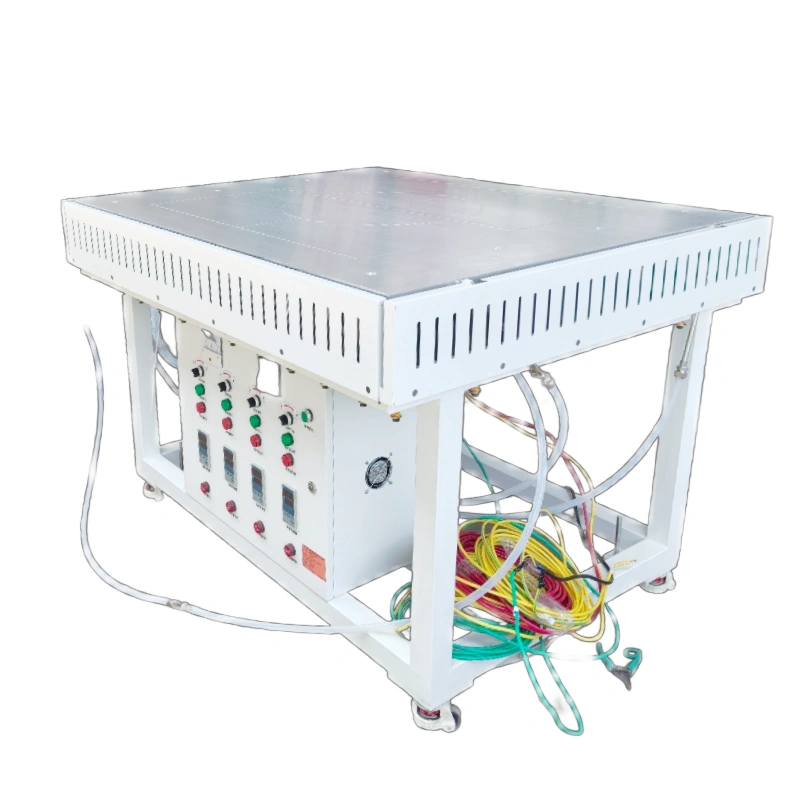

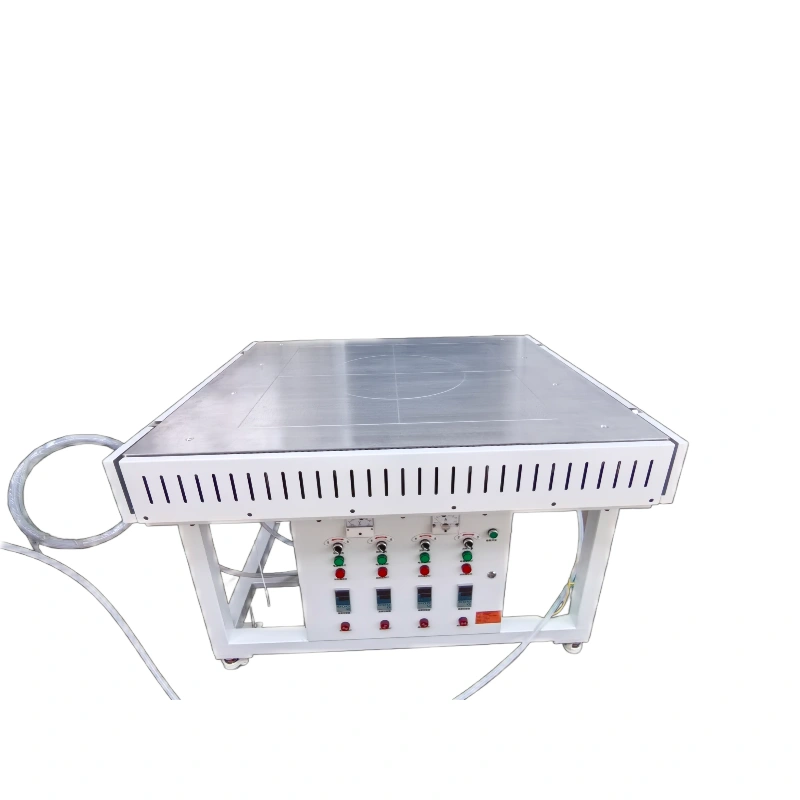

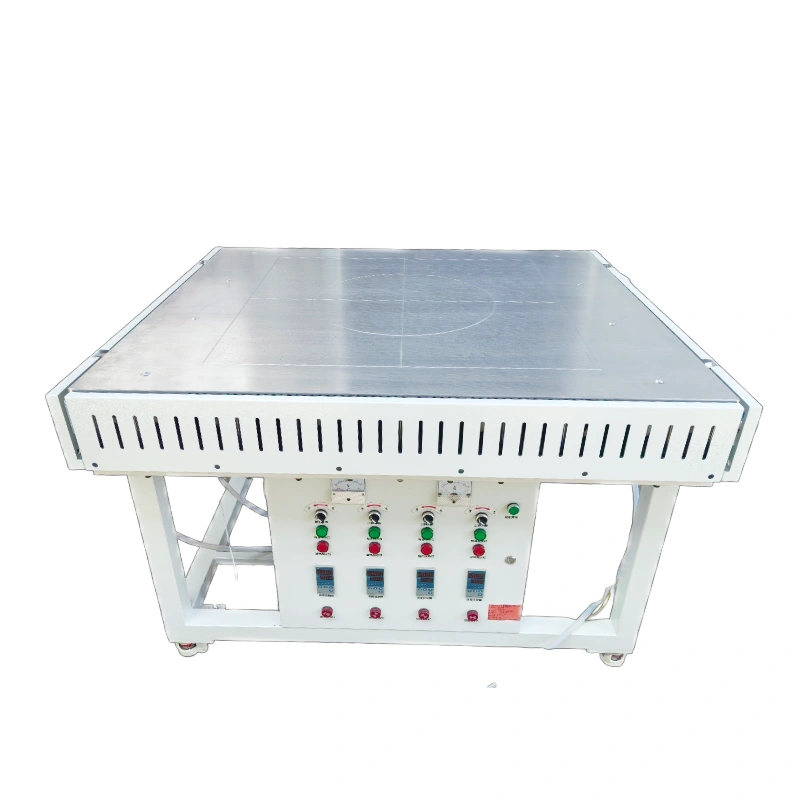

Programmable Constant Temperature Heating Platform – Specifications
Equipped with original Yudian PID AI digital programmable temperature controller for high precision. Users can program freely to realize advanced functions including heating rate control, constant temperature holding time control, linear cooling, jump cycle, timed heating and automatic stop. The temperature can be adjusted precisely by 1°C per step. It is ideal for tests requiring strict temperature uniformity in electronic components, rubber, plastics, decorative materials and other industries.
1. Product Features
- Adopts original Yudian PID AI digital programmable temperature controller with high control accuracy.
- Free programming supported. Features heating speed control, constant temperature timing, linear cooling, jump cycle, timed heating & auto stop. Temperature can be adjusted step by step.
- Built-in high-quality solid state relay (SSR), service life 100 times longer than conventional contact relays.
- Multiple high-grade stainless steel heating tubes, low failure rate and easy maintenance.
- Solid aluminum working panel with high thermal conductivity, fast heating and even temperature distribution.
- Whole housing made of imported SUS304 stainless steel, no paint peeling or rusting under normal working conditions.
We are a professional manufacturer of heating platforms. Custom sizes are available. Standard models below are in stock at all times.
General Parameters of High-Precision Programmable Heating Platform
- Power Supply: 220V; Power Range: 400~3500W
- Standard Temperature Range: Room Temp ~ 350℃ (continuous operation at 350℃). Custom versions: 450℃, 500℃. Non-metallic ceramic heating plate up to 850℃.
- Voltage: 220V; Temperature Accuracy: ±1℃
Standard Model Specifications
| Model | Heating Plate Size(mm) ±1 | Overall Size(mm) ±5 | Voltage(V) | Power(W) | Temperature(℃) | Net Weight(kg) |
|---|---|---|---|---|---|---|
| ET-100 | 100×100×20 | 100×100×160 | 220 | 400 | Room Temp~350 | 3.5 |
| ET-150 | 150×150×20 | 150×150×160 | 220 | 700 | Room Temp~350 | 4.5 |
| ET-200 | 200×200×20 | 200×200×160 | 220 | 800 | Room Temp~350 | 4.5 |
| ET-300 | 300×200×20 | 300×200×160 | 220 | 1200 | Room Temp~350 | 7 |
| ET-360 | 360×250×20 | 360×250×160 | 220 | 1500 | Room Temp~350 | 8.7 |
| ET-400 | 400×300×20 | 400×300×160 | 220 | 1800 | Room Temp~350 | 11 |
| ET-6020 | 600×200×20 | 600×200×160 | 220 | 2000 | Room Temp~350 | 11 |
| ET-6030 | 600×300×20 | 600×300×160 | 220 | 2500 | Room Temp~300 | 16 |
| ET-6040 | 600×400×20 | 600×400×160 | 220 | 3200 | Room Temp~300 | 22 |
| ET-6050 | 600×500×20 | 600×500×160 | 220 | 3500 | Room Temp~300 | 25 |
2. Cabinet Structure
- Consists of working chamber, heating system, electric control system, air supply system and protection system.
- Manufactured with standard industrial process, sleek and elegant appearance.
- Inner chamber: SUS304 stainless steel. Outer cabinet: high-quality cold-rolled steel with metal paint finish, suitable for high-end laboratories.
- Inner shelves are adjustable in height and quantity.
- Insulation layer: ultra-fine glass wool thicker than 70mm, combined with aluminum foil reflector and air gap for excellent heat preservation and low heat loss.
- High-performance rubber sealing structure for door frame, high temperature resistance and anti-aging.
- Dual-cycle air duct system with stainless steel multi-blade centrifugal fan, full hot air circulation for superior temperature uniformity.
- Stainless steel heating tubes for fast heating and long service life.
3. Application Range
ETBC series programmable heating platforms are widely used for tests requiring strict temperature uniformity in electronic components, rubber, plastics and decorative materials.
- Glue dispensing & sealing constant temperature heating in electronics industry
- Mold core preheating for mold factories
- LED aluminum substrate baking, laboratory & industrial constant temperature heating
4. Operation Instructions for Digital Programmable Heating Plate
Basic Operation:
- Turn on the power switch. Green power indicator stays on when power is connected.
- Upper red digits: actual temperature. Lower green digits: set temperature. Press SET to enter setting mode. Use △ / ▽ to adjust value. Press SET again to confirm.
- Turn on heating switch. Red heating light on = continuous heating; flashing = constant temperature mode.
- After use: turn off heating switch first. Wait until the plate cools down completely (1 hour recommended), then cut off main power. Set temperature to minimum for long-term storage.
Program Temperature Setting
This device adopts Temperature-Time programming with wide ramp rate range. Uniform setting format for heating and holding segments, flexible curve editing.
1. Time Setting
- t XX = 1~9999 (min): Running time of current segment
- t XX = 0: Program Hold
- t XX = -1~-30: Jump to segment 1~30
- t XX = -121: Program Stop
Note: Consecutive jumps will trigger automatic pause. Do not set self-jump commands (e.g. t06=-6).
2. Set Value Range
Range: -199.9 ~ +3000.0℃ or -1999 ~ +9999 for target temperature control.
3. Multiple Program Curve Arrangement
The controller restarts from segment 1 after stop. Use the first segment as jump command to switch different curves:
- t 1 = -2: Run Curve 1 (Segment 2~4)
- t 1 = -5: Run Curve 2 (Segment 5~7)
- t 1 = -8: Run Curve 3 (Segment 8~10)
Change the first segment parameter to switch processes. You may also manually set the start segment directly.
