flat hot plate |

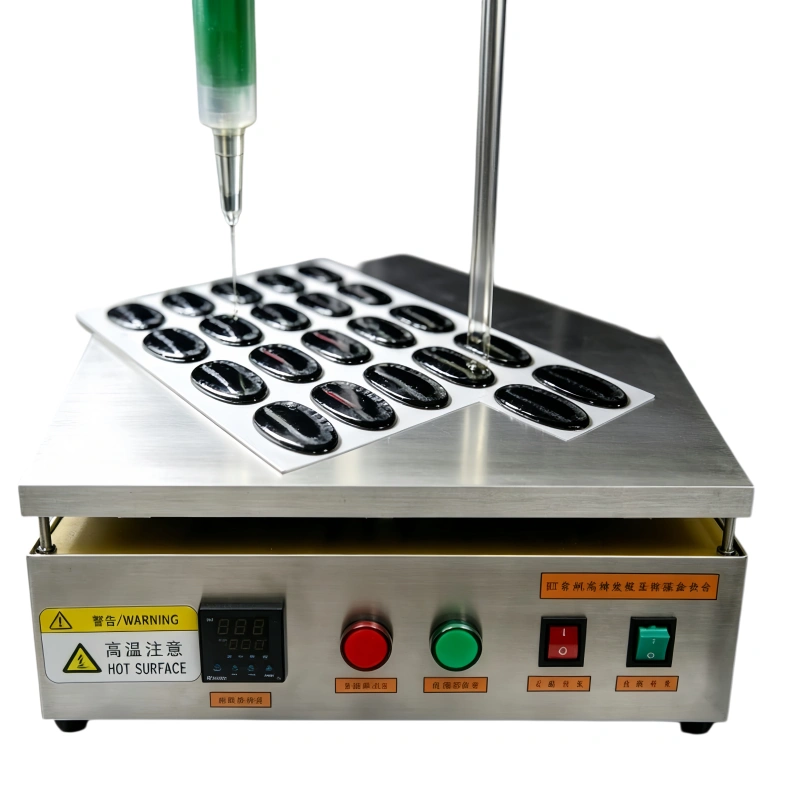

This boiling special hot plate is widely used for sample baking, drying and various temperature tests. It is an essential device for biology, genetics, medical and health, environmental protection, biochemical laboratories, analytical rooms and teaching & research institutions.
Main Features
- The heating system is manufactured with special technology. The working surface will not warp or deform under long-term continuous high temperature.
- The working surface is made of high-quality stainless steel with excellent corrosion resistance.
- Adopts integrated bulk aluminum alloy heater, featuring fast and uniform heating, safe and stable operation.
- Equipped with intelligent temperature controller and PID program for high temperature control accuracy and longer service life.
Main Technical Parameters
| Model | Temperature Range (℃) | Accuracy (℃) | Power (W) | Material | Working Size (mm) |
|---|---|---|---|---|---|
| ET-1(A) | Room Temp ~ 300 | ±1 | 800 | Stainless Steel | 150×150 |
| ET-2(A) | Room Temp ~ 300 | ±1 | 1200 | Stainless Steel | 300×200 |
| ET-3(A) | Room Temp ~ 300 | ±1 | 1500 | Stainless Steel | 350×200 |
| ET-4(A) | Room Temp ~ 300 | ±1 | 1800 | Stainless Steel | 400×300 |
| ET-5(A) | Room Temp ~ 300 | ±1 | 2200 | Stainless Steel | 500×400 |
| ET-6(A) | Room Temp ~ 300 | ±1 | 3500 | Stainless Steel | 600×400 |
| ETL-4(A) | Room Temp ~ 400 | ±1 | 4500 | Aluminum Alloy | 400×300 |
| ETL-6(A) | Room Temp ~ 400 | ±1 | 5000 | Aluminum Alloy | 600×400 |
Notes:
1. Models marked with suffix “A” are digital temperature control type, which can directly display the operating status of temperature control.
2. Custom specifications and special requirements are acceptable.
Operation and Maintenance
- The power socket must be reliably grounded for safety.
- Clean the working surface before and after use. No water drops, dirt, scale or other foreign objects are allowed to remain on the surface.
- Place test tubes and other containers on the working surface before heating to prevent cracking.
- Connect the power supply and turn on the switch. The indicator light will light up, indicating the hot plate is in operation.
- The equipment must be supervised during operation. Do not touch the high-temperature surface to avoid scalding.
- Cut off the power supply after use.
