With 15 years of focus on customized production of high temperature graphite heating plates, Shenzhen Bangqi Chuangyuan Technology delivers products with stable performance. We adopt industry-specific customized graphite materials to ensure high precision and fast delivery. On-site sampling is available.

Featuring high performance, superior corrosion resistance and long service life, graphite heating plates are widely used for sample baking, drying and various temperature tests. They are essential laboratory instruments for biology, genetics, medical & health, environmental protection, biochemistry, analytical laboratories, teaching and scientific research.

• Precise Temperature Control: LCD Chinese display with intelligent temperature control and automatic PID parameter self-check. Heating rate is adjustable automatically. Resolution: ±0.1℃, Control accuracy: ±2℃, Temperature fluctuation: ±1.0℃.
• Adjustable Timing: Support heating time setting and countdown. The unit stops automatically and triggers audio-visual alarm when experiments finish.
• Dual Heat Insulation: Combined air and ceramic fiber insulation plus fully wrapped structure around graphite plate. Energy-saving and uniform surface temperature.

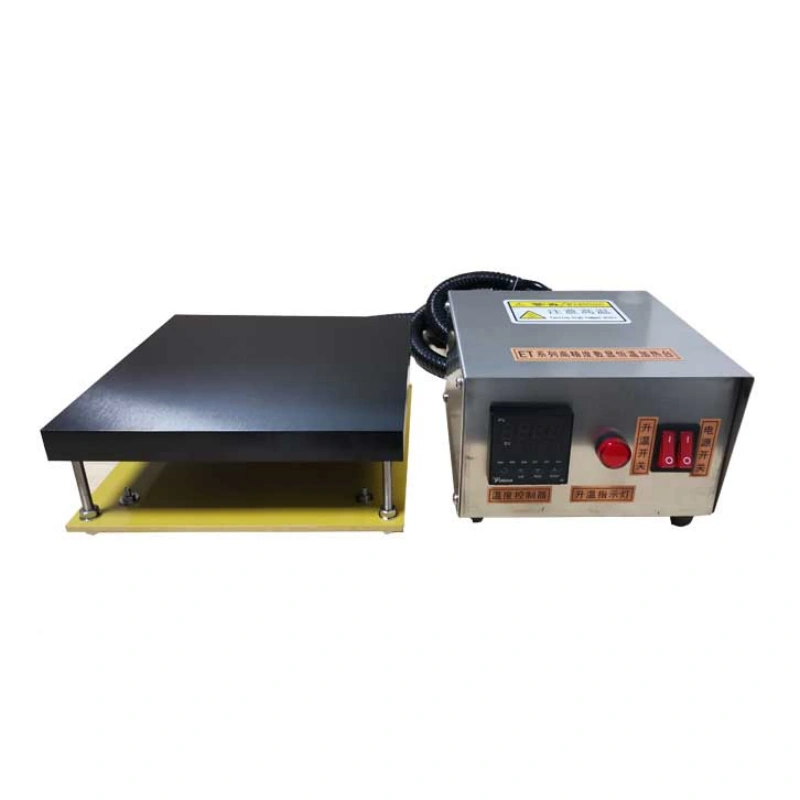

• Four-fold Anti-corrosion Design: SUS304 stainless steel cabinet; high-purity graphite resists strong acid and alkali; isolated connecting parts; split structure with external temperature control box.
• Safe & Humanized Design: Protective cover on main unit and recessed graphite panel prevent scalds and liquid spillage risks.
• Audio-visual Alarm: Indicator light flashes and buzzer sounds when temperature exceeds limit or operation completes.
• Temperature Calibration: High-sensitivity sensor supports temperature correction, realizing accurate and real-time temperature reading.

All technical data are tested under no-load condition: ambient temperature 25℃, relative humidity 50%RH, voltage deviation ±10%, test temperature 10℃ / 55℃. Specifications are subject to change without prior notice. Slight color and dimension deviation caused by shooting and printing shall be accepted. We reserve the right of final interpretation. Customized products with special parameters are available, please contact our customer service.

1. Uniform Heating: Adopting isostatic high-purity graphite with excellent thermal conductivity. Temperature difference between samples is less than ±1℃.
2. The shell is made of high-quality cold-rolled steel plate with surface spraying treatment.
3. Graphite plate thickness: 22mm, surface treated with anti-corrosion process.
4. Fully enclosed heating structure, no open flame, fast temperature rise and high safety.

Widely used for sample pre-treatment in universities, research institutes, agriculture, forestry, environmental protection, healthcare, food, pharmaceutical, biological, chemical, metallurgical and inspection industries. Excellent resistance to strong acid and alkali.

1. Ensure the power socket is properly grounded.
2. Clean the working panel before and after use. No water droplets, dirt or residues allowed.
3. Place sample containers on the panel before heating to prevent cracking.
4. Turn on power, press SET key to start temperature setting, adjust value via up/down keys, press SET again to confirm. Refer to controller manual for detailed operation.
5. Assign dedicated operator during operation. Do not touch hot surface to avoid scalds.
6. Cut off power after work is completed.

1-year warranty from the delivery date, lifetime maintenance service.

1. After power-on, the display shows signal type, version and range value for about 3 seconds, then enters normal working mode.
2. Temperature & Timing Setting
   • Without timing function: Press SET to enter temperature setting (SP shown). Adjust value and press SET to save and exit. Auto exit if no operation within 1 minute.
   • With timing function: Set temperature first, then press SET to set holding time (ST shown). Save and exit by pressing SET again.
3. Set time = 0: Continuous operation. Set time ≠ 0: Timer starts once reaching target temperature. When time is up, display shows “End” with buzzer alarm. Press down key for 3 seconds to restart. Reset timer if set temperature rises during timing; keep timing if set temperature drops.
4. Sensor Fault Alarm: Display shows “—” when sensor fails or temperature out of range. Heating output cuts off automatically with continuous buzzer and indicator on. Check sensor and wiring.
5. Over-temperature upper limit: buzzer sounds & indicator steady on. Over-temperature lower limit: buzzer sounds & indicator flashes. No buzzer if alarm caused by manual temperature adjustment.
6. Press any key to mute the buzzer.
7. Auto exit setting mode if no operation within 1 minute.

1. Do not scratch the heating panel with hard objects.
2. Avoid touching hot surface during operation to prevent scalds.
3. Turn off switch and cut off power after use.
4. Keep flammable, explosive and corrosive materials away. Arrange on-site supervision during operation.
5. Keep working surface dry and avoid rain.
6. Avoid collision and severe vibration during transportation.
7. Store in dry and cool environment with relative humidity ≤85%.
8. Slight smoke during first heating is normal, caused by volatilization of anti-rust agent.

Shenzhen Bangqi Chuangyuan Technology has 10 years of experience in manufacturing graphite heating plates and stainless steel heating plates, including graphene & microcrystalline glass heating plates. Complete specifications, reliable quality and competitive price. Nationwide delivery and non-standard customization are available. Our products are widely applied in laboratories. Welcome inquiries and orders.
