Product Introduction
Our high-precision digital heating platform includes Integrated Type and Split Type. We are a professional manufacturer with independent design and production, NOT a trading company. Modular design for easy maintenance.
Features: SUS304 stainless steel body, 20mm thick solid aluminum heating plate, original Yudian PID controller, Taiwan imported heating tubes, MEGER SSR relay. All screws are stainless steel.
12 years of production experience, stable quality, supports 24-hour continuous working.
Technical Specifications (ET Series)
- Power Supply: AC220V 50Hz
- Temperature Range: Room Temperature ~ 350℃
- Control Accuracy: ±1~2%

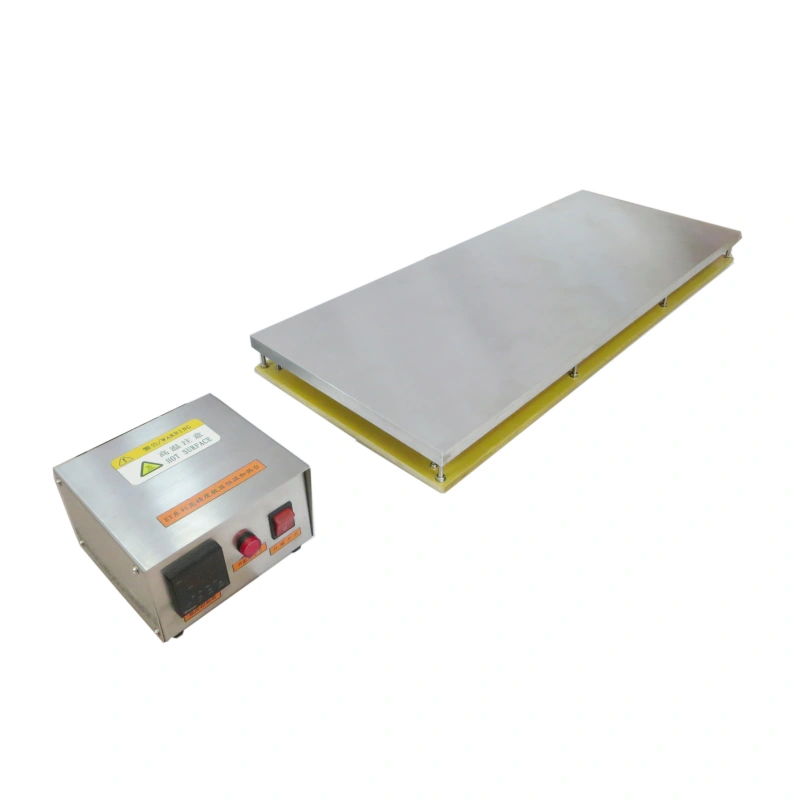

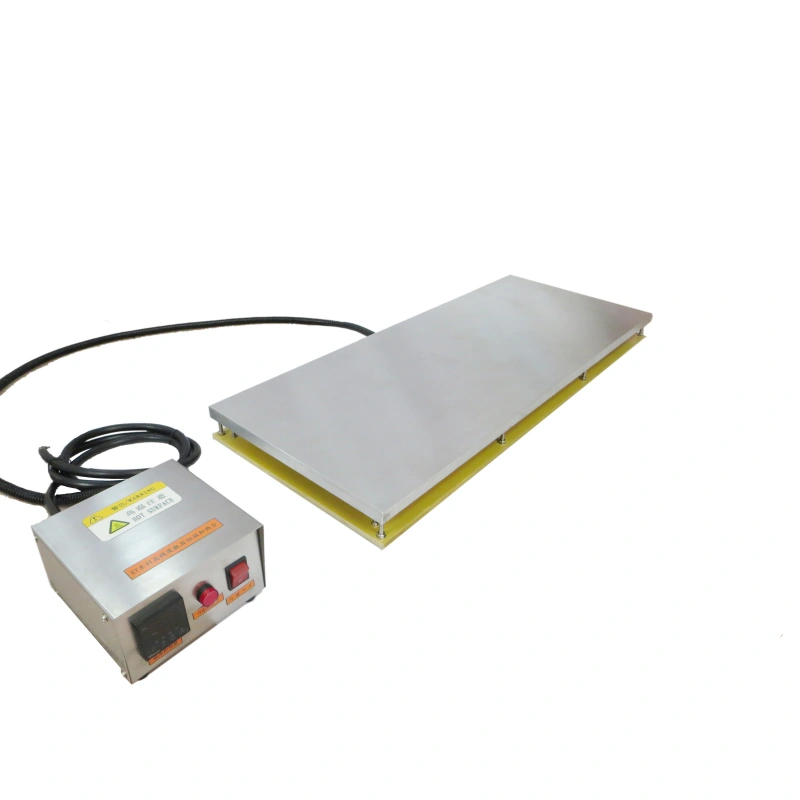

- Types: Integrated (H=150mm), Split (H=65mm), High Temp (RT~450℃), Ultra High Temp (RT~500℃)
Model Parameters
| Model | Plate Size (mm) | Power (W) | Weight (kg) |
|---|---|---|---|
| ET-1010 | 100×100×20 | 400 | 3.5 |
| ET-1515 | 150×150×20 | 600 | 5 |
| ET-2020 | 200×200×20 | 800 | 5 |
| ET-3020 | 300×200×20 | 1200 | 7 |
| ET-3030 | 300×300×20 | 1800 | 9 |
| ET-3625 | 360×250×20 | 1500 | 9 |
| ET-4020 | 400×200×20 | 1500 | 8 |
| ET-4030 | 400×300×20 | 1800 | 11 |
| ET-4040 | 400×400×20 | 2200 | 13 |
| ET-5050 | 500×500×20 | 3500 | 20 |
| ET-6020 | 600×200×20 | 2200 | 11 |
| ET-6030 | 600×300×20 | 2500 | 16 |
| ET-6040 | 600×400×20 | 3200 | 22 |
| ET-6050 | 600×500×20 | 3800 | 25 |
All integrated models are in stock. Non-standard customization is available.
Product Features
Applications
- 1. LED industry: Aluminum substrate & LED bulb soldering
- 2. LCD & mobile screen repair, cable removal, glue removing
- 3. Laboratory heating, temperature test, biological & medical research
- 4. Industrial baking & drying
- 5. Electronic components preheating & SMD rework
- 6. Glue sealing & dispensing heating
- 7. Mold core preheating
Operation Method
- Connect power and turn on the power switch; the green power indicator lights up.
- Turn on the heating switch: red indicator ON = heating; flashing = constant temperature.
- After use: turn off the heating switch first. Cool for 1 hour, then turn off the power.
Company Introduction
Brand: ETOOL (Shenzhen Bangqi Chuangyuan Technology Co., Ltd.)
10+ years professional manufacturer of high-precision heating platforms. We use top-grade components: Yudian controller, genuine SUS304 stainless steel, imported heating parts. Stable temperature, reliable quality, factory direct sales.
Professional manufacturing, better quality & service!
