Integrated & Split Type | Professional Manufacturer | 12 Years Experience
Product Introduction
We are a professional heating platform manufacturer with independent design and production. All products use high-quality components: 304 stainless steel body, 20mm thick solid aluminum heating plate, original Yudian temperature controller, Taiwan imported heating tubes, and MEGER solid state relays. Stable quality, supports 24-hour continuous operation.
Technical Specifications (ET Series)
- Power Supply: AC220V (50Hz)
- Temperature Range: RT ~ 350℃
- Control Accuracy: ±1~2%

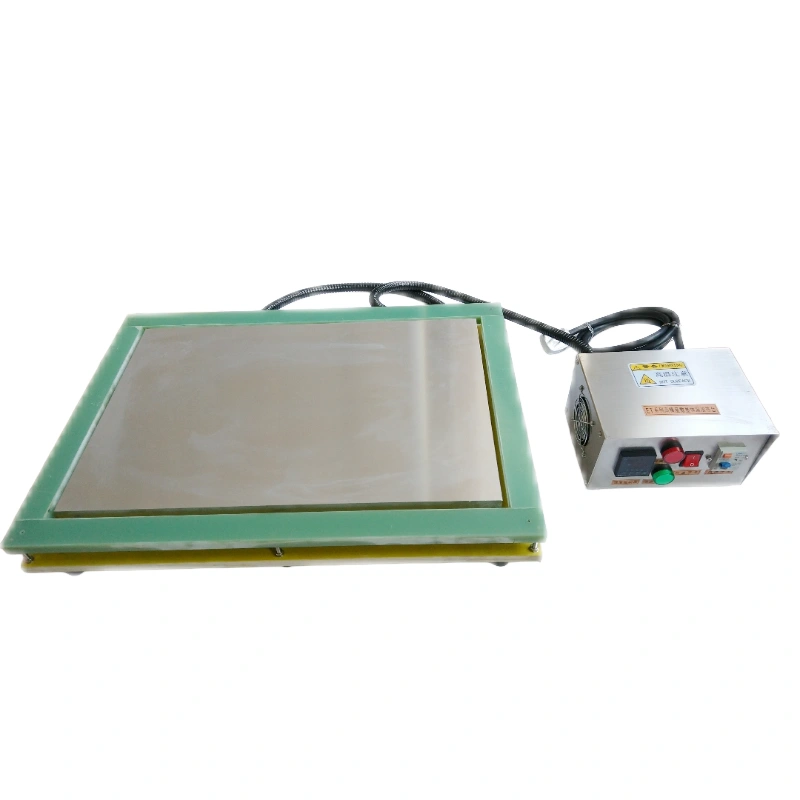

- Types: Integrated (H=150mm), Split (H=65mm), High Temp (450℃), Ultra High Temp (500℃)
Full Model List
| Model | Plate Size (mm) | Power (W) | Weight (kg) |
|---|---|---|---|
| ET-1010 | 100×100×20 | 400 | 3.5 |
| ET-1515 | 150×150×20 | 600 | 5 |
| ET-2020 | 200×200×20 | 800 | 5 |
| ET-3020 | 300×200×20 | 1200 | 7 |
| ET-3030 | 300×300×20 | 1800 | 9 |
| ET-3625 | 360×250×20 | 1500 | 9 |
| ET-4020 | 400×200×20 | 1500 | 8 |
| ET-4030 | 400×300×20 | 1800 | 11 |
| ET-4040 | 400×400×20 | 2200 | 13 |
| ET-5050 | 500×500×20 | 3500 | 20 |
| ET-6020 | 600×200×20 | 2200 | 11 |
| ET-6030 | 600×300×20 | 2500 | 16 |
| ET-6040 | 600×400×20 | 3200 | 22 |
| ET-6050 | 600×500×20 | 3800 | 25 |
All integrated models in stock. Non-standard customization available.
ETOOL Product Features
Applications
- 1. LED industry: aluminum substrate & lamp soldering
- 2. LCD & phone screen repair, cable & glue removal
- 3. Laboratory heating, temperature testing, biological & medical research
- 4. Industrial baking & drying

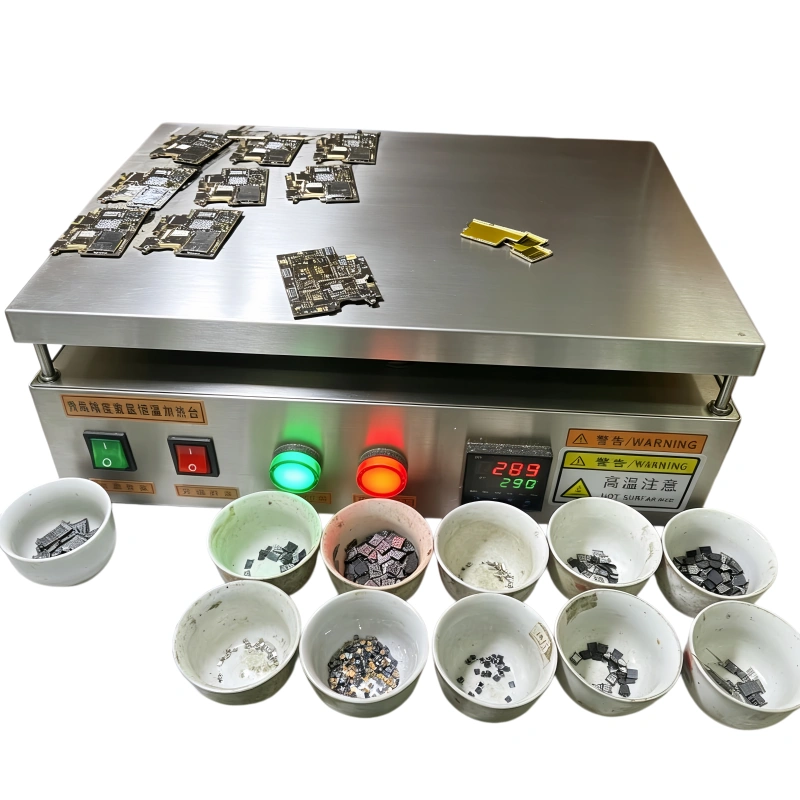

- 5. Electronic components preheating & SMD rework
- 6. Electronic glue sealing & dispensing
- 7. Mold core preheating
Operation Method
- Connect power, turn on the power switch (green indicator ON).
- Turn on heating switch: red indicator ON = heating; flashing = constant temperature.
- After use: turn off heating switch first. Cool for 1 hour, then turn off power.
Company Strength
Shenzhen Bangqi Chuangyuan Technology Co., Ltd. | Brand: ETOOL
10+ years professional manufacturer. We use top-grade components: Yudian controller, SUS304 stainless steel, imported heating parts. Stable temperature, reliable quality, factory direct supply.
Professional manufacturing, better quality & service!
ETOOL – Professional Heating Platform Manufacturer Since 2012
Factory Direct | High Quality | 24h Working | Customizable
