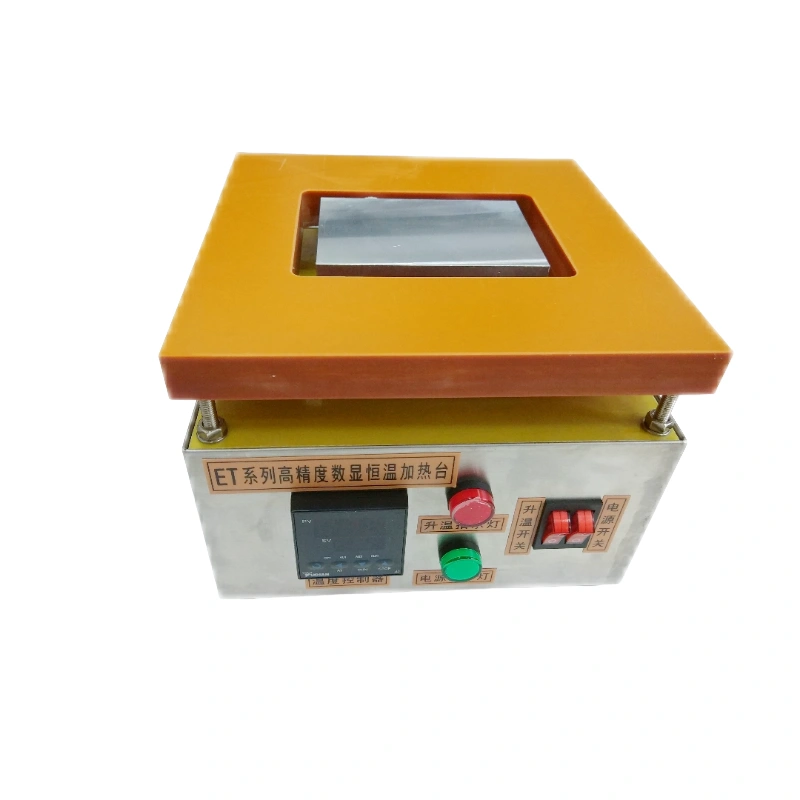

High-Precision Constant-Temperature Heating

• F: Split type, overall height 65 mm
• B: Equipped with external anti-scald protective baffle
• G: High-temperature model, max working temperature up to 450℃
• TG: Extra high-temperature model, max working temperature up to 500℃
• BC: Programmable heating platform with 30-segment programs; supports heating rate setting, constant temperature hold and linear cooling
• JS: Timing control model; automatically stops heating and triggers an alarm once the preset time expires
• XF: Vacuum adsorption platform with customizable round hole layout. Non-standard sizes and 110V voltage versions are available on request

Survive by quality, develop by integrity. We can issue ordinary invoices and VAT invoices, support corporate bank transfer and Taobao online transactions.

1. Connect the power supply and turn on the main power switch. The green power indicator stays on to indicate power input.
2. Temperature setting:
   Under the main display status, press the up, down and shift keys to adjust the target value.
   Press the down key to decrease temperature; press the up key to increase temperature.
   Long press the up/down key for continuous temperature change with two speed levels.
   Use the shift key to move the cursor directly, then modify the blinking digit quickly.
3. Turn on the heating switch. The red heating lamp keeps steady on during continuous temperature rise; the lamp flashes when entering constant-temperature mode with intermittent heating.
4. After finishing work, turn off the heating switch first. The green power lamp remains on as a warning that the surface is still hot. Do not touch the panel. Wait for at least one hour until the plate fully cools down before cutting off the main power supply.

1. The whole machine enjoys 1-year free maintenance under normal usage (excluding man-made damage); heating tubes carry a 6-month warranty.
2. We provide lifelong paid maintenance service after the warranty expires.

1. No power after startup: Check if the fuse is blown or if the power plug is tightly connected.
2. Temperature reading remains unchanged and no heating occurs: The heating element is broken.
3. The upper PV window alternately displays “ORT”: The temperature thermocouple sensor is open-circuited.

• Complete packing list
• Temperature controller certification
• Heating tube certification
• Aluminum heating plate RoHS certificate
