Introduction: Industrial electric heating plates are heaters with tubular heating elements die-cast inside aluminum housings. They can tightly attach to heated workpieces, featuring uniform heat output, excellent thermal conductivity and long service life. We provide massive non-standard customized services for far-infrared ceramic heating plates. Our 6061 aluminum heating plates adopt imported 6061 aluminum blanks, with side drilled holes for embedded heating rods. The material delivers superior machinability to meet heating demands requiring precision processing.

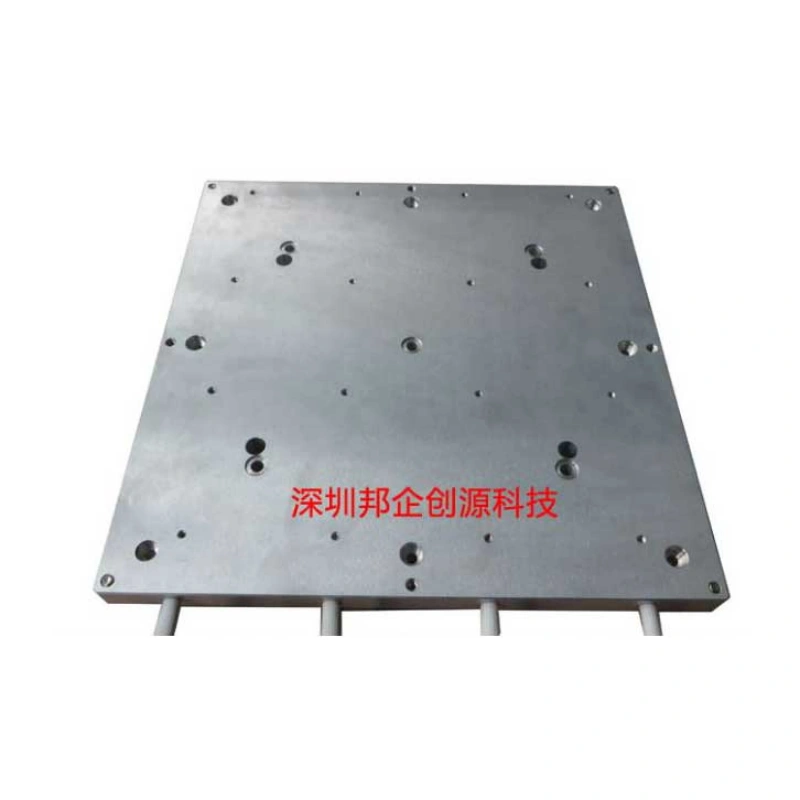

Industrial Aluminum Electric Heating Plate

1. Technical Characteristics of Industrial Electric Heating Plates

Uniform heat distribution and outstanding thermal stability
Replaceable heating elements to extend overall service life
Max continuous operating temperature: 400℃
Standard plate thickness: 20mm; custom thickness options available
Overall dimensions, power and voltage fully customizable per customer requirements

2. Full Technical Specifications

Item	Specifications
Overall Size	Fully Customized (Ample raw material stock, short lead time & fast delivery)
Standard Plate Thickness	6mm (contact customer service for custom thickness)
Power Density	0.5–3.5 W/cm²
Operating Temperature Range	-20℃ ~ 400℃

3. Wide Application Range

Heating components for industrial machinery: blow molding machines, extruders, injection molding machines, etc.
General industrial & agricultural heating scenarios: mold heating, plastic machinery, heating & drying equipment
Plastic injection molding machines
Plastic extrusion machines
Extensively deployed on extruders, injection molding equipment, semiconductor manufacturing lines, medical devices, cable machinery, petroleum processing equipment and more.

4. Safety Operation Guidelines

Operating voltage shall not exceed 110% of rated voltage.
All wiring terminals must be arranged outside heating & insulation layers; equipment housing must be reliably grounded.
Store cast aluminum heating coils in dry environments. If insulation resistance drops below 1 MΩ after long idle storage, bake the heater in an oven at around 200℃ for 5–6 hours to restore insulation performance.

5. Frequently Asked Questions

Q1: How much does a heating plate cost?

The price varies based on customer industry, target heated product and working temperature. Higher operating temperature requires higher-grade raw materials, leading to different pricing.

Q2: Which brand of constant temperature heating plate is reliable?

Quality determines value, you get what you pay for. ETOOL heating plates are fully self-designed with consistent uniform temperature distribution. With 10 years of dedicated design & manufacturing experience, we deliver stable premium quality. Modular design delivers precise temperature control with full non-standard customization support. Choose ETOOL for guaranteed quality, competitive pricing and thoughtful after-sales service, widely recognized by new and long-term clients. All main units carry a 1-year warranty starting the day of shipment.

Q3: How to select a suitable heating plate?

First confirm required plate size, operating temperature and application type. Key parameters to evaluate: temperature uniformity, temperature resolution, temperature controller and built-in temperature sensor.
