The split constant temperature heating plate is equipped with genuine Yudian PID intelligent digital temperature control system, delivering high precision, safe, simple and intuitive operation. The whole working panel is made of aluminum material featuring outstanding thermal conductivity for fast heating speed.

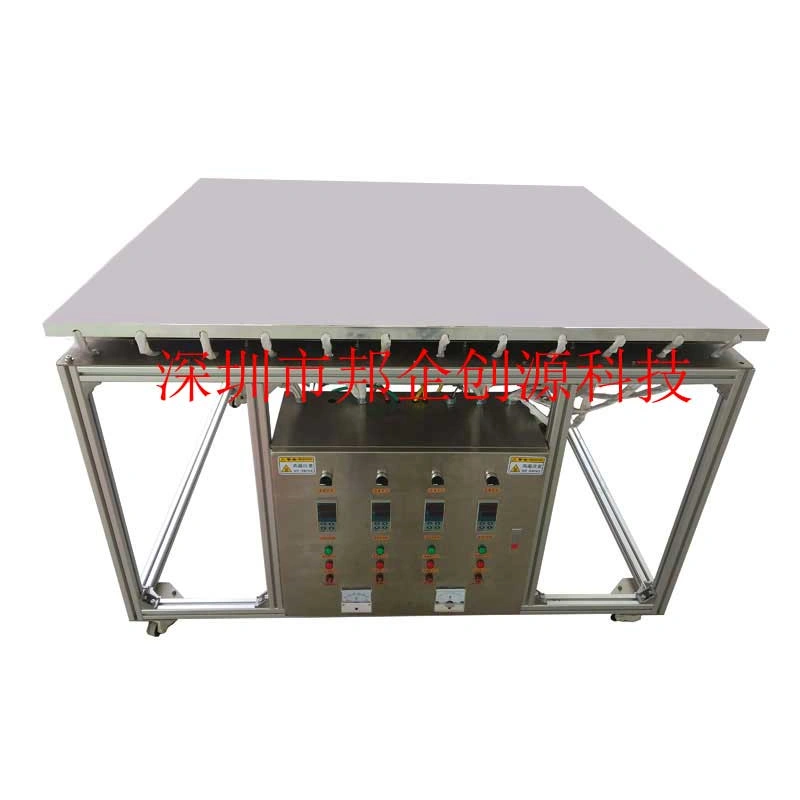

ET-100 Split Constant Temperature Heating Plate
1. Technical Specifications of ET-100F Heating Plate
| Item | Parameter |
|---|---|
| Model | ET-100F |
| Heating Plate Dimension | 100×100×20mm ±1 |
| Plate Material | Aluminum Alloy |
| Heating Unit Overall Size | 200×200×65mm |
| Control Cabinet Dimension | 170×160×100mm |
| Split Connection Cable Length | 1.6 Meters |
| Temperature Control Range | Ambient ~ 350℃ |
| Temperature Control Accuracy | ±1~2%℃ |
| Power Supply | AC220V 50Hz |
| Max Rated Power | 400W |
| Net Weight | 4.5Kg |
2. Product Features of Constant Temperature Heating Plate
- Top-tier genuine domestic Yudian PID intelligent digital temperature control system, high precision, safe, simple and intuitive operation.
- High-performance solid-state SSR relay with service life 100 times longer than mechanical contact relays. It features fast response, high reliability, long service life, zero operating noise, shock & mechanical impact resistance, plus excellent moisture-proof, mildew-proof and anti-corrosion performance.
- Multiple premium stainless steel heating tubes wound with nichrome alloy heating wire, ultra-high thermal conductivity, convenient quick maintenance and ultra-low failure rate for extended service life.
- Monolithic aluminum working surface with superior thermal conductivity for fast, uniform heating. Thermal efficiency reaches 5–6 times higher than ordinary heating furnaces, and the plate maintains zero deformation under long-duration high-temperature operation.
- Full cabinet housing constructed from SUS304 stainless steel; no paint peeling or rusting under standard working environments.
- Cooling fan and heat dissipation windows are pre-installed on the control system to ensure internal components will not overheat even under extreme operating conditions.
3. Application Scope
- Laboratory heating equipment and electric hot plates for thermal testing; essential instrument for biological, genetic, medical hygiene, environmental protection, biochemical, analytical and university research laboratories.
- LED industry aluminum substrate, LED chip soldering and component rework repair.
- LCD & mobile screen repair, cable ribbon removal, touch screen glue stripping.
- Sample baking and drying under constant temperature for all industrial verticals.
- Preheating, disassembly and rework of SMD electronic components in electronics manufacturing industry.
4. Optional Standard Model Specifications
| Model | Voltage | Max Power | Temp Range | Accuracy | Plate Size(mm) | Unit Size(mm) | Net Weight |
|---|---|---|---|---|---|---|---|
| ET-100 | 220V AC 50/60Hz | 400W | Ambient~350℃ | ±1%℃ | 100×100×20 | 200×200×150 | 3.5Kg |
| ET-150 | 220V AC 50/60Hz | 600W | Ambient~350℃ | ±1%℃ | 150×150×20 | 200×200×150 | 3.5Kg |
| ET-200 | 220V AC 50/60Hz | 800W | Ambient~350℃ | ±1%℃ | 200×200×20 | 200×200×150 | 4.5Kg |
| ET-3020 | 220V AC 50/60Hz | 1200W | Ambient~350℃ | ±1~2%℃ | 300×200×20 | 300×200×150 | 6Kg |
| ET-360 | 220V AC 50/60Hz | 1500W | Ambient~350℃ | ±1~2%℃ | 360×250×20 | 360×250×150 | 7.5Kg |
| ET-400 | 220V AC 50/60Hz | 1800W | Ambient~350℃ | ±1~2%℃ | 400×300×20 | 400×300×150 | 10Kg |
| ET-6040 | 220V AC 50/60Hz | 3600W | Ambient~300℃ | ±1~2℃ | 600×400×20 | 600×400×150 | 20Kg |
| ET-8040F | 220V AC 50/60Hz | 3600W | Ambient~300℃ | ±1~3%℃ | 800×400×20 | 800×400×75 | 30Kg |
| ET-13015F | 220V AC 50/60Hz | 2300W | Ambient~280℃ | ±1~3%℃ | 1300×150×20 | 1300×150×120 | 18Kg |
| ET-13020F | 220V AC 50/60Hz | 3400W | Ambient~280℃ | ±1~3%℃ | 1300×200×20 | 1300×200×120 | 25Kg |
| ET-13030F | 220V AC 50/60Hz | 4600W | Ambient~280℃ | ±3~5%℃ | 1300×300×20 | 1300×300×120 | 40Kg |
5. Partial Cooperative Customer List of ETOOL Heating Plates
- Machinery & Manufacturing Industry: Foxconn (Longhua, Shenzhen), Hitachi Suzhou, Midea Electric, Hisense Qingdao, TCL, SINOMACH Group, Great Wall Development Technology
- LED Optoelectronics Industry: Kingsun Optoelectronic, Rituo Electronics (Derun Haoda), Foshan Lighting, Sanxiong Aurora, NVC Lighting, NationStar Optoelectronics, Changfang Lighting, etc.
- Scientific Research Institutes: Institute of Microelectronics of Chinese Academy of Sciences, No.211 Research Institute of NORINCO Group, Architectural Engineering Research Institute of PLA Logistics Support Department, CASIC, No.15 Research Institute of CETC
- Famous Universities: Tsinghua University, Peking University, Wuhan University, Nanjing University, University of Science and Technology of China, Zhejiang University
