Safe, No Electric Leakage, No Open Flame | High Thermal Efficiency | Round / Square Available
Product Introduction
The heating plate is a safe and reliable electric heating flat plate. It heats up without electricity leakage or open flame. It works by heat conduction, providing extremely high heating efficiency. It is widely used for phone screen disassembly, LCD repair, LED soldering, lab heating, etc.
Applications
- LED industry: aluminum substrate soldering, lamp welding & repair
- LCD & phone screen repair, cable removal, touch screen glue melting
- Laboratory heating, temperature testing (biological, medical, environmental, biochemical labs)
- Industrial sample baking & drying
- Electronic components preheating & SMD rework
- Electronic glue sealing & dispensing heating
- Mold core preheating
Product Types
Available in Integrated Type and Split Type. Customers can choose according to heating requirements. Contact us for professional support.

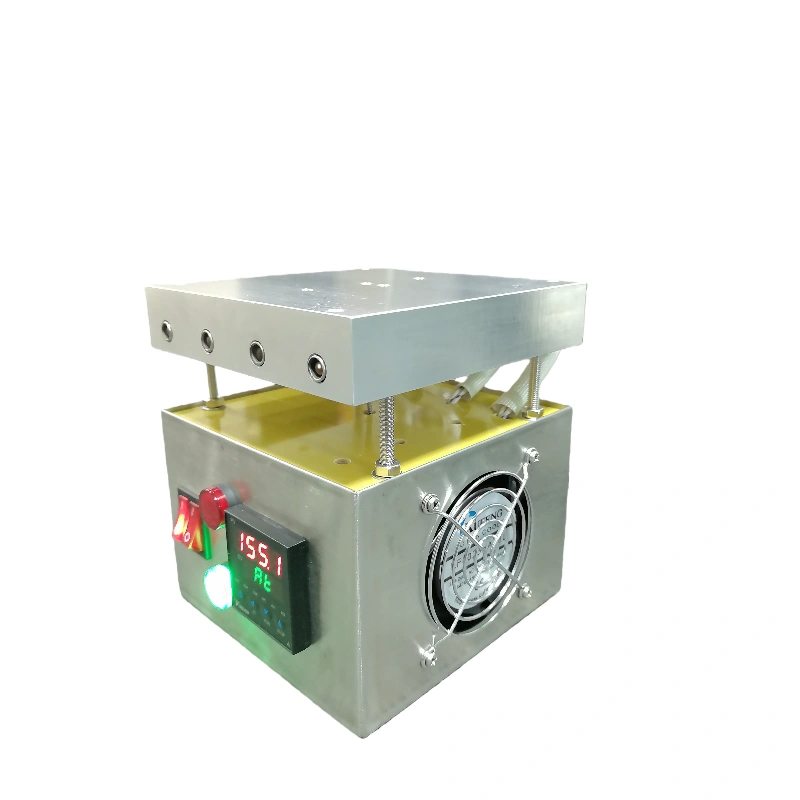

Main Specifications (ET-150)
| Item | Value |
|---|---|
| Product Name | High Precision Digital Heating Platform |
| Brand | ETOOL |
| Model | ET-150 |
| Heating Plate Size | 150×150×20mm ±1 |
| Power | 600W (MAX) |
| Warranty | 1 Year |
| Power Supply | AC220V 50Hz |
| Temperature Range | RT ~ 350℃ (long-term usable) |
| Ultra High Temp Type | RT ~ 500℃ |
| Type | Integrated / Split |
| Net Weight | 4.5kg |
Full Model List
| Model | Plate Size | Power | Weight |
|---|---|---|---|
| ET-1010 | 100x100x20mm | 400W | 3.5kg |
| ET-150 | 150x150x20mm | 600W | 4.5kg |
| ET-2020 | 200x200x20mm | 800W | 4.5kg |
| ET-3020 | 300x200x20mm | 1200W | 6kg |
| ET-3625 | 360x250x20mm | 1500W | 7.5kg |
| ET-4030 | 400x300x20mm | 1800W | 11kg |
| ET-6020 | 600x200x20mm | 2000W | 11kg |
| ET-6030 | 600x300x20mm | 3000W | 18kg |
| ET-6040 | 600x400x20mm | 3600W | 22kg |
| ET-6050 | 600x500x20mm | 4200W | 26kg |
Why Choose ETOOL Heating Plate?
✔ We are original manufacturer, not trader. Accept non-standard customization (3–7 working days).
✔ High precision, no temperature overshoot.
✔ Equipped with famous YUDIAN PID controller, 36-month warranty.
✔ Key parts: imported heating tubes, service life >2x ordinary tubes.
✔ Body: SUS304 stainless steel, anti-rust, durable.
✔ Wiring: certified electricians, fire-proof high-temperature cables.
Core Product Advantages
- Original Yudian PID controller, high precision, easy operation
- High-quality SSR relay (100x life of ordinary relays), fast response, silent, shockproof
- Multi stainless steel heating tubes with Ni-Cr wire, long life, high thermal conductivity
- Pure aluminum panel: fast heating, uniform temperature, 5–6x efficiency, no deformation
- SUS304 stainless steel body, stable and durable
Operation Method
- Connect power → turn on power switch (green indicator ON).
- Turn on heating switch: red indicator ON = heating; flashing = constant temperature.
- After use: turn off heating switch first. Cool for 1 hour, then turn off power.
Real & Honest Temperature Notice
We refuse false advertising! Some sellers claim “”±0℃ error”” — this is impossible.
Aluminum conducts heat from center to edge. Temperature will be slightly higher in the middle and lower on sides. Higher temperature = bigger deviation. This is a physical principle.
We provide real and reliable data you can trust.
Our Promise
10+ years professional manufacturer. Smooth surface, no sand holes, custom design with drawings, long service life.
Full range of models, quality guaranteed, competitive price, national & global delivery.
We offer stable quality, honest cooperation, and long-term partnership.
