Adopts PID intelligent digital temperature controller, high precision, safe and easy operation.
Heating plate made of pure aluminum: high thermal conductivity, fast heating, uniform temperature.
Suitable for PCB preheating and uniform heating processes for components.
I. Product Features
- Adopts PID intelligent digital temperature controller, high precision, safe and easy operation.
- High-quality solid state relay (SSR), service life is 100 times that of ordinary contact relays.
- Multi high-quality stainless steel heating tubes, convenient maintenance, low failure rate.
- Whole panel made of pure aluminum: high hardness, no deformation, high temperature resistance, good thermal stability, high thermal conductivity, fast heating, uniform temperature.
- Shell made of 1mm imported SUS304 stainless steel: sturdy, durable, no paint peeling or rust under normal environment.
II. Technical Specifications
Power:220V (50Hz)
Temperature Range:Room Temperature ~ 350℃
Control Accuracy:±1%℃
Types:Integrated (H=150mm), Split-type (H=65mm)
Model Parameters
| Model | Heating Plate Size | Max Power | Net Weight |
|---|---|---|---|
| ET-100 | 100×100×145mm ±1 | 400W | 3.5Kg |
| ET-200 | 200×200×145mm ±1 | 800W | 4.5Kg |
| ET-360 | 360×250×145mm ±1 | 1500W | 7.5Kg |
| ET-400 | 400×300×145mm ±1 | 2000W | 10Kg |
Non-standard customization is available.
III. Application Scope
- Constant temperature heating for adhesive sealing & dispensing in electronics industry.
- LED aluminum substrate soldering & repair.
- Mold core preheating for mold factories.
- Sample baking, drying and temperature tests for industrial, biological, medical, environmental, laboratory and research use.
IV. Operating Instructions

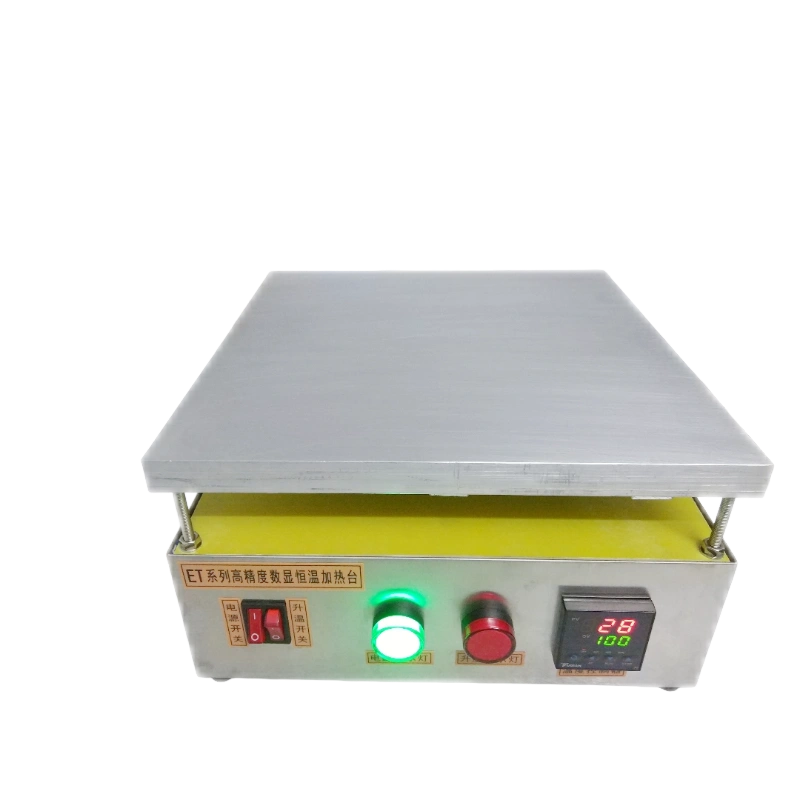

- Connect power, turn on POWER switch. Green POWER indicator lights up.
- Turn on HEAT switch. Red HEAT indicator on = heating; flashing = constant temperature.
- After use: turn off HEAT first. Do not touch the hot plate. Wait until fully cooled (1 hour recommended), then turn off POWER.
- For advanced settings: temperature setting, AT auto-tuning, controller wiring, system parameters, please refer to the user manual.
V. Safety Precautions
- Use 220VAC with grounded socket and leakage protector.
- Do not open casing or modify wiring without professional guidance.
- Avoid touching heating plate to prevent burns.
- Disconnect power when not in use for long time.

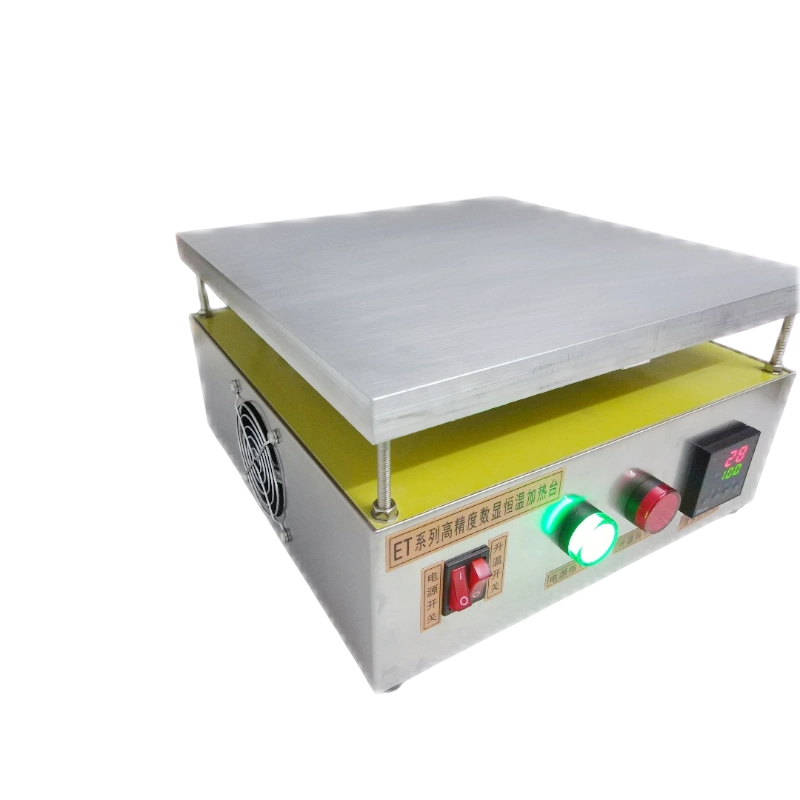

- Do not block air vents (air cooling system).
- Unplug before replacing fuse to avoid electric shock.
VI. Warranty Policy
- 1-year free warranty for whole machine (non-human damage); heating tube: 6 months.
- Lifetime paid service after warranty period.
We are a professional manufacturer of heating platforms, constant temperature heating plates, LED aluminum substrate soldering stations. Direct factory, no trading, reliable quality and service.
We promise: complete specifications, quality assurance, competitive price, national delivery.
YITUO ETOOL – Professional Heating Platform Manufacturer
