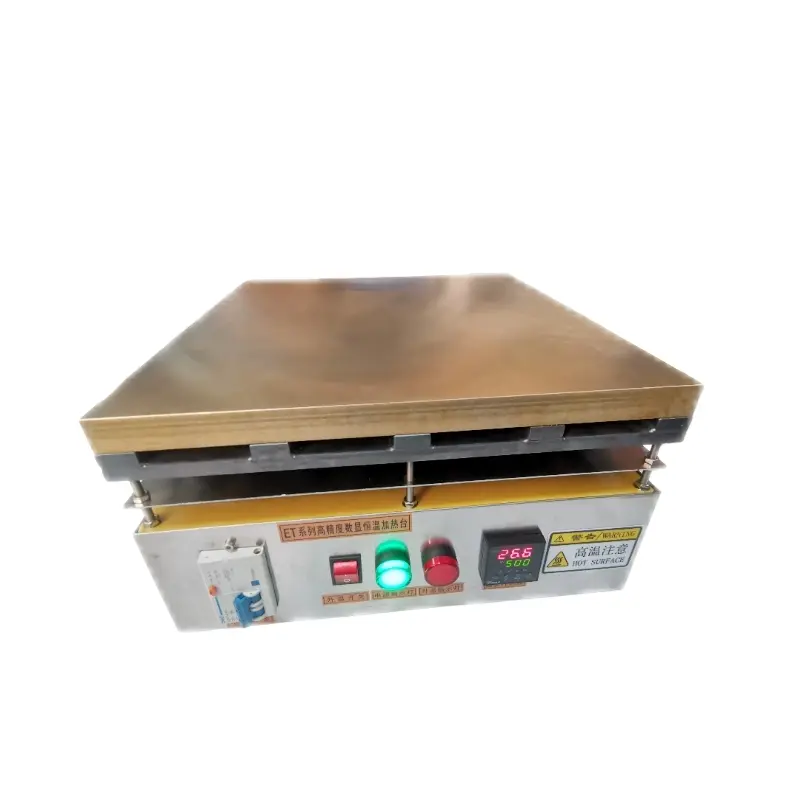

Cast Copper Heater | Cast Copper Heating Plate
Cast copper heater uses tubular electric heating elements as the heat source, molded with high-quality 96 brass via gravity casting. Working temperature: 150~600℃. Widely used in plastic machinery, dies, cable machinery, chemical, rubber, petroleum equipment. Features: long service life, good thermal insulation, high mechanical strength, corrosion resistance, anti-magnetic. Customization as per drawings or samples is welcome.
Product Introduction
Cast copper heating plate takes metal electric heating tubes as heating elements, bent and molded with high-quality copper shell via die-casting or centrifugal casting. Features: excellent thermal conductivity, long service life, good heat preservation, high mechanical strength, shock resistance, no deformation, corrosion resistance, anti-magnetic.
It is a high-efficiency heater with uniform heat distribution. The high thermal conductivity alloy ensures even temperature and eliminates hot/cold spots. Energy saving up to 35% with external insulation and internal infrared sintering.
Ordering Information
- Provide drawings, samples or technical requirements
- Power: 1~1.5 times of cast aluminum heater; Surface load: 1~7.0W/cm²
- Shapes: flat, right angle, special shape
- Specifications: model, voltage, power, dimensions
- Standard surface load: 2.5~4.0W/cm²
Technical Parameters
- Ambient temperature: -20℃~+60℃; Humidity: <80%
- Electric strength: 1500V/50Hz, no breakdown
- Leakage current: <0.5mA
- Insulation resistance: >2MΩ
- Ground resistance: <0.1Ω
- Power tolerance: +5%~-10%
- Surface temperature: up to 600℃
Applications
Must be fixed tightly with heated objects, NO DRY BURNING. Single-sided heating with insulation cotton & stainless steel cover is available. Widely used in cable machinery, automobile, petroleum, food, medical, laboratory, electronics, metallurgy, and high-temperature metal molds.
Operating Instructions
- Working voltage ≤ 10% of rated; Humidity ≤95%, no explosive/corrosive gas
- Wiring outside heating/insulation layer; casing must be grounded
- Store in dry area; bake at 200℃ for 5-6h if insulation is low
- Tight fit required; NO DRY BURNING; keep surface clean
- Prevent dust/water from entering magnesium oxide powder
Working Principle
The cast copper heater uses alternating magnetic field. The primary and secondary coils on the same core generate high current at low voltage, producing eddy current heat inside metal. It is widely used for metal heat treatment, pre-heating of fuel oil (heavy oil, asphalt), reducing viscosity, improving combustion, and saving energy.
As an induction heater, it generates heat via eddy current while the heater body remains cool. It provides automatic demagnetization to avoid metal dust absorption.
Customization Service
Shenzhen Qichuang Intelligent Equipment Co., Ltd provides non-standard customization for cast copper heaters, heating plates, heating rings, and special-shaped heaters. Various shapes, thicknesses, sizes, and voltages are available. Welcome to customize
