Company Introduction

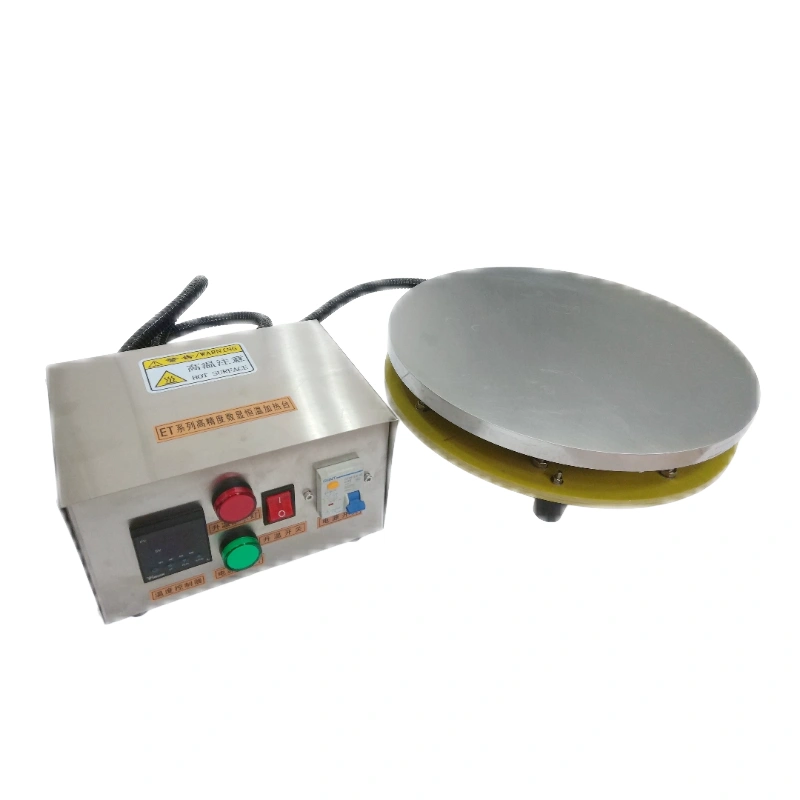

We are a professional manufacturer of heating plates, laboratory heating plates, biochemical test heating stations, laboratory heating stations and laboratory heating furnaces. 100% independently designed and produced, NOT a trading company. Choose ETOOL brand: high precision, no temperature overshoot. aluminium hot plate

ProductIntroduction

Adopts industrial-grade PID (Proportional-Integral-Derivative) control technology with high thermal conductivity aluminum heating plate. Temperature is continuously adjustable from room temperature to 350°C, with uniform heating, fast heating, safe and simple operation.

Heating system uses multiple high-quality stainless steel heating tubes with reasonable electrical structure and circuit design, providing high-precision output, long service life and low failure rate. Modular design for easy maintenance.

Design & Performance Features

1. Original Yudian PID digital temperature control system: high precision, fast recovery, no overshoot, stable

2. Redundant design in key parts for higher stability and safety

3. Perfect combination of aluminum thickness, tube power, heating time and load capacity

4. High-quality SSR relay: fast response, high reliability, long life, no noise

5. SUS304 stainless steel body: sturdy, rust-proof, no paint peeling, elegant appearance

6. Cooling fan design: 20% higher heat dissipation, supports 24h continuous working hot plate center

Model & Specifications

Power: 220V (50Hz) | Temp Range: RT ~ 350°C | Accuracy: ±1~2%°C

Model	Temp Range	Power (Max)	Outer Size (mm)	Heating Size (mm)	Net Weight
ET-100	RT~350℃	400W	200×200×150	100×100×20	3.5Kg
ET-150	RT~350℃	600W	200×200×150	150×150×20	4Kg
ET-200	RT~350℃	800W	200×200×150	200×200×20	5Kg
ET-3020	RT~350℃	1200W	300×200×150	300×200×20	6.5Kg
ET-360	RT~350℃	1500W	360×250×150	360×250×20	8Kg
ET-400	RT~350℃	2000W	400×300×150	400×300×20	10Kg
ET-6040	RT~320℃	3600W	600×400×150	600×400×20	20Kg
ET-6050	RT~320℃	4200W	600×500×150	600×500×20	27Kg

solid hot plate

Type & Customization

Integrated Type (H:150mm)
Split Type (H:65mm)
High Temp Type (RT~450°C)
Ultra High Temp Type (RT~500°C)
800°C Non-metallic Ceramic Heating Plate

Non-standard customization is available. Lead time: 5~7 working days.

Applications

1. LED industry: Aluminum substrate & LED chip soldering & repair
2. Electronic components: preheating, SMD rework, assembly & separation
3. LCD & mobile phone screen repair, cable disassembly, glue removal
4. Laboratory equipment: biochemical experiments, reactions, thermal stress tests
5. Industrial: baking, drying, sealing, dispensing
