High Temperature Heating Stage for Perovskite Solar Cells

High Temperature Hot Plate | Photocatalysis | Electrochemistry | Lab Research aluminium hot plate

Applications

The 600℃ high-temperature heating plate uses high-efficiency heating elements and multi-tube technology to provide more uniform heat transfer and higher efficiency. It is widely used in photocatalysis, electrochemistry, perovskite material heating, chemical experiments, heating & curing, and other laboratory and industrial applications.

It features easy operation, high efficiency, and is an ideal tool for production, processing, and scientific research.

Covered Heating Plate

10-year professional manufacturer of high-precision electric heating plates.

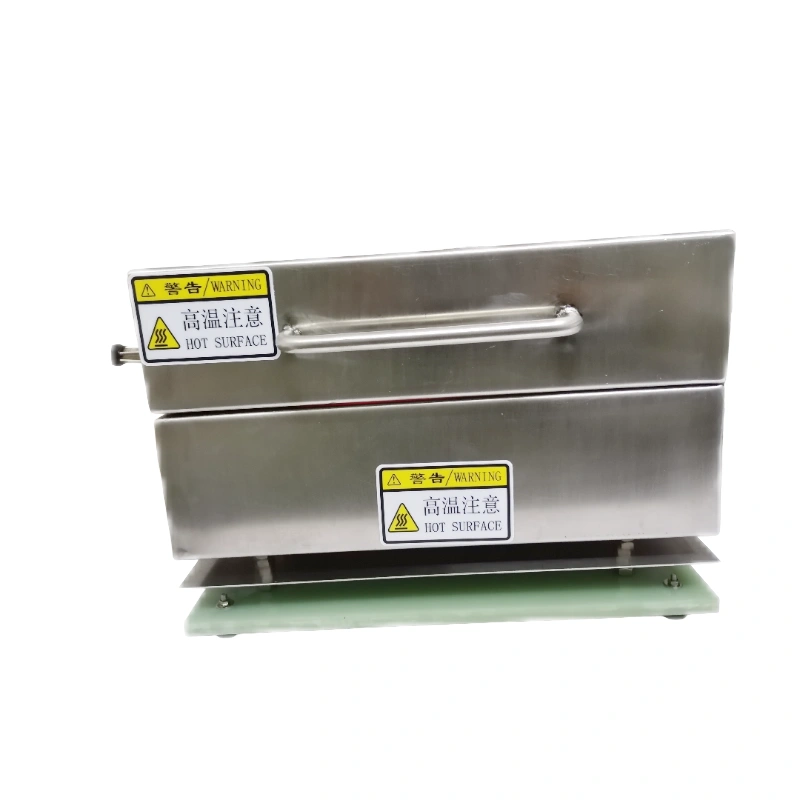

The covered heating plate is equipped with a SUS304 stainless steel cover to prevent scalding and dust contamination when the device is idle. Standard models do not include a cover; custom covers are available upon request. hot plate material

Features of Perovskite Battery Heating Stage

1. Dust-free design: No dust-generating parts (e.g. traditional insulation boards), ensuring a clean working environment.

2. Special alloy heating plate: Corrosion-resistant, no deformation under long-term high temperature.

3. Standard version: Non-programmable control; 30-segment programmable temperature control is optional.

4. Ceramic-coated stainless steel heating surface: Corrosion-resistant & anti-oxidation.

5. Coated stainless steel outer casing: Anti-oxidation & no discoloration.

6. Digital temperature controller: High precision temperature control.

7. Long-life heating elements with high temperature uniformity.

8. Independent circuit control for heating output, improving safety.

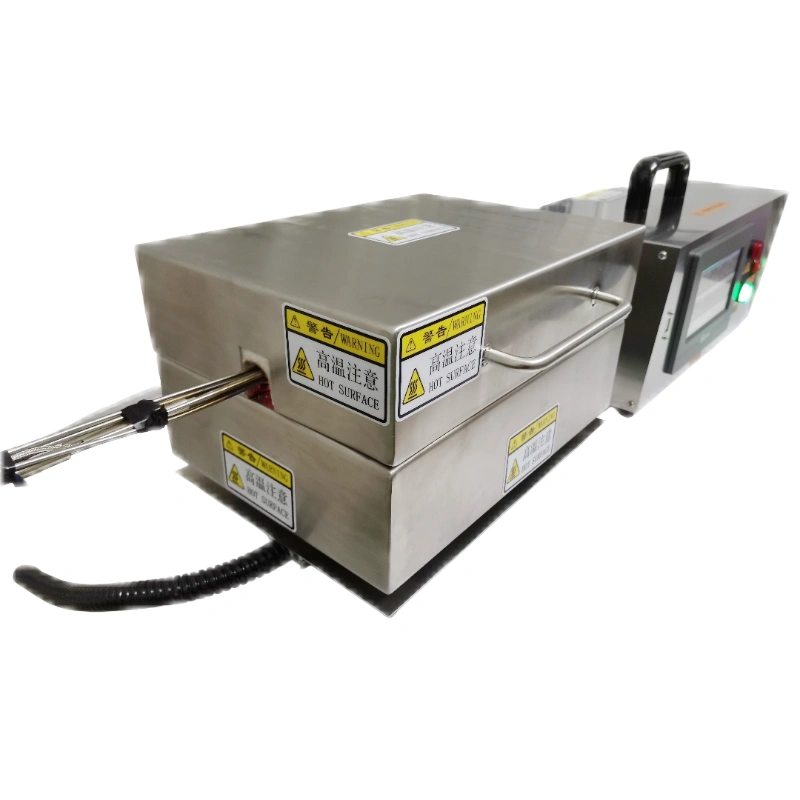

9. Insulated structure: Control box and components are isolated from heat source. hot plate voltage

Technical Specifications

Item	Parameter
Power Supply	Single-phase AC220V±10%, 50Hz
Power	6KW
Temperature Range	Room Temperature ~ 600℃
Temperature Uniformity	±1%
Effective Constant Temp Area	320mm × 320mm
Total Heating Area	360mm × 360mm
Time Setting Range	1min ~ 999.9min
External Dimensions	Approx. 390mm × 390mm × 235mm

Programmable Temperature-Controlled Adhesive Curing Machine

Product Introduction

600℃ high-temperature digital heating stage for laboratory perovskite solar cell research. It provides excellent corrosion resistance and stable performance for scientific research and industrial applications.

We are a professional supplier of perovskite heating stages and spin coaters for solar cell research. Welcome to contact us for more details!

ETOOL – Professional High Temp Heating Stage Manufacturer

High Precision | 600℃ Max | Customizable | Lab & Industrial Use Heating-Plate-Technical-Specifications
