Choose YITUO (ETOOL) – Professional Heating Plate Manufacturer
Professional manufacturer with in-house core material production. Wide product range, customizable specifications, short lead time, high cost-performance ratio. We are direct factory, no trading, reliable quality and service.

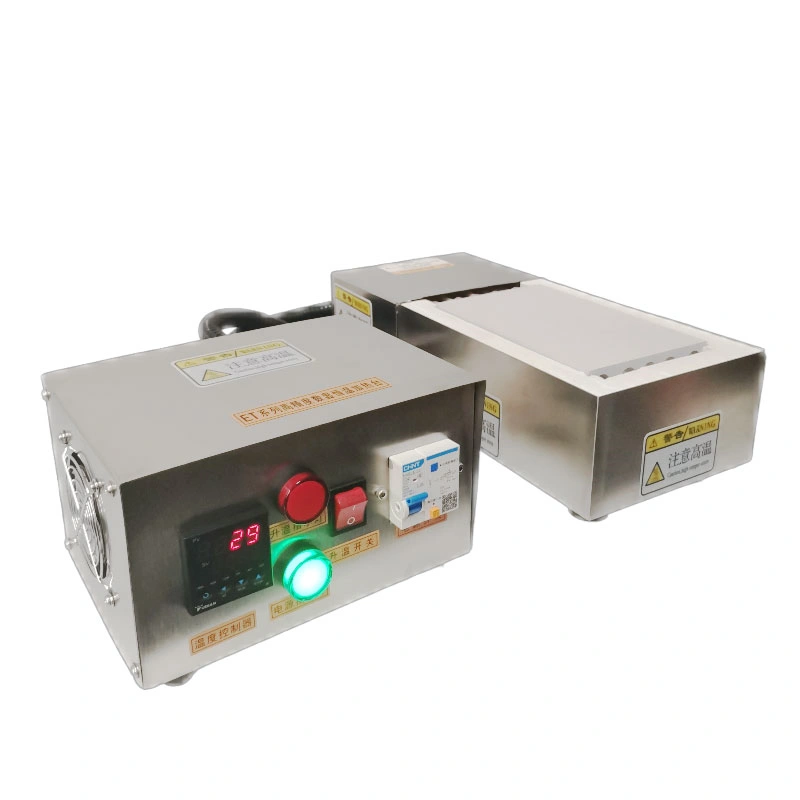

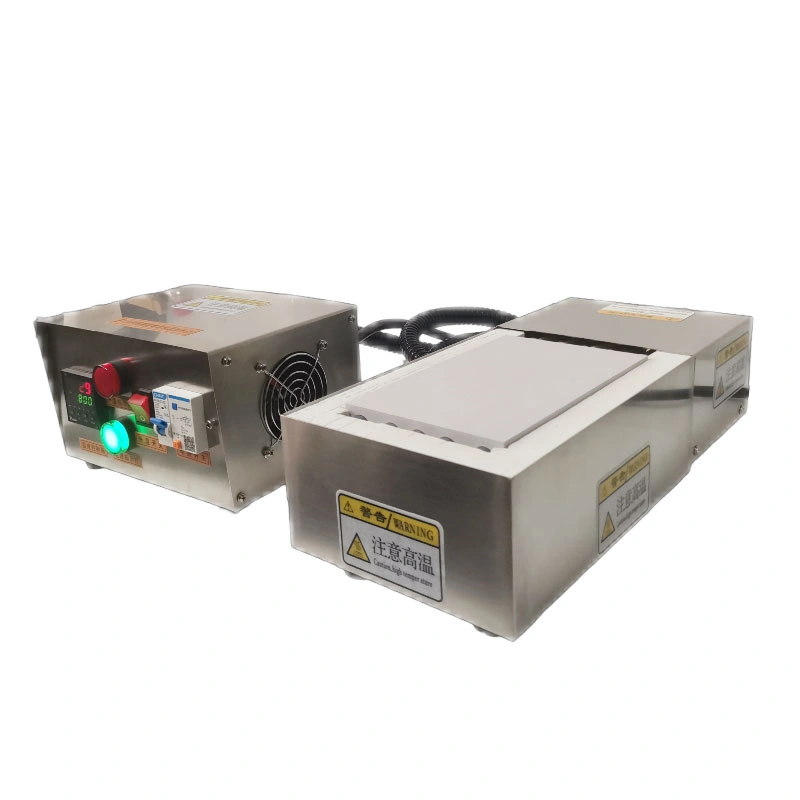

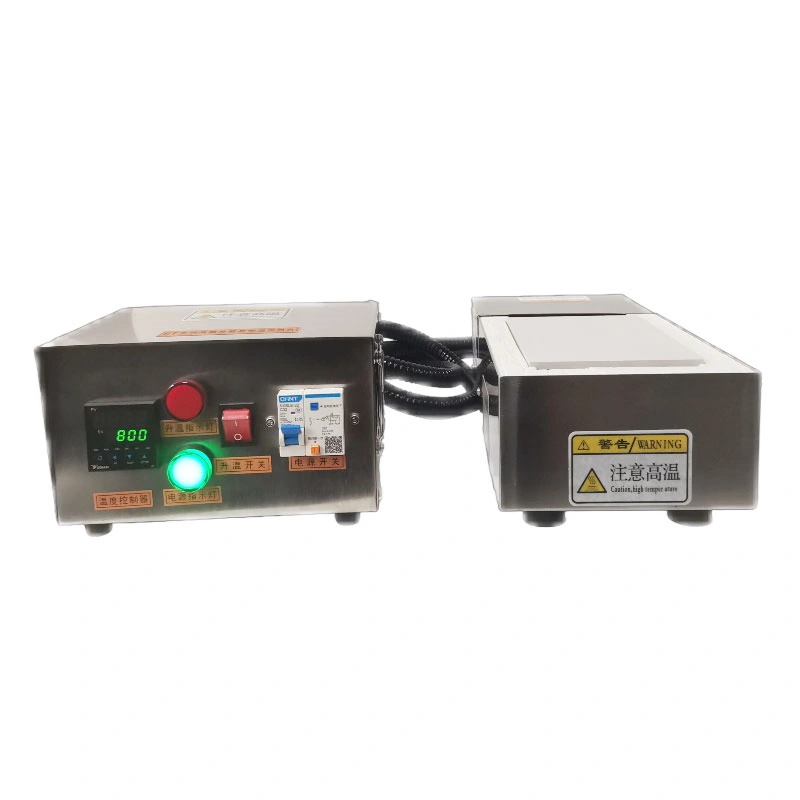

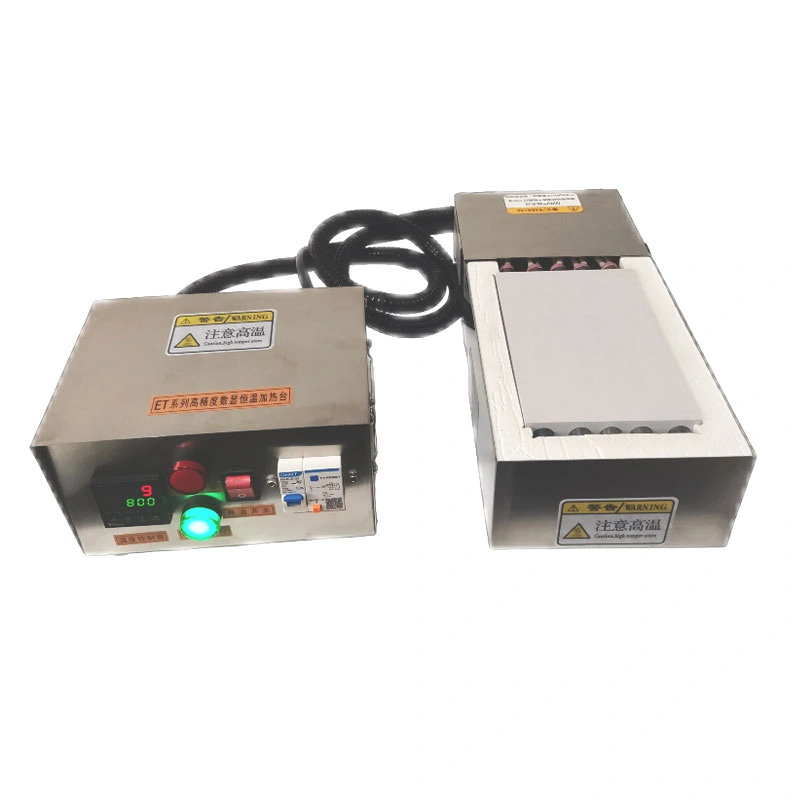

ET-2020 High-Precision Digital Constant Temperature Heating Plate
1. Product Features
- Adopts original Yudian PID intelligent digital temperature controller, high precision, safe and easy operation.
- Equipped with high-quality SSR relay, service life is 100 times that of ordinary contact relays.
- Multi high-quality stainless steel heating tubes, convenient maintenance, low failure rate.
- Whole panel made of aluminum alloy: high thermal conductivity, fast heating, uniform temperature.
- Furnace shell made of imported SUS304 stainless steel: no paint peeling or rust under normal conditions.
2. Technical Specifications
Power: 220V (50Hz) | Temp Range: Room Temp ~ 350℃ | Accuracy: ±1~2%℃

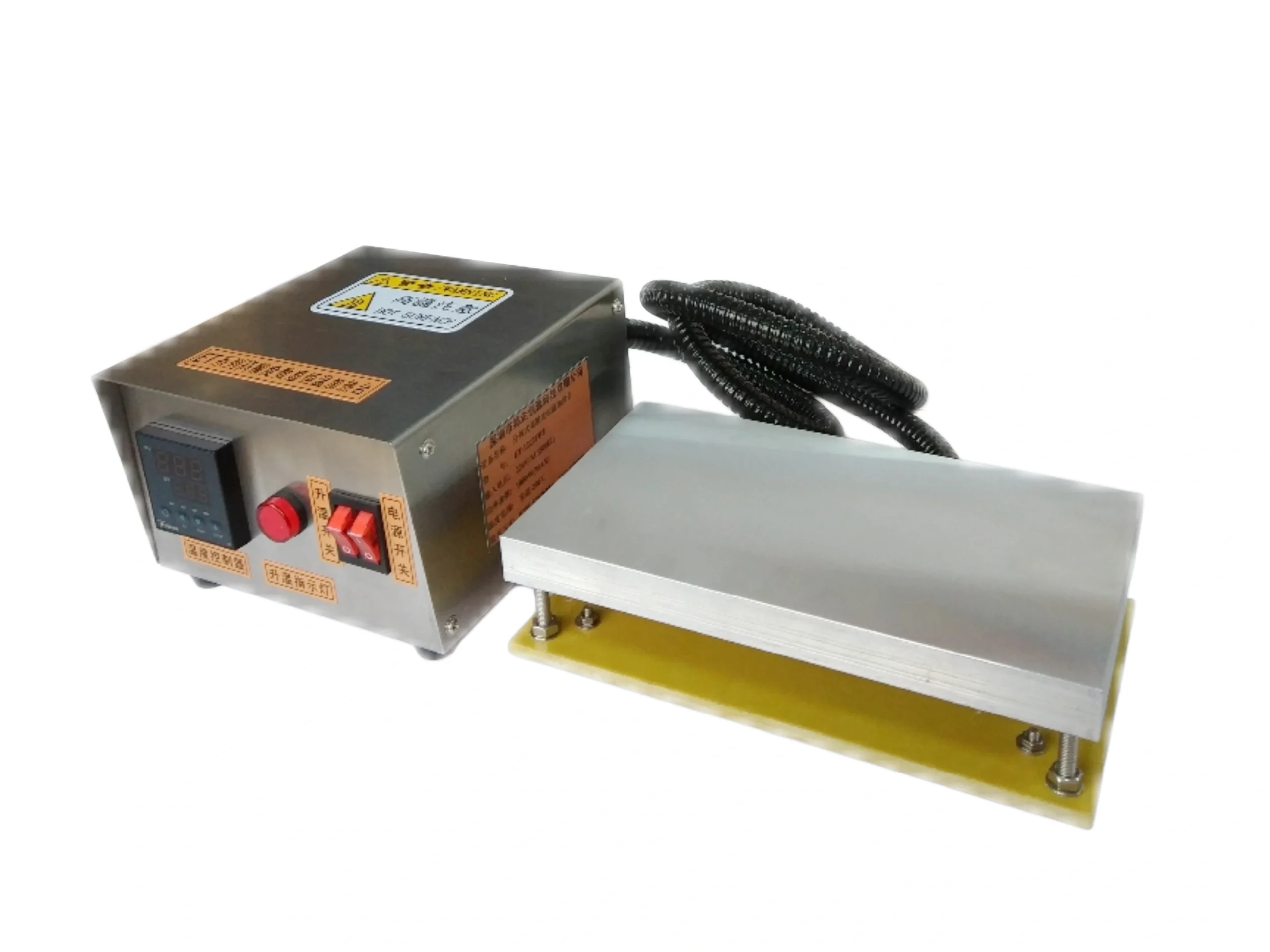

Types: Integrated (H=150mm), Split (H=65mm), High Temp (450℃), Ultra High Temp (500℃)
Model Specification List
| Model | Heating Size (mm) | Machine Size (mm) | Voltage (V) | Power (W) | Temp (℃) | N.W. (kg) |
|---|---|---|---|---|---|---|
| ET-0505 | 50×50×20 | 200×200×150 | 220 | 100 | RT-350 | 3.5 |
| ET-1010 | 100×100×20 | 200×200×150 | 220 | 400 | RT-350 | 3.5 |
| ET-1515 | 150×150×20 | 200×200×150 | 220 | 700 | RT-350 | 4.5 |
| ET-2020 | 200×200×20 | 200×200×150 | 220 | 800 | RT-350 | 4.5 |
| ET-3020 | 300×200×20 | 360×250×150 | 220 | 1200 | RT-350 | 9 |
| ET-3030 | 300×300×20 | 300×300×150 | 220 | 1800 | RT-350 | 8.7 |
| ET-3625 | 360×250×20 | 360×250×150 | 220 | 1500 | RT-350 | 8.7 |
| ET-4020 | 400×200×20 | 400×200×150 | 220 | 1500 | RT-350 | 7.5 |
| ET-4030 | 400×300×20 | 400×300×150 | 220 | 1800 | RT-350 | 12 |
| ET-4040 | 400×400×20 | 400×400×150 | 220 | 2200 | RT-350 | 13 |
| ET-6020 | 600×200×20 | 600×200×150 | 220 | 2000 | RT-350 | 11 |
| ET-6030 | 600×300×20 | 600×300×150 | 220 | 2500 | RT-300 | 16 |
| ET-6040 | 600×400×20 | 600×400×150 | 220 | 3200 | RT-300 | 22 |
| ET-150130 | 1500×1300×35 | 1500×1300×1200 | 220 | 35000 | RT-300 | 400 |
In stock for standard models. Customization available, delivery in 3-7 working days.
3. Operating Instructions
- Connect power, turn on POWER switch. Green POWER indicator lights up.
- Turn on HEAT switch. Red HEAT indicator on = heating; flashing = constant temperature.
- After use: turn off HEAT first. Wait until fully cooled (1 hour recommended), then turn off POWER.
4. Temperature Controller Panel
| PV: Measured Value | <: Shift Key |
| SV: Set Value | ∨: Decrease Key |
| OP1: Output Indicator | ∧: Increase Key |
| AU1: Alarm 1 | Ο: Enter / Confirm |
| AU2: Alarm 2 |
5. Parameter Settings
1. Long press Ο key to enter parameter menu.
| Name | Description | Range | Default |
|---|---|---|---|
| HIA | High Alarm | 0-999 | 999 |
| LOA | Low Alarm | 0-999 | -199 |
| HdA | Deviation High Alarm | 0-999 | 999 |
| LOC | Lock Level | 0-255 | 0 (Do NOT modify) |
2. Set temperature: Use ∧ / ∨ / < keys to adjust SV value.
3. AT Auto-tuning: Long press < 2s → set AT=ON → confirm. The controller will auto-calibrate PID parameters.
6. Safety Precautions
- Use 220VAC with grounded socket and leakage protector.
- Do not open casing or modify wiring without professional guidance.
- Avoid touching heating plate to prevent burns.
- Disconnect power when not in use for long time.
- Do not block air vents.
- Unplug before replacing fuse.
7. Important Notes
- Ensure power cord is firmly connected.
- Initial temperature may overshoot 3-5℃, then stabilize automatically.
- White smoke/odor on first use is normal (residual oil evaporation).
- Slight clicking sound is normal (thermal expansion of heating tube).
- Do not modify internal parameters; factory calibrated for 24h.
YITUO (ETOOL) – Professional Manufacturer of Heating Plates & Constant Temperature Heating Platforms
