Flip-Top Heating Platform with Stainless Steel Cover

ETOOL Professional Manufacturer | Flip-Type | Safety Cover | PID Temperature Control

The heating plate is equipped with a 304 stainless steel cover to prevent scalding and dust. Customizable.

Product Structure & Function

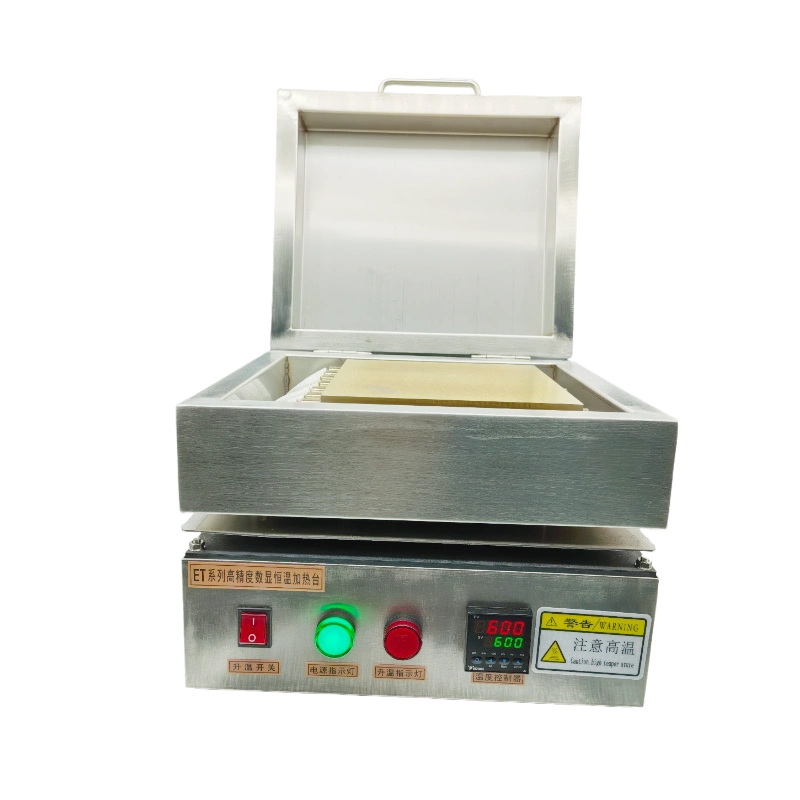

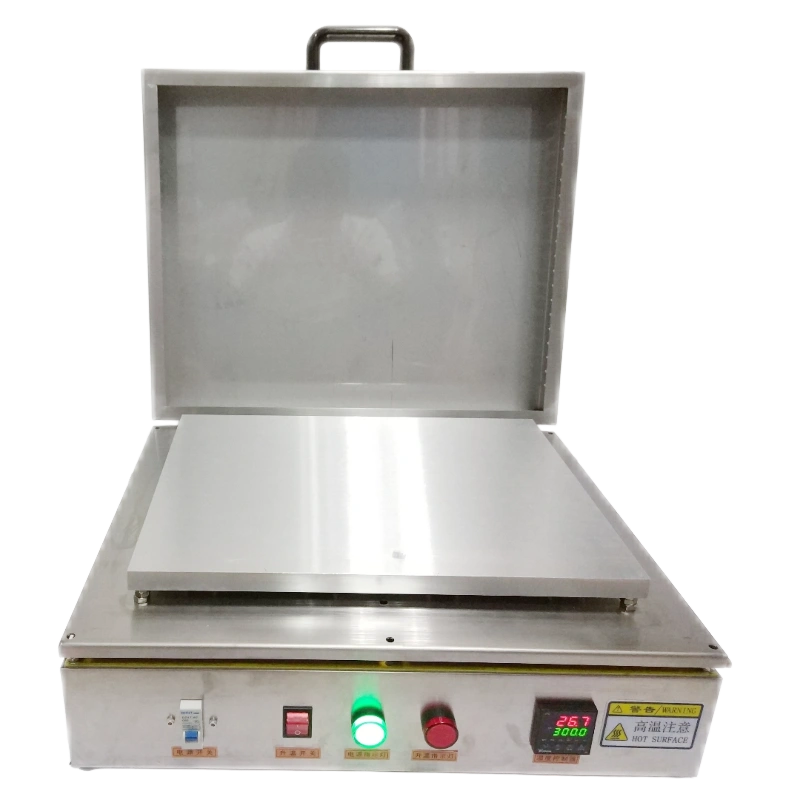

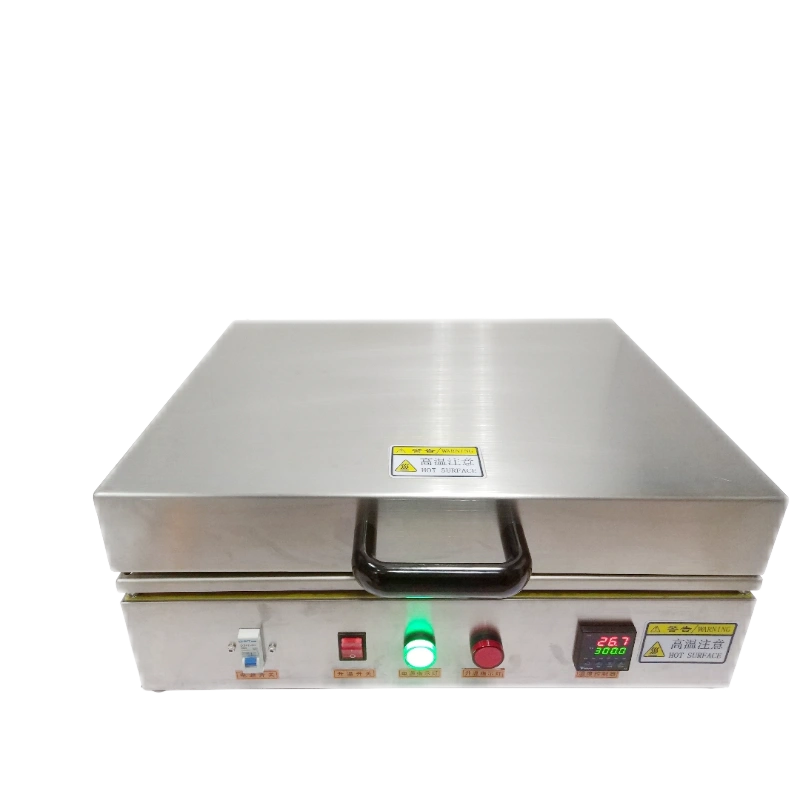

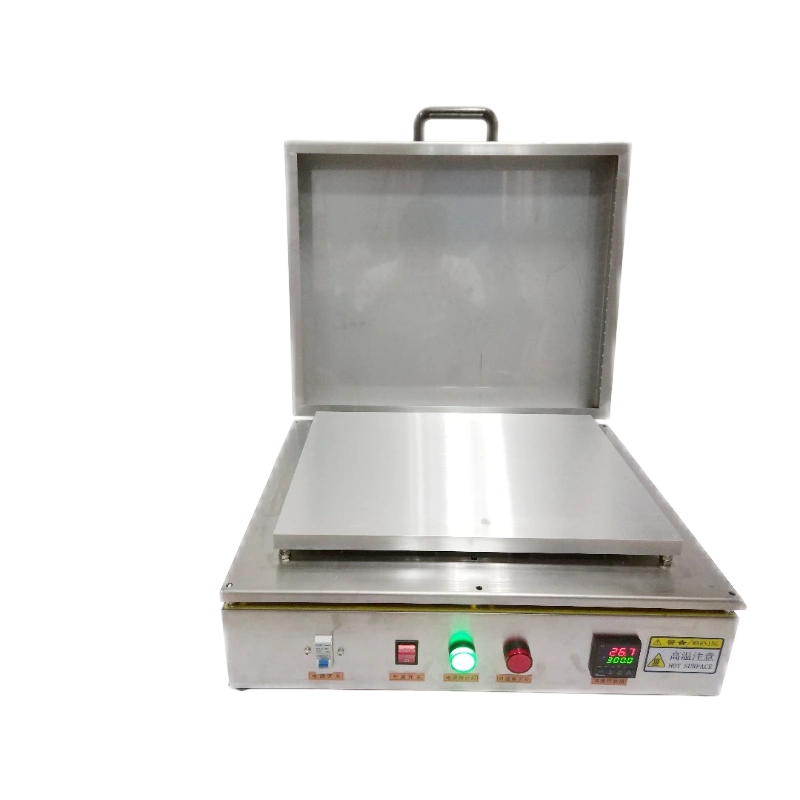

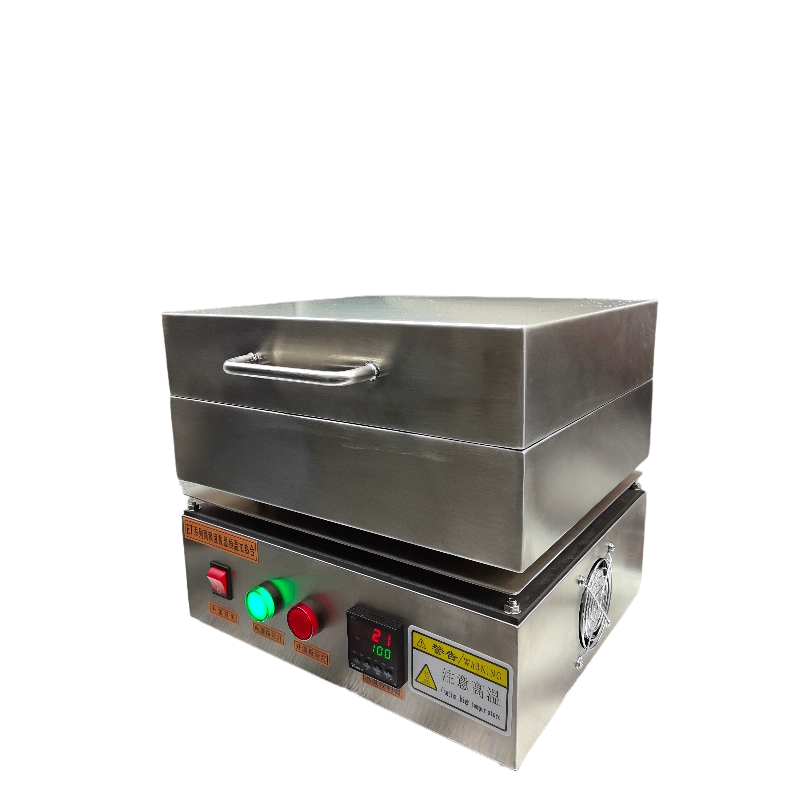

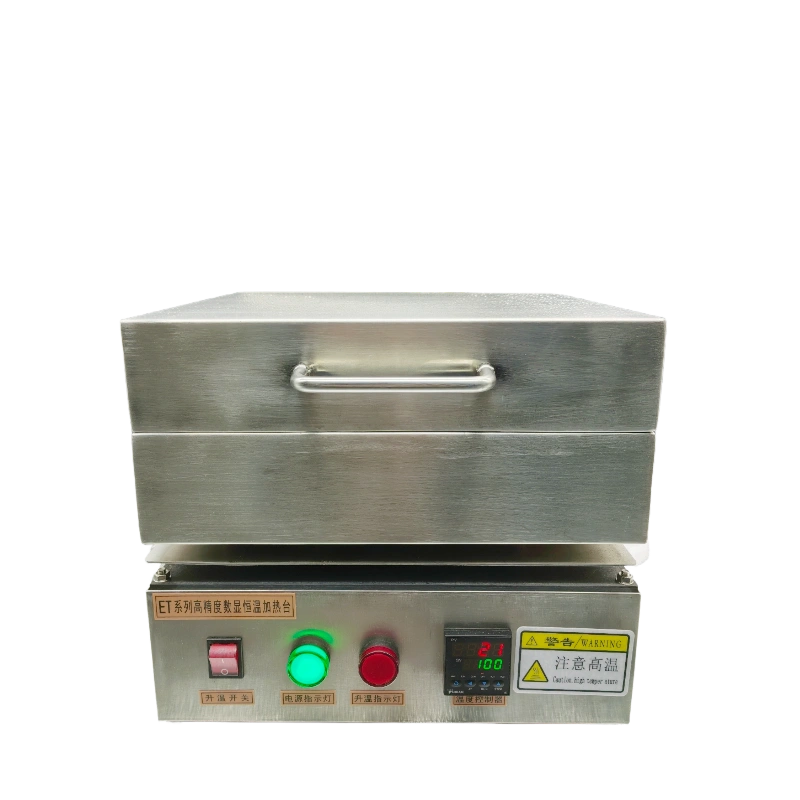

The flip-top heating platform is equipped with a SUS304 stainless steel cover. It prevents scalding when not in use and keeps dust away from the heating surface. Standard stock models do not include a cover; covers can be customized according to customer requirements.

Adopts fast-heating plate heater, safe and efficient for soldering/desoldering SMD components: SOP, SOJ, QFP, PLCC, BGA. PID control ensures accuracy ±1℃, avoiding component damage.

I. Features of Digital Constant Temperature Heating Platform

• Original Yudian PID intelligent digital temperature controller, high precision, safe and easy operation.
• Original high-quality SSR solid state relay, service life is 100 times that of ordinary relays.
• Multiple high-quality pure metal heating tubes, easy maintenance, low failure rate.
• Pure aluminum heating plate: high thermal conductivity, fast heating, uniform temperature.
• Outer shell made of imported SUS304 stainless steel, no rust, no paint peeling.
• Program memory function can be customized.
• With buzzer alarm, high efficiency and safety.
• Can work continuously for a long time.

II. Specifications (ET-200FG)

III. Applications

• Constant temperature heating for glue sealing & dispensing in electronics industry.
• LED aluminum substrate soldering & repair.
• Mold core preheating for mold factories.
• Sample baking, drying, temperature testing for laboratory, medical, environmental, biological, scientific research.

IV. Operating Instructions

1. Connect power, turn on POWER switch. Green power indicator lights up.
2. Turn on HEAT switch. Red indicator ON = heating; Flashing = constant temperature.
3. After use: turn off HEAT first. Do not touch hot surface. Wait 1 hour for cooling, then turn off POWER.

V. Important Notes

• The initial temperature may exceed the set value by 3~5℃, then stabilize automatically to improve uniformity.
• Ensure the power cord is firmly connected to avoid burning the socket.
• White smoke/odor on first use is normal (residual oil evaporates).
• Slight clicking sound is normal (thermal expansion of heating tube).
• Dual fuses are built-in for safety protection.

VI. After-Sale Service

• 12-month free warranty for whole machine (non-human damage); heating tube: 6 months.
• Lifetime paid maintenance after warranty period.

Applications

BGA rework, PCB repair, plating heat test, glue heating, hardware heating, preheating platform.
