Professional Supplier of Electric Heating Plates, Laboratory Hot Plates & Heating Elements
Energy saving over 40% | Excellent temperature uniformity | Standard 350℃, High temp 450℃/500℃, Ceramic 950℃
Features & Advantages
- Imported stainless steel heating element, fast heating, high efficiency, long service life.
- Built-in thermometer for easy PCB temperature detection.
- Closed-loop PID control with sensor, precise and stable temperature.
- Suitable for PCB preheating and uniform heating of components.
- Ideal for LED tube & bulb aluminum substrate soldering.
- Quality guaranteed, 1-year free warranty.

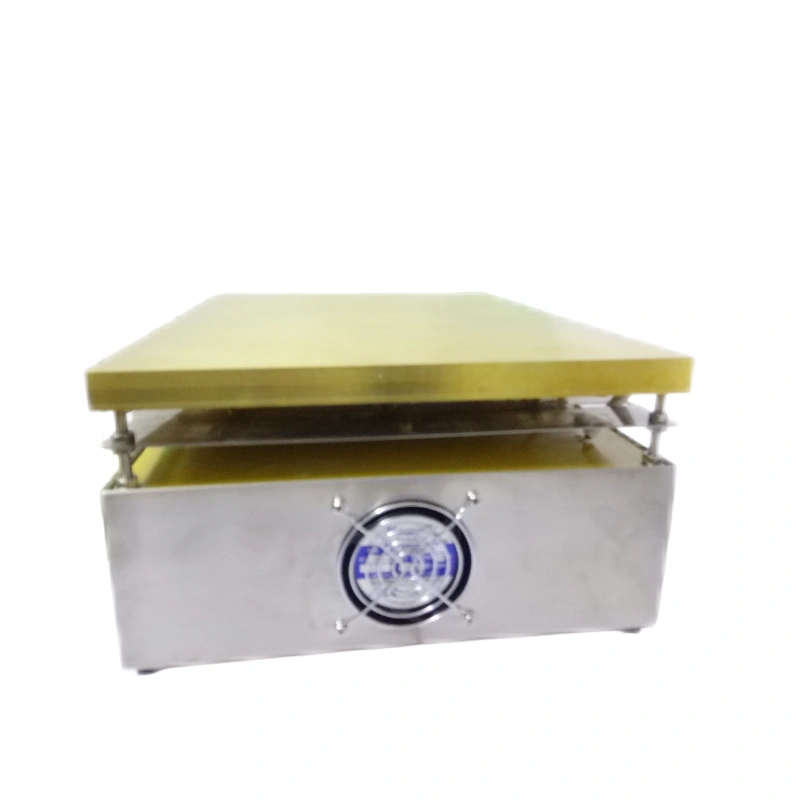

Product Parameters (ET-5050)
Product Name:Heating Platform
Model:ET-5050
Material:Aluminum Plate
Heating Size:500x500x20mm (customizable)
Voltage/Power:AC220V 4KW
Temperature Range:0~400℃
Dimensions:650x500x150mm (customizable)
Model Selection (Customizable)
| Model | Heating Size (mm) | Power (W) | Temp Range | Outer Size (mm) |
|---|---|---|---|---|
| ET-0606 | 60x60x20 | 300 | 0-400℃ | 200x200x150 |
| ET-0808 | 80x80x20 | 400 | 0-400℃ | 200x200x150 |
| ET-1010 | 100x100x20 | 600 | 0-400℃ | 200x200x150 |
| ET-1515 | 150x200x20 | 800 | 0-400℃ | 200x200x150 |
| ET-2020 | 200x200x20 | 1200 | 0-400℃ | 200x200x150 |
| ET-2520 | 250x200x20 | 1500 | 0-400℃ | 250x200x150 |
| ET-3020 | 300x200x20 | 2000 | 0-400℃ | 300x200x150 |
| ET-3625 | 360x250x20 | 2500 | 0-400℃ | 360x250x150 |
| ET-4030 | 400x300x20 | 3000 | 0-400℃ | 400x300x150 |
| ET-6040 | 600x400x20 | 3600 | 0-320℃ | 600x400x150 |
| ET-150130 | 1500x1300x30 | 35000 | 0-280℃ | 1500x1300x1200 |
| ET-138200 | 138x200x28 | 4750 | 0-950℃ | 138x200x100 |
Applications
Our electronic soldering equipment is widely used for SMD components, through-hole components, hardware parts, conventional & special soldering, component desoldering, aging test and more.
Applicable industries: Automotive, Electronics, SMT, PCB assembly, LED lighting, hardware, machinery and other industries requiring special heating & soldering.
YITUO ETOOL – Professional Manufacturer of Electric Heating Plates
Years of experience, complete models, reliable quality. Your best choice for heating solutions!
Welcome to inquire!
