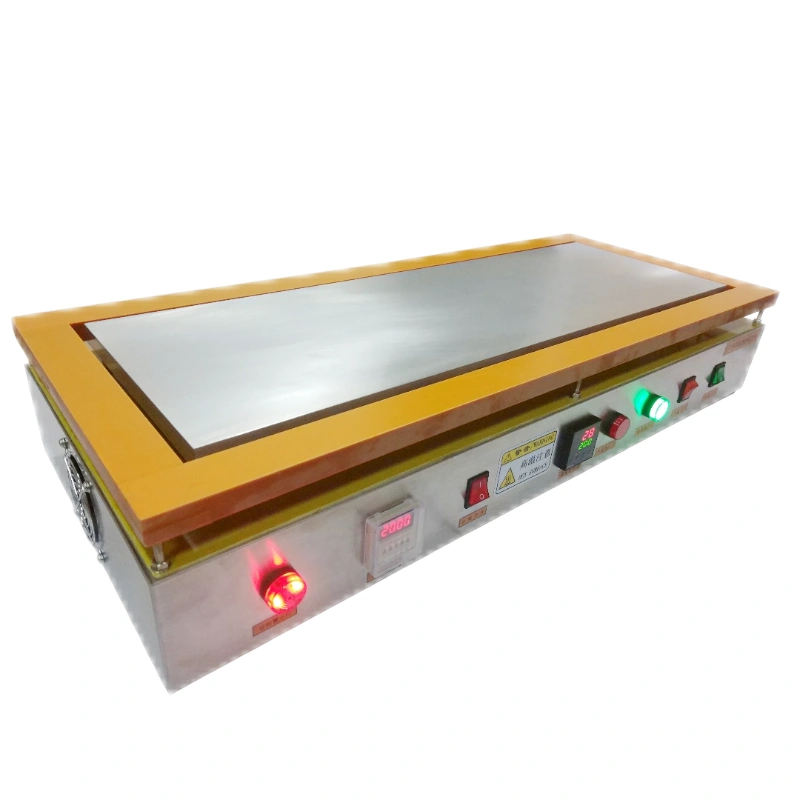

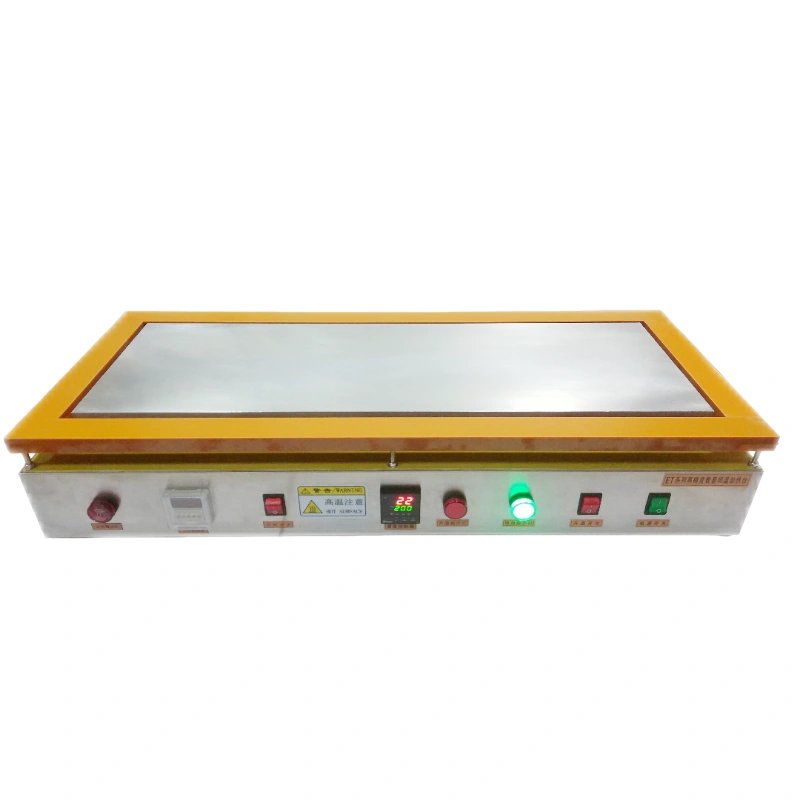

Product Introduction
This product is widely used for sample baking, drying and other temperature tests. It is an essential tool for biology, genetics, medical and health, environmental protection, biochemical laboratories, analysis rooms, education and scientific research.
I. Product Features
- Adopts original Yudian PID intelligent digital temperature controller, high precision, safe and easy operation.
- Equipped with original high-quality Yudian solid state relay (SSR), service life is 100 times that of ordinary contact relays.
- Multi high-quality pure metal heating tubes, convenient maintenance, low failure rate.
- Whole panel made of pure aluminum: high thermal conductivity, fast heating, uniform temperature.
- Furnace shell made of imported SUS304 stainless steel: no paint peeling or rust under normal environment.
II. Technical Specifications
Power: 220V (50Hz) | Temperature Range: Room Temp ~ 350℃ | Control Accuracy: ±1~2%℃
Types: Integrated (H=150mm), Split-type (H=65mm), High Temp (RT~450℃), Ultra High Temp (RT~500℃)
Model & Parameter List
| Model | Heating Size (mm) | Machine Size (mm) | Voltage (V) | Power (W) | Temp (℃) | N.W. (kg) |
|---|---|---|---|---|---|---|
| ET-0505 | 50×50×20 | 200×200×150 | 220 | 100 | RT-350 | 3.5 |
| ET-1010 | 100×100×20 | 200×200×150 | 220 | 400 | RT-350 | 3.5 |
| ET-1515 | 150×150×20 | 200×200×150 | 220 | 700 | RT-350 | 4.5 |
| ET-2020 | 200×200×20 | 200×200×150 | 220 | 800 | RT-350 | 4.5 |
| ET-3020 | 300×200×20 | 360×250×150 | 220 | 1200 | RT-350 | 9 |
| ET-3030 | 300×300×20 | 300×300×150 | 220 | 1800 | RT-350 | 8.7 |
| ET-3625 | 360×250×20 | 360×250×150 | 220 | 1500 | RT-350 | 8.7 |
| ET-4020 | 400×200×20 | 400×200×150 | 220 | 1500 | RT-350 | 7.5 |
| ET-4030 | 400×300×20 | 400×300×150 | 220 | 1800 | RT-350 | 11 |
| ET-4040 | 400×400×20 | 400×400×150 | 220 | 2200 | RT-350 | 13 |
| ET-6020 | 600×200×20 | 600×200×150 | 220 | 2000 | RT-350 | 11 |
| ET-6030 | 600×300×20 | 600×300×150 | 220 | 2500 | RT-300 | 16 |
| ET-6040 | 600×400×20 | 600×400×150 | 220 | 3200 | RT-300 | 22 |
| ET-6050 | 600×500×20 | 600×500×150 | 220 | 3500 | RT-300 | 25 |
All standard models in stock. Customization available, delivery in 3-7 working days.
III. Operation & Maintenance
- Clean the working surface, no water, dirt or residue allowed.
- Place sample bottles or other vessels on the platform.
- Connect power and turn on the power switch (indicator lights up, device standby).
- Adjust temperature to desired value, device starts heating (supervision required).
- After use, turn off the power switch and disconnect power.
- After cooling, clean the surface again as step 1.
IV. Material Options
Cast aluminum, stainless steel, graphite, cast copper, ceramic, etc. (Select material according to working temperature)
V. After-Sales Service
Pre-sales
- Guide customers to select the most suitable heating elements.
- Free design for heating elements and equipment.
- Custom design and manufacturing per customer requirements.
In-sales
- Strict inspection before delivery.
- Arrange shipment as per contract.
After-sales
- Notify logistics information immediately after shipment for tracking.
- Equipment commissioning and trial operation.
- Telephone guidance for operation.
- 24-hour solution support for domestic customers during production.
We are professional manufacturer of micro-control digital hot plates, heating plates, constant temperature heating platforms and laboratory heating equipment. Highly praised by customers for top quality and professional service.
YITUO – Professional Heating Platform Manufacturer
