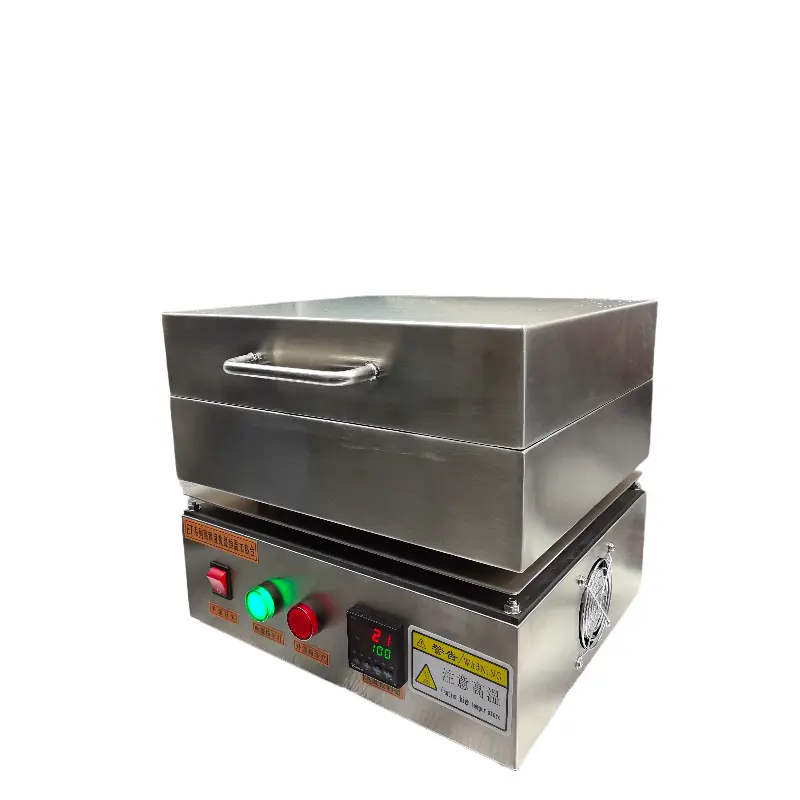

This high-precision high-temperature heating stage adopts metal heating plate with excellent thermal conductivity, which can reach 800℃ within 20 minutes. It is laboratory equipment designed for sample heating and constant temperature control. Its dedicated heating control system can rapidly raise sample temperature in a short time, meanwhile delivering stable thermal environment to guarantee consistent experimental results. Featuring high temperature control accuracy and superior surface temperature uniformity, this equipment is widely applied in fields requiring precise thermal regulation, including perovskite solar cell film fabrication, chemical research, material science and biological research, ideal for labs and scientific research institutions.

Cost-effective high-temperature heating stage among comparable laboratory heating platforms. Adopts closed box design with an external thermal isolation cabinet around the heating surface to minimize heat loss and shorten heating duration. A 26mm gap is reserved between isolation cabinet and heating plate, enabling high-precision intensive heating for flat samples while ensuring safe contact with outer cabinet shell for operators.

1. 1. Intelligent algorithm temperature control with outstanding precision; original Yudian AI PID digital intelligent temperature control system, high accuracy, safe, intuitive and easy operation.
2. 2. High-performance solid state relay (SSR), service life 100 times longer than conventional mechanical contact relays. Fast response, high reliability, long service life, no operating noise, shock & mechanical impact resistant, excellent moisture-proof, mildew-proof and anti-corrosion performance.
3. 3. Built-in high-power heating assembly for rapid temperature rise, multiple premium stainless steel heating tubes with long service life, nickel-chromium alloy heating wires with ultra-high thermal conductivity. Quick & convenient maintenance, ultra-low failure rate.
4. 4. Heating plate made of high thermal conductivity metal with high flatness and excellent temperature uniformity. The full heating surface is manufactured from high-temperature alloy, featuring oxidation resistance, corrosion resistance, sustainable continuous operation under extreme high temperature and outstanding heat resistance.
5. 5. Entire cabinet housing constructed from SUS304 stainless steel, free of paint peeling and rust under standard working environments.

1. 1. Plate Material: High-temperature alloy stainless steel panel
2. 2. Rated Voltage: AC220V
3. 3. Overall Dimension: 200 × 200 × 185 mm
4. 4. Effective Heating Zone: 100 × 100 mm
5. 5. Heating Element: Imported resistance heating wire
6. 6. Temperature Control Range: Ambient ~ 800℃
7. 7. Temperature Control Accuracy: ±1%℃
8. 8. Internal Clearance of Insulation Cover: 27 mm
9. 9. Surface Temperature Uniformity: ±2%℃
10. 10. Timing Range: 1 min ~ 999.9 min
11. 11. Rated Power: 1200 W (Typo correction from original text 1200KW)
12. 12. Control Mode: 30 programmable temperature segments
13. 13. Effective Constant Temperature Area: 100 × 100 mm

Custom Heating Plate Solutions

High-temperature heating plates are specially developed for thermal curing, chemical testing, PCB preheating and rework scenarios, widely adopted for circuit board soldering, heating and preheating processes.

Application Scope of Precision Thermostatic Heating Stage

Extensively used for soldering & rework of LED aluminum substrates and lamp beads, as well as sample baking, drying and various thermal testing across all industrial sectors. Essential laboratory equipment for biology, genetics, pharmaceutical hygiene, environmental protection, biochemistry, analytical chemistry, teaching and scientific research laboratories.
