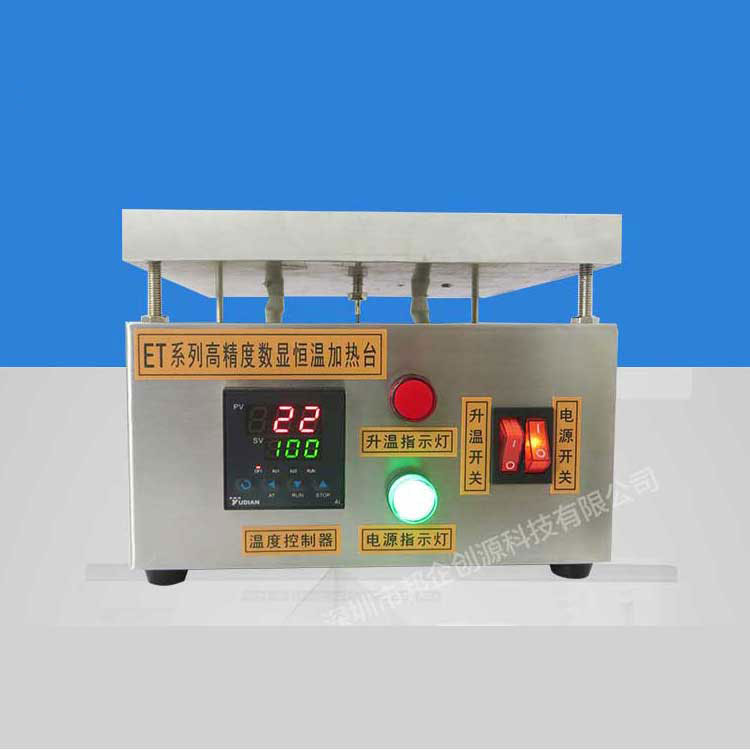

The laboratory hot plate is a constant temperature device used in laboratories for heating, digestion, acid removal and pretreatment of various analytical samples.
We are a professional manufacturer of laboratory heating platforms with fully independent design and production. We are not a trading or drop-shipping company. Direct factory delivery ensures reliable quality and considerate after-sales service.
Brand: ETOOL. Our products feature precise temperature control without temperature overshoot.
Product Description
- Adopts original Yudian PID artificial intelligent digital temperature controller with high precision, simple and safe operation.
- Equipped with high-quality solid-state relays (SSR), service life 100 times longer than ordinary contact relays.
- Built with multiple high-quality stainless steel heating tubes, low failure rate and convenient maintenance.
- The whole panel is made of aluminum material, featuring high thermal conductivity, fast heating and uniform temperature distribution.
- The outer shell is made of SUS304 stainless steel, effectively preventing paint peeling and rusting under conventional laboratory conditions.
- Surface oxidation treatment, high temperature resistance and anti-rust performance. (Teflon coated platforms cannot withstand high temperatures; ordinary stainless steel surfaces are prone to rust.)
- Wear-resistant, long service life, smooth surface and easy to clean.
- Large heating area, suitable for batch sample processing.
- Split control design keeps the controller away from acid mist, ensuring safe and convenient operation.
- K-type thermocouple temperature sensing, fast heating, uniform heat distribution, maximum temperature up to 500℃.
- Dual large LED digital display for clear data reading.
- Over-temperature warning function: the warning light turns red when the platform surface temperature exceeds 50℃ for safer use.
Technical Parameters
| Model | Rated Voltage | Max Power | Temperature Range | Control Accuracy | Heating Size (mm) | Overall Size (mm) | Net Weight |
|---|---|---|---|---|---|---|---|
| ET-100 | 220V/AC 50/60Hz | 400W | Room Temp ~ 350℃ | ±1℃ | 100*100*20 | 200*200*150 | 3.5Kg |
| ET-150 | 220V/AC 50/60Hz | 600W | Room Temp ~ 350℃ | ±1℃ | 150*150*20 | 200*200*150 | 3.5Kg |
| ET-200 | 220V/AC 50/60Hz | 800W | Room Temp ~ 350℃ | ±1℃ | 200*200*20 | 200*200*150 | 4.5Kg |
| ET-3020 | 220V/AC 50/60Hz | 1200W | Room Temp ~ 350℃ | ±1℃ | 300*200*20 | 300*200*150 | 6Kg |
| ET-360 | 220V/AC 50/60Hz | 1500W | Room Temp ~ 350℃ | ±1℃ | 360*250*20 | 360*250*150 | 7.5Kg |
| ET-400 | 220V/AC 50/60Hz | 1800W | Room Temp ~ 350℃ | ±1℃ | 400*300*20 | 400*300*150 | 10Kg |
| ET-6040 | 220V/AC 50/60Hz | 3600W | Room Temp ~ 300℃ | ±1~2℃ | 600*400*20 | 600*400*150 | 20Kg |
Custom non-standard sizes are available. Custom order lead time: 5-7 working days.
Platform Surface Performance Comparison
| Surface Type | Max Temperature | Corrosion Resistance | Cleaning |
|---|---|---|---|
| Glass Ceramic | 400℃ | Rust-proof | Easy to wipe |
| Stainless Steel | 400℃ | Easy to rust | Normal |
| Chemical Ceramic Coating | 300℃ | Rust after coating wear | Easy to clean |
| Teflon Coating | 250℃ | Rust after coating wear | Easy to clean |
Application Fields
Laboratory hot plates are widely used in environmental monitoring, food testing, agriculture, scientific research, universities, disease control, quality inspection and other industries.
- Environmental monitoring: sewage, drinking water, sludge, soil, mine samples, etc.
- Agriculture & Food inspection: milk powder, fish, vegetables, tobacco, fertilizer and agricultural products.
- Quality control: cosmetics, food by-products, industrial products.
- Scientific research: experimental analysis and project development.
- Disease control: biological samples, human hair testing.
- Laboratory constant temperature heating, drying and sample pretreatment.
- Electronic component preheating, welding and maintenance.
We specialize in the R&D and production of laboratory heating equipment. With stable quality and professional technical support, our products have won high recognition from global customers.
