Heating Platform, Fully Independently Manufactured

Special Welding Platform for LED Tubes

We are a genuine manufacturer with fully independent production, never engaged in trading or goods reselling. Factory direct supply guarantees superior quality and reliable after-sales service.

Our products adopt high-precision digital temperature controllers from Xiamen Yudian, a highly renowned and reputable brand in the industry with stable quality. The maximum warranty period can reach 24 months.

Made of pure aluminum material, it features high thermal conductivity, fast heating speed and uniform heating.

Special Welding Platform for LED Tubes

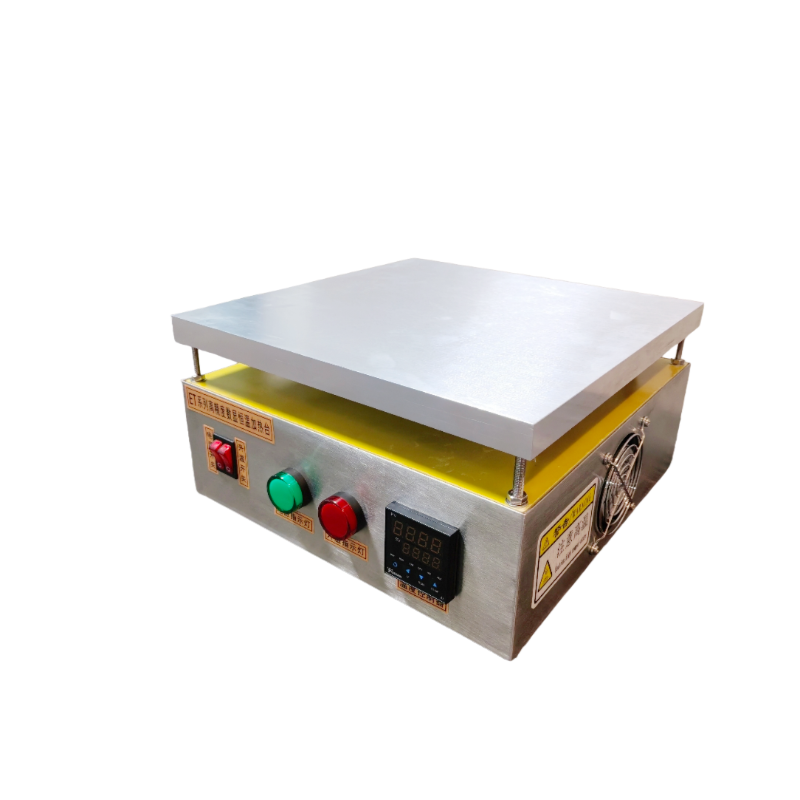

100×100mm LED Tube Dedicated Welding Platform

I. Product Advantages – ETOOL, Professional Heating Plate Manufacturer

• Adopts PID artificial intelligent digital temperature controller with high precision, safe, simple and intuitive operation.
• High-quality Solid State Relay (SSR) equipped, with a service life 100 times longer than traditional contact relays.
• Multiple high-quality stainless steel heating tubes are applied, featuring low failure rate and fast, convenient maintenance.
• The entire panel is made of pure aluminum, delivering high thermal conductivity, rapid heating and evenly distributed temperature.
• The outer shell is fully constructed of imported SUS304 stainless steel. No paint peeling or rusting occurs under normal working conditions.

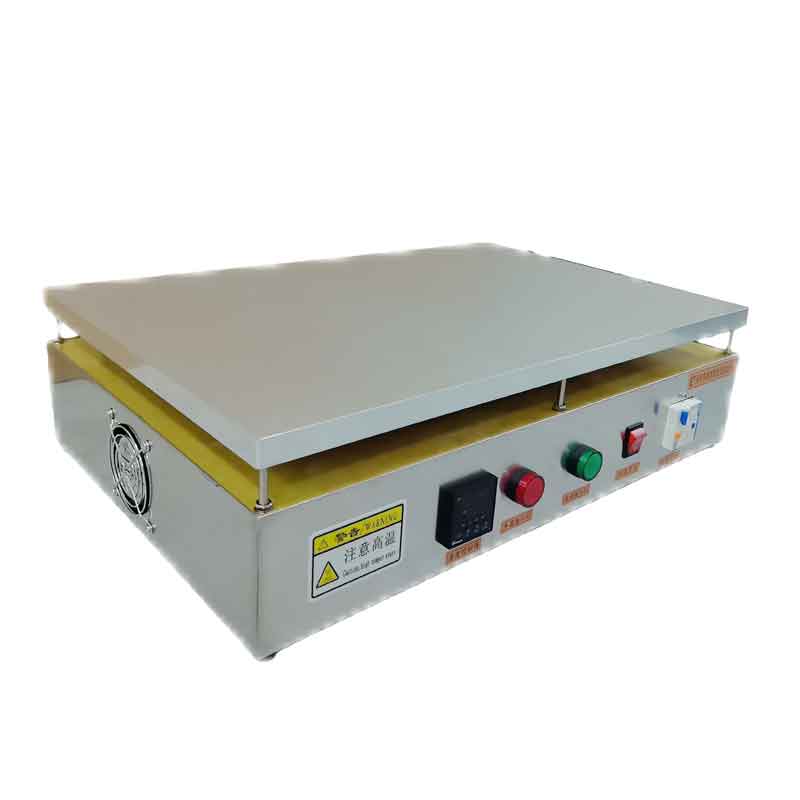

200×200mm Constant Temperature Heating Table

II. Technical Specifications of Constant Temperature Heating Table

Power Supply: 220V (50HZ); Temperature Control Range: Room Temperature ~ 350℃; Control Accuracy: ±1℃

Type: Integrated type (Height: 150mm), Split type (Height: 65mm)

Specifications:

ET-100: Heating Plate Size 100×100×145mm±1, Max Power 400W, Net Weight: 3.5Kg

ET-200: Heating Plate Size 200×200×145mm±1, Max Power 800W, Net Weight: 4.5Kg

ET-360: Heating Plate Size 360×250×145mm±1, Max Power 1500W, Net Weight: 7.5Kg

ET-400: Heating Plate Size 400×300×145mm±1, Max Power 2000W, Net Weight: 10Kg

Custom non-standard sizes are available upon request.

III. Application Scope of Heating Plate

• Constant temperature heating for glue sealing and dispensing in all electronics industries.
• Aluminum substrate welding and maintenance in the LED industry.
• Core preheating for mold factories.
• Industrial constant temperature heating, sample baking, drying and various temperature tests. It is essential equipment for biology, genetics, medical hygiene, environmental protection, biochemical laboratories, analytical rooms and teaching research.

IV. Operation Instructions

1. Connect the power supply and turn on the power switch. The green power indicator lights up steadily, indicating normal power connection.
2. Turn on the heating switch to start operation. The steady red heating indicator means continuous heating; the flashing red light indicates constant temperature status with intermittent heating.
3. After use, turn off the heating switch first to stop heating. The green power light remains on as a high-temperature warning. Do not touch the hot panel. Turn off the power switch only after the platform fully cools down (1 hour recommended).

V. Safety Precautions

1. Rated voltage: 220V AC. Must use a grounded 3-hole socket and leakage protection switch.
2. Non-professionals are prohibited from opening the casing or modifying internal wiring.
3. Never directly touch the heating panel to avoid scalds.
4. Cut off the power supply when not in use for a long time or during absence.
5. Equipped with air cooling heat dissipation system. Do not block the side air inlets.
6. Unplug the power plug before replacing the fuse to prevent electric shock.

VI. Warranty Policy

1. 1-year free warranty for the whole machine under normal use (excluding man-made damage); heating tubes enjoy 6-month warranty.
2. Lifelong paid maintenance service is provided after the warranty period.

We are a professional heating table manufacturer with 100% independent production, no intermediate traders. Factory direct sales ensure stable quality and professional after-sales support.

We promise complete product ranges, stable quality, competitive prices and nationwide delivery. Goods will be delivered after payment.

Professional manufacturing creates superior quality.

Our company specializes in the R&D and production of constant temperature heating tables, LED aluminum substrate and lamp bead welding heating platforms. We have won high recognition from customers with premium quality and thoughtful technical services.

Custom non-standard products are supported, with a delivery cycle of about 5 working days.
