1. Countertop: 30mm thick solid black natural marble slab
2. Cabinet Body: Made of 1.2mm fingerprint-resistant cold-rolled steel plate. The main support frame is cold-rolled steel with partial components connected by bolts. After forming, all steel parts undergo sandblasting and phosphating pretreatment, then coated with electrostatic epoxy powder and high-temperature cured in baking workshop. The final coating thickness reaches 90μm. The coating is firm and durable, featuring excellent comprehensive performance: high temperature resistance, anti-tilting, anti-slip, anti-vibration, moisture-proof, non-porous, anti-expansion cracking, and corrosion resistance against acid, alkali and chemical solvents.
3. Color Scheme: Standard physical board countertop: black (gray optional); cabinet door default color: blue; main cabinet body default: off-white
4. Load Bearing Capacity: Maximum static load 1000kg

For customized laboratory high-temperature benches, low-profile high-temperature stages and all types of laboratory operation workstations, please contact the Lab Equipment Division of Shenzhen Bangqi Chuangyuan Technology.

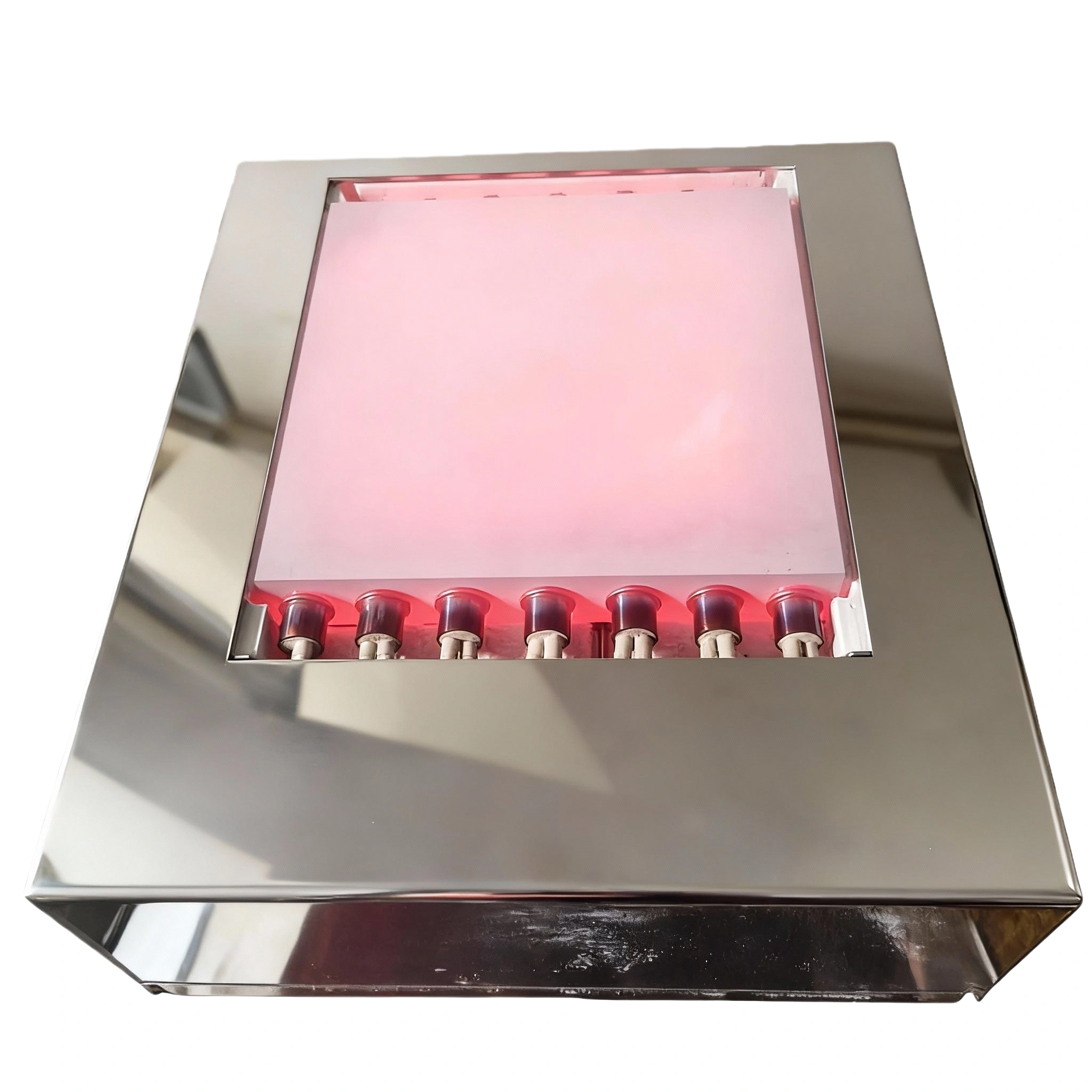

1. Easy operation, practical complete functions, compact body, equipped with 100mm observation window, directly compatible for glove box internal operation.

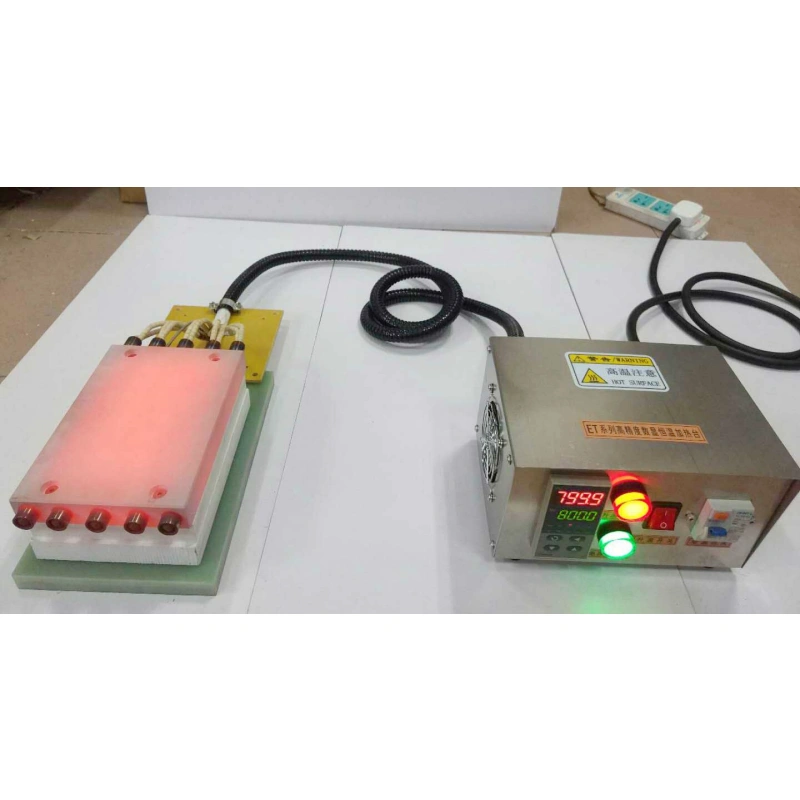

2. Heating panel delivers outstanding temperature uniformity, high temperature control precision, anti-deformation and anti-corrosion. It also has fast heating speed, multi-segment programmable temperature regulation and accurate constant temperature holding.
3. Customizable temperature range, overall dimensions and functional modules according to customer requirements.
4. Vacuum chamber material: stainless steel; top cover: high-grade aluminum alloy.
5. Standard full set accessories: 1 pressure gauge, 1 KF vacuum angle valve, 1 gas inlet valve, 1 vent valve, 1 KF16 gas inlet port, 1 KF25 reserved port, 1 independent temperature control cabinet, 1 corrugated tube.

Suitable for thin film baking and curing processes after surface photoresist coating on semiconductor silicon wafers, glass slides, chips, substrates, ITO conductive glass and other lithography substrates. Widely applied in industrial and mining enterprises, scientific research institutes and universities for thermal aging tests, drying, baking and high-temperature heat treatment in production, research and teaching experiments.

The high-temperature bench is equipped with 18mm finely polished marble countertop. The cabinet frame is welded from 1.0mm high-quality cold-rolled steel plate as the main load-bearing support structure.

Cabinet types include single-door cabinet, single-door single-drawer cabinet, double-door cabinet and double-door double-drawer cabinet. Each cabinet is fitted with movable internal partition for placing experimental instruments. The partition is made of 0.8mm premium cold-rolled steel with load capacity of 150kg per square meter.

The wall-mounted upper cabinet adopts one-piece bottom plate with double-layer hollow structure, which is convenient for internal cleaning while maintaining neat appearance.

The assembled bench countertop bears a total load of 300kg per square meter. All steel surfaces are treated with acid washing, phosphating and plastic spray anti-rust coating. Cabinet doors and drawer panels are all double-layer hollow cold-rolled steel plates with integrally molded steel handles for easy operation. Equipped with joint-venture three-section heavy-duty slide rails and height-adjustable steel foot pads with adjustment range 30–50mm.

Shenzhen Bangqi Chuangyuan Technology Co., Ltd. has 15 years of professional design and manufacturing experience in precision photoresist bake machines, programmable bake ovens, nitrogen-filled programmable hot plates and full vacuum baking equipment. We possess full industrial chain R&D and production capacity covering electrical design, software development, mechanical design, precision machining and equipment commissioning, with more than 10 sets of large-scale and precision processing equipment in factory.

We independently design, produce and sell full series industrial semiconductor coating and thermal processing equipment, mainly including spin coaters, developers, photoresist bake hot plates, dip coaters, spray coaters, film applicators, slit coating machines and other auxiliary machines. All equipment is used for thin film drying and curing after surface coating on silicon wafers, glass slides and ITO conductive glass. Photoresist bake ovens are generally matched with spin coaters to cure thin films after spin coating process.

In May 2022, through internal resource integration, the industrial semiconductor equipment division originally developed within Shenzhen Bangqi Chuangyuan Technology was spun off to establish Shenzhen Qichuang Intelligent Equipment Co., Ltd. The two companies share the unified ETOOL brand while independently operating differentiated product lines.

The company has established stable long-term cooperative partnerships with numerous domestic and foreign enterprises, gradually forming strong technical and brand advantages. Our key long-term partners include Tsinghua University, Peking University, Foxconn, Samsung, Hitachi Suzhou, Midea Electric, Hisense and other well-known large groups.

We attach great importance to R&D and adhere to the development path of independent innovation. Our professional R&D team consists of more than 10 engineers, equipped with complete sets of R&D, testing and mass production equipment. We also carry out joint research cooperation with famous universities and research institutes. A complete quality control and after-sales service system is built; taking high technology and high quality as the standard, we provide comprehensive full-process technical support and maintenance service before, during and after sales for all customers.

Corporate quality policy: Take customer requirements as the standard, take market demand as the guidance. We continuously strengthen the comprehensive internal competitiveness of the enterprise, seek development amid market competition and seize opportunities amid industrial challenges.
