This heating stage reaches a maximum working temperature of 600°C; heating from ambient temperature to 600°C takes no more than 20 minutes. High-grade insulation between the heating plate and main equipment chassis prevents main unit damage caused by extreme high temperatures. Equipped with a high-performance programmable process controller supporting heating, holding and cooling phases (max. 5 segments). Each programmable phase can be set up to 5 hours and 59 minutes long.

• ✅ Insulated cover minimizes heat loss and shortens heating time; a 26mm gap is reserved between sealing cover and heating plate, enabling high-intensity heating while guaranteeing ultra-precise temperature control.
• ✅ Full stainless steel outer housing; temperature controller connected via two detachable connecting cables.

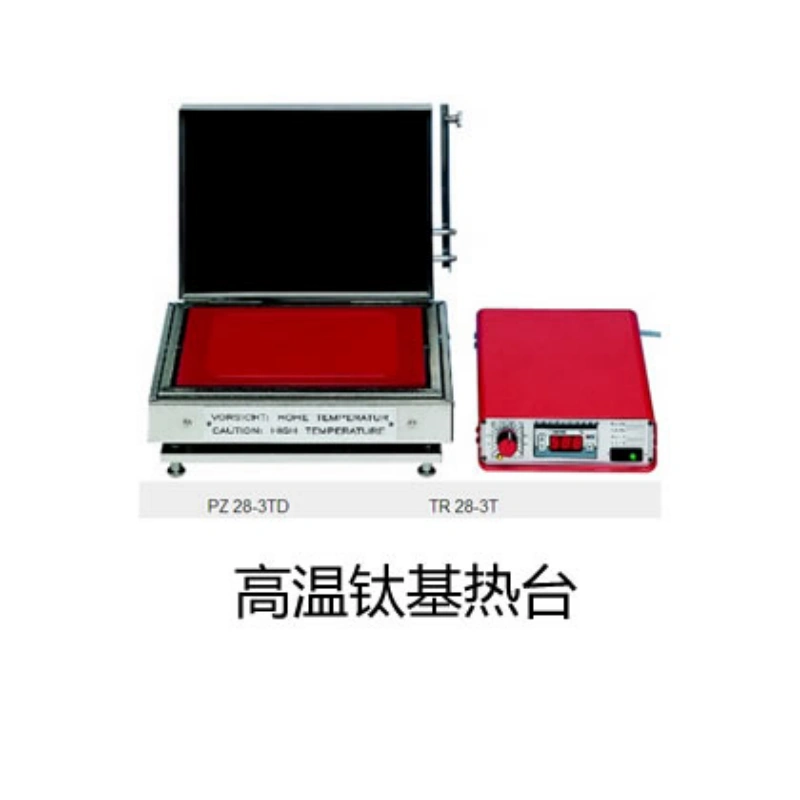

• ✅ Model TR28-3T programmable PID controller supports customized multi-segment programs including heating, temperature holding and cooling stages.
• ✅ Overall dimension: approx. 200 × 65 × 280 mm; temperature range: 20 ~ 600°C; power supply: 220~240V / 50-60Hz.
• ✅ Control algorithm: PID; digital display height: 14 mm; standard cable length: 1.8 m.

1. Precision heating surface made of high thermal conductivity aluminum alloy with hard anodized coating for smooth surface and easy maintenance. Long-duration electronic heating design delivers consistent temperature even at plate corners and edges.
2. Microprocessor temperature controller supports 0.1°C resolution preset below 99°C and 1°C resolution preset above 100°C. Preset temperature values are retained after power-off. Dual-finger lock temperature setting prevents accidental parameter modification. After releasing keys, real-time temperature is continuously shown on a 14mm tall digital readout.
3. Built-in overheat protection circuit to safeguard the hot plate and samples from dangerous excessive temperatures.
4. Front panel fitted with transparent acrylic baffle to avoid accidental setting changes.
5. All models equipped with a 3-pin low-voltage diode output connector compatible with two optional peripherals:
   1. Contact temperature probe: directly measure sample temperature for closed-loop temperature regulation.
   2. Programmable timer switch: activate heating/cooling according to pre-set time intervals.

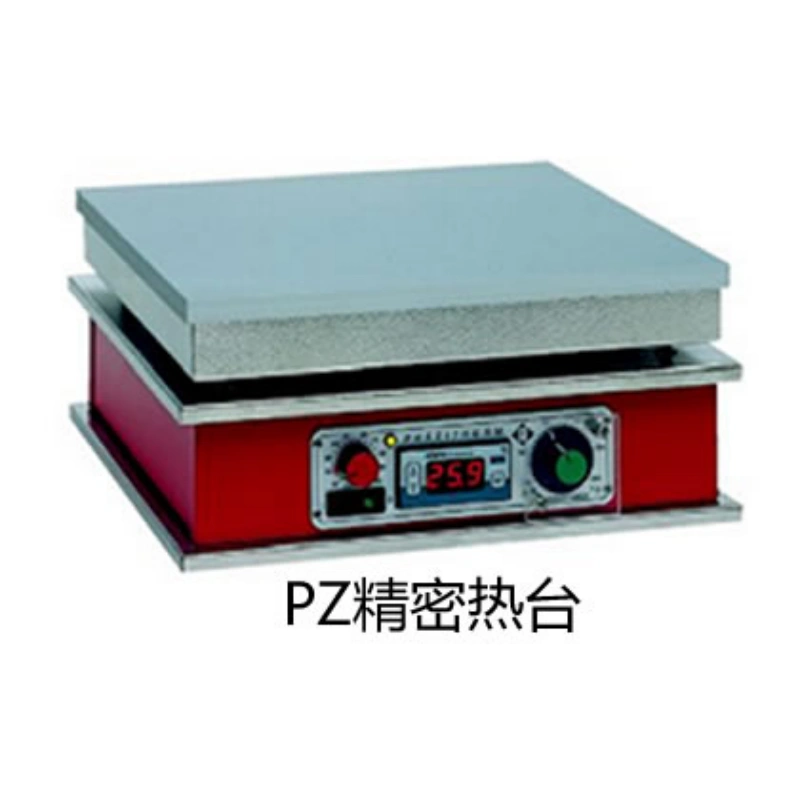

6. Model PZ 60 (long plate variant) features five threaded mounting holes for 12mm support rods with 125mm hole spacing.

Asymmetric fast-response heating architecture paired with high-sensitivity thermal sensors and adaptive power output regulation delivers outstanding temperature uniformity and ultra-precise control across the entire heating surface.

Optional surface coatings: Black hard anodized aluminum plate or PTFE non-stick coated heating plate, extra cost applies for customized coatings.
