Heating Plate Applications in Automotive Manufacturing Industry
Precise constant temperature heating covers core production links of new energy vehicles, passenger cars and commercial vehicles, including auto electronic packaging, carbon fiber structural part curing, plastic interior annealing and battery component thermal treatment. Our heating plates feature ultra-even temperature field, wide adjustable temperature range, anti-static and high load-bearing performance. They effectively improve bonding reliability, eliminate part residual stress, stabilize component dimensional tolerance and lift finished vehicle component pass rate and long-term driving safety.
|

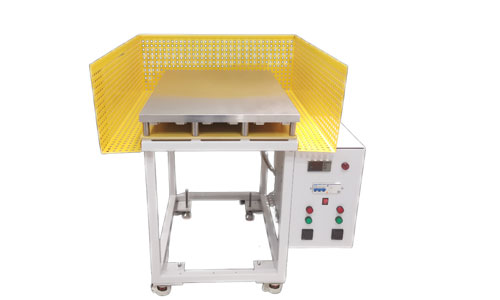

Automotive ECU Control Module Epoxy Curing Heating Plate
Working Condition: Constant temperature curing of high-temperature resistant epoxy encapsulant for engine and chassis ECU circuit boards
Configuration: 550×400mm anti-static aluminum alloy plate, 90–140℃, uniformity ±0.5℃, Class 1000 dust-free surface
Application Results: Void-free full encapsulation, PCB protection against water and vibration; ECU failure rate under road cycling test dropped from 5.3% to 0.7%
|
New Energy Vehicle Carbon Fiber Body Part Curing Station
Working Condition: Segmented thermal curing for carbon fiber epoxy prepreg used in EV door frames and battery protection covers
Configuration: 800×600mm thick cast aluminum heating plate, staged 85℃→125℃→155℃, full plate uniformity ±0.7℃, pressure-resistant flat plane
Application Results: No interlayer delamination, composite tensile strength increased by 24%; lightweight body dimensional tolerance controlled within ±0.05mm
|
|
Automotive Plastic Interior Trim Stress Relief Annealing Plate
Working Condition: Low-temperature annealing to release injection residual stress for PP/ABS dashboard and door panel parts
Configuration: 700×500mm hard anodized alloy plate, 50–110℃, uniformity ±0.6℃, scratch-resistant matte finish
Application Results: High-low temperature test warpage reduced by 86%, interior assembly gap inconsistency defect rate cut by 72%
|
EV Lithium Battery Pole Piece & Seal Glue Baking Platform
Working Condition: Thermal baking curing for battery module sealing glue and tab insulation adhesive
Configuration: 600×600mm multi-zone heating plate, 60–120℃ segmented control, surface low outgassing & corrosion resistant
Application Results: Complete waterproof sealing, battery pack insulation resistance stable above 1000MΩ; module aging leakage risk eliminated
|
